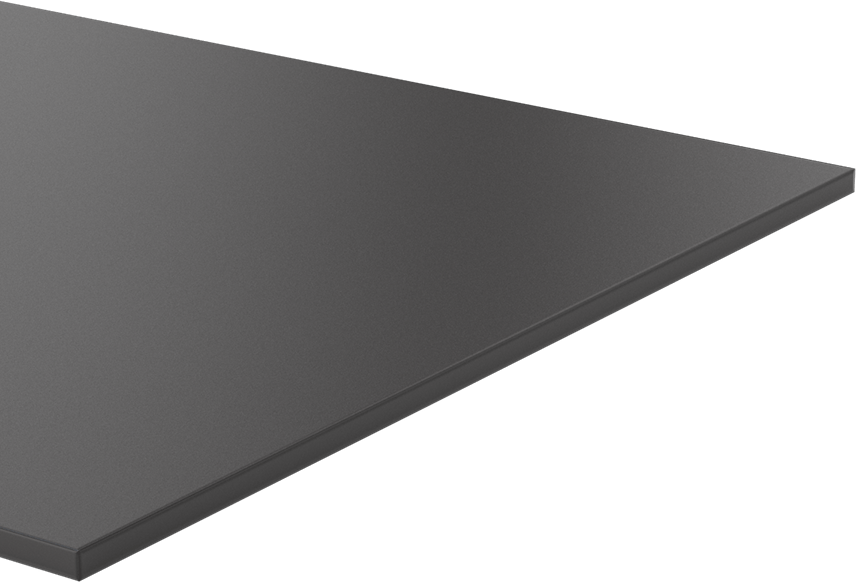

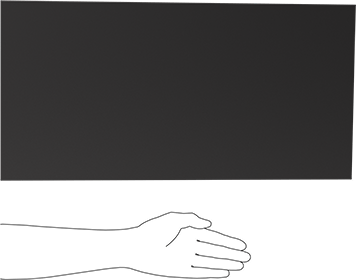

Black Delrin® Acetal Resin Sheet
1/4" Thick, 12" Wide x 24" Length
Thickness | 1/4" |
Thickness Tolerance | 0" to 0.025" |
Color | Black |
Width | 12" |
Length | 24" |
Fabrication | Extruded |
Temperature | -20° F to 180° F |
Tensile Strength | 10,000 psi to 11,000 psi |
Impact Strength | 1 ft·lbf/in to 1.5 ft·lbf/in |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetone, Diesel Fuel, Fuel Oil, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Vegetable Oil, Water |
Moderate | Coolant, Mineral Oil |
Not Rated | Gasoline, Heating Oil, Hydraulic Fluid, Lacquer Solvents, Synthetic Oil |
Not Recommended | Acetic Acid (White Vinegar), Chlorine, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid |
Clarity | Opaque |
Coefficient of Friction | 0.25 |
Coefficient of Thermal Expansion | 4.7 × 10^-5 /°F to 6.8 × 10^-5 /°F |
Comparable To | Delrin® Acetal Resin |
Flexibility | Semi-Rigid |
Hardness Rating | Hard |
Material | Delrin® Acetal |
Performance | Extra High Strength, Highly Electrically Insulating, Moisture Resistant, Thermally Stable, Ultra Low Friction, Ultra Machinable, Wear Resistant |
Density | 0.051 lb/in³ |
Dielectric Strength | 450 V/mil to 500 V/mil |
Flexural Modulus | 400,000 psi to 450,000 psi |
For Use Outdoors | No |
For Use With | Acetone, Coolant, Diesel Fuel, Fuel Oil, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Vegetable Oil, Water |
Hardness | Rockwell R120 to Rockwell R122 |
Shape | Sheet |
Specifications Met | ASTM D6100 |
Texture | Smooth |
Tolerance Rating | Oversized |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.25% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392099.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
These sheets resist expanding when exposed to heat and moisture, so they can be easily machined to close tolerances. They also have a naturally slippery, wear-resistant surface. Use them to make precision gears, bushings, and bearings. Delrin® acetal resin, also known as acetal homopolymer, is stronger and stiffer than acetal copolymer.

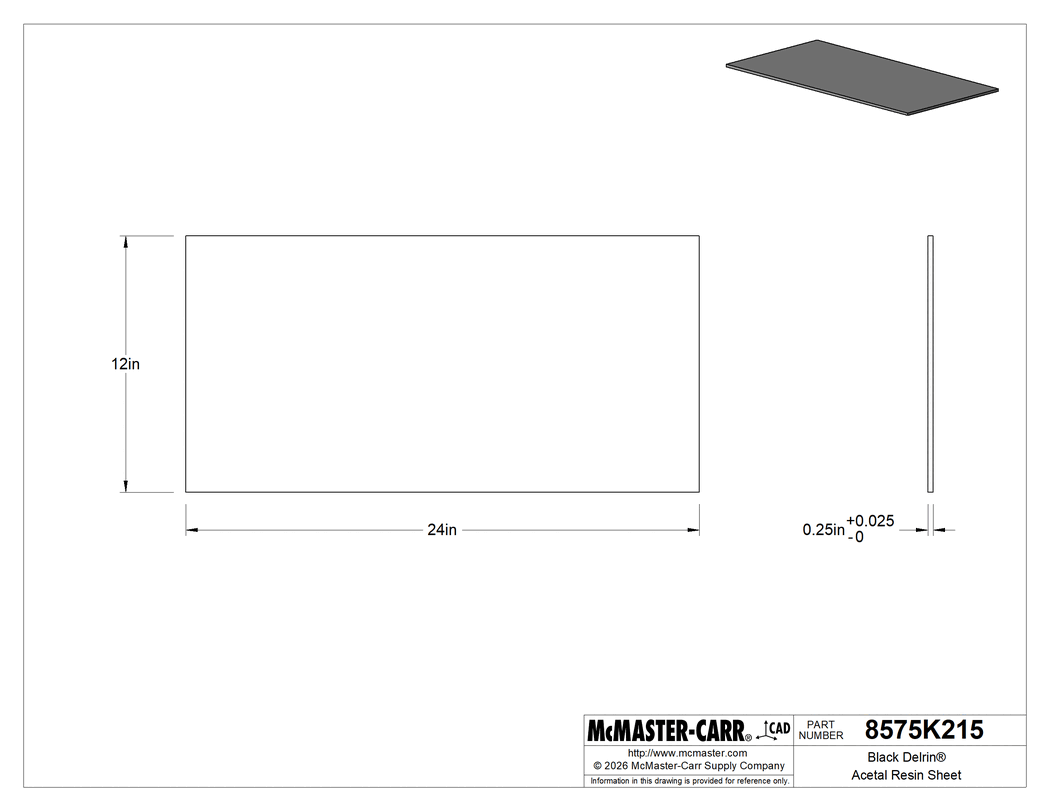

The information in this 3-D model is provided for reference only.
