    Halogen-Free Garolite G-10 Tube

    1/4" Wall Thickness, 1" OD, 1/2" ID, 48" Long

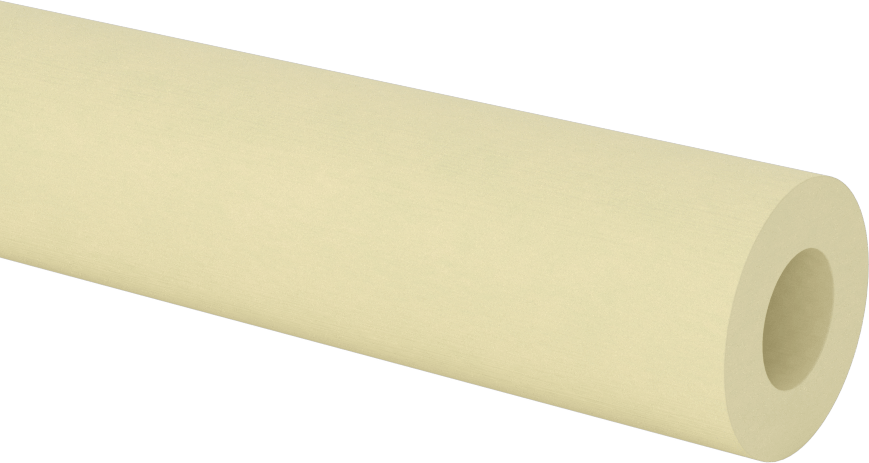

    Image of Product. Front orientation. Halogen-Free Garolite G-10 Tube, 1/4" Wall Thickness, 1" OD, 1/2" ID, 48" Long.

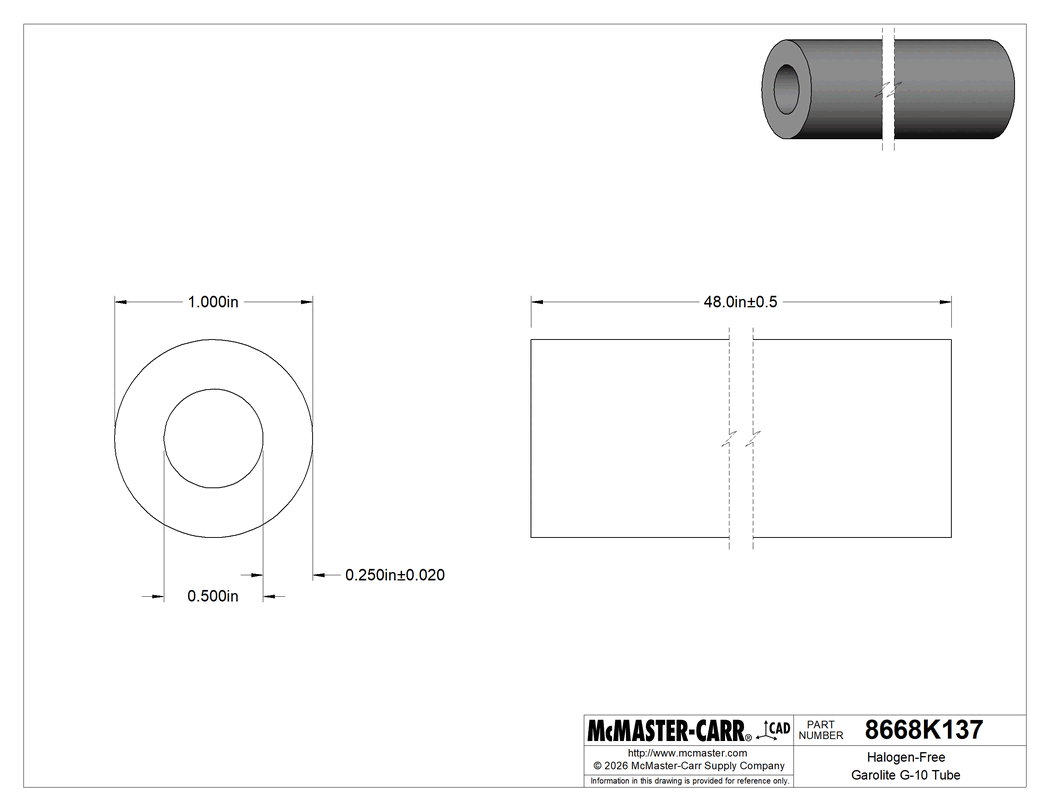

    Technical Drawing of Halogen-Free Garolite G-10 Tube, 1/4" Wall Thickness, 1" OD, 1/2" ID, 48" Long.
    Image of Product. Side1 orientation. Contains SizingReference. Halogen-Free Garolite G-10 Tube, 1/4" Wall Thickness, 1" OD, 1/2" ID, 48" Long.
    2-D PDF
    0000000 each
    8668K137
    In stock
    8668K137
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Wall Thickness

    1/4"

    Wall Thickness Tolerance

    -0.02" to 0.02"

    Color

    Yellow

    Length

    48"

    Length Tolerance

    -1/2" to 1/2"

    OD

    1"

    OD Minimum Tolerance

    Not Rated

    OD Maximum Tolerance

    Not Rated

    ID

    1/2"

    ID Minimum Tolerance

    Not Rated

    ID Maximum Tolerance

    Not Rated

    Temperature

    Minimum

    Not Rated

    Maximum

    265° F

    Tensile Strength

    32,000 psi to 40,000 psi

    Impact Strength

    5.5 ft·lbf/in to 9.5 ft·lbf/in

    Hardness

    Rockwell M100

    Hardness Rating

    Extra Hard

    For Use Outdoors

    No

    Military Specification

    MIL-I-24768/2

    Flammability Rating

    UL 94 HB

    Clarity

    Opaque

    Compressive Strength Range

    35,000 psi to 68,000 psi

    Dielectric Strength

    350 V/mil

    Flexibility

    Rigid

    Flexural Strength

    45,000 psi to 55,000 psi

    Material

    Garolite

    Material Grade

    Garolite G-10

    Performance

    Extreme Strength, High Strength, High Temperature, Highly Absorbent, Highly Electrically Insulating, Moisture Resistant, Ultra Impact Resistant, Zero Halogen

    Shape

    Round Tube

    Density

    0.069 lb/in³

    Reinforcement Material

    Fiberglass Fabric

    Resin Material

    Epoxy

    Straightness Tolerance

    Not Rated

    Texture

    Smooth

    Tolerance Rating

    Standard

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Water Absorption

    0.15%

    Country of Origin

    Denmark

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    391729.0090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Additional Specifications

    SDS

    These Garolite G-10 tubes can be used in place of Garolite G-10/FR4 tubes for applications that are sensitive to halogen, such as in nuclear plants. They're strong, machinable, and electrically insulating. Made of an epoxy resin with fiberglass fabric reinforcement, Garolite G-10 is also called epoxy-grade industrial laminate and phenolic.
