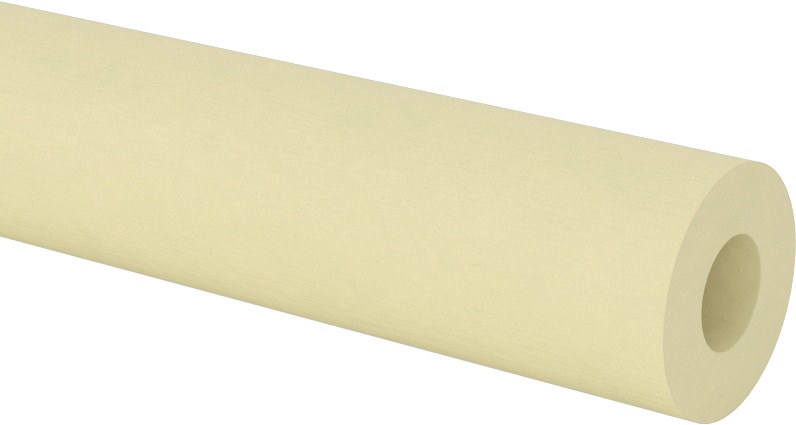

Halogen-Free Garolite G-10 Tube
3/16" Wall Thickness, 11/16" OD, 5/16" ID, 48" Long
Wall Thickness | 3/16" |
Wall Thickness Tolerance | -0.02" to 0.02" |
Color | Yellow |
Length | 48" |
Length Tolerance | -1/2" to 1/2" |
OD | 11/16" |
OD Minimum Tolerance | Not Rated |
OD Maximum Tolerance | Not Rated |
ID | 5/16" |
ID Minimum Tolerance | Not Rated |
ID Maximum Tolerance | Not Rated |
Temperature | |
Minimum | Not Rated |
Maximum | 265° F |
Tensile Strength | 32,000 psi to 40,000 psi |
Impact Strength | 5.5 ft·lbf/in to 9.5 ft·lbf/in |
Hardness | Rockwell M100 |
Hardness Rating | Extra Hard |
For Use Outdoors | No |
Military Specification | MIL-I-24768/2 |
Flammability Rating | UL 94 HB |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Clarity | Opaque |
Compressive Strength Range | 35,000 psi to 68,000 psi |
Performance | Extreme Strength, High Strength, High Temperature, Highly Absorbent, Highly Electrically Insulating, Moisture Resistant, Ultra Impact Resistant, Zero Halogen |
Shape | Round Tube |
Density | 0.069 lb/in³ |
Dielectric Strength | 350 V/mil |
Flexibility | Rigid |
Flexural Strength | 45,000 psi to 55,000 psi |
Material | Garolite |
Material Grade | Garolite G-10 |
Reinforcement Material | Fiberglass Fabric |
Resin Material | Epoxy |
Straightness Tolerance | Not Rated |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.15% |
Country of Origin | Denmark |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391729.0090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
These Garolite G-10 tubes can be used in place of Garolite G-10/FR4 tubes for applications that are sensitive to halogen, such as in nuclear plants. They're strong, machinable, and electrically insulating. Made of an epoxy resin with fiberglass fabric reinforcement, Garolite G-10 is also called epoxy-grade industrial laminate and phenolic.

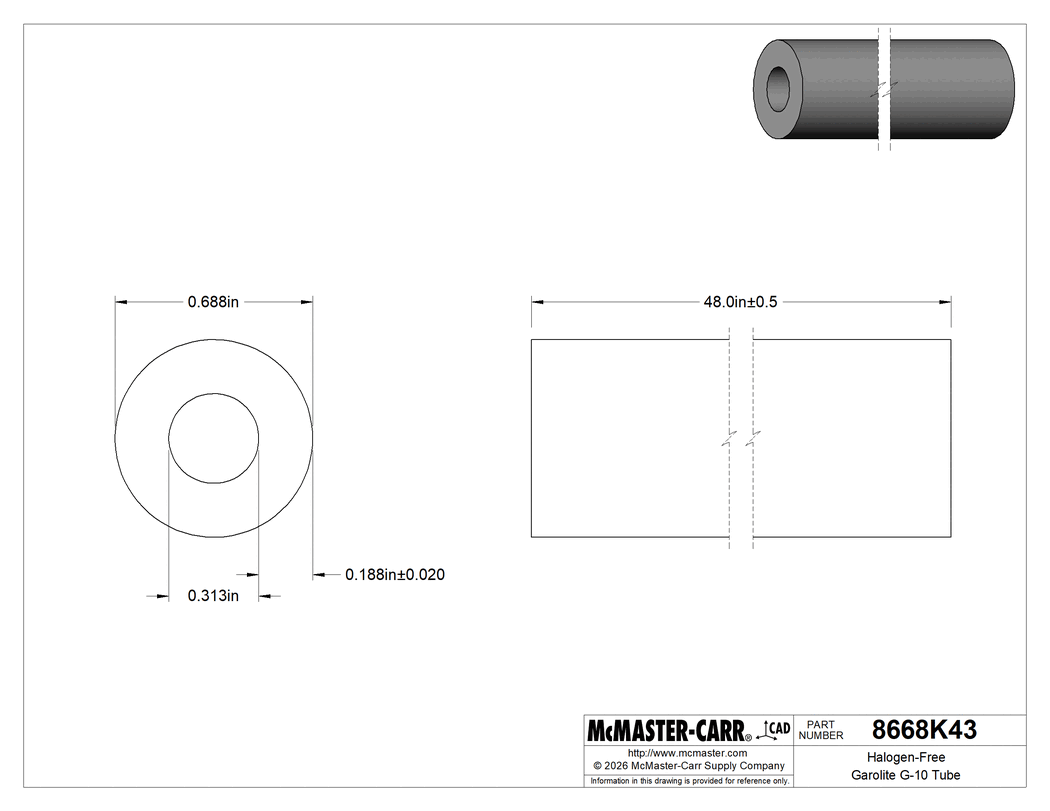

The information in this 3-D model is provided for reference only.
