Scratch-, UV- and Impact Resistant Polycarbonate
48" x 96" x 1/4", Clear
Thickness | 1/4" |
Thickness Tolerance | -0.013" to 0.013" |
Width | 48" |
Width Tolerance | -1/4" to 5/8" |
Length | 96" |
Length Tolerance | -1/4" to 5/8" |
Fabrication | Extruded |
Temperature | -40° F to 180° F |
Color | Clear |
Tensile Strength | 9,500 psi |
Impact Strength | 16 ft·lbf/in |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Diesel Fuel, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Phosphoric Acid, Sodium Hypochlorite (Bleach), Synthetic Oil, Water |
Moderate | Coolant, Hydrochloric Acid, Nitric Acid, Sulfuric Acid |
Not Rated | Chlorine, Fuel Oil, Heating Oil, Hydraulic Fluid, Methyl Ethyl Ketone (MEK), Mineral Oil, Vegetable Oil |
Not Recommended | Acetic Acid (White Vinegar), Acetone, Gasoline, Lacquer Solvents, Methanol (Methyl Alcohol), Sodium Hydroxide (Caustic Soda) |
Clarity | Clear |
Coefficient of Friction | Not Rated |
Coefficient of Thermal Expansion | 3.75 × 10^-5 /°F |
Comparable To | Hygard, Hyzod, Lexan, Lexgard, Makrolon, Margard, Tuffak, Zelux |
Density | 0.043 lb/in³ |
Dielectric Strength | 380 V/mil |
Environment | Outdoor |
Flammability Rating | UL 94 HB |
Flexibility | Semi-Rigid |
Flexural Modulus | 345,000 psi |
For Use Outdoors | Yes |
For Use With | Coolant, Diesel Fuel, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Nitric Acid, Phosphoric Acid, Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Water |
Hardness | Rockwell R118 |
Hardness Rating | Hard |
Light Transmission | 86% |
Material | Polycarbonate |
Performance | Clear, Easy Thermoform, Extra High Strength, Flame Retardant, Highly Electrically Insulating, Moisture Resistant, Scratch Resistant, Thermally Stable, Ultra Impact Resistant, UV Resistant |
Shape | Sheet |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.15% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392061.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
With a clear coating that provides protection from abrasion, UV light, and harsh cleaners, these polycarbonate sheets are often used to create transit shelters and equipment shields. Comparable to Lexan, Hyzod, Tuffak, and Makrolon, polycarbonate is half the weight of glass. This material has greater impact strength than Plexiglas® acrylic and can be used in similar applications.

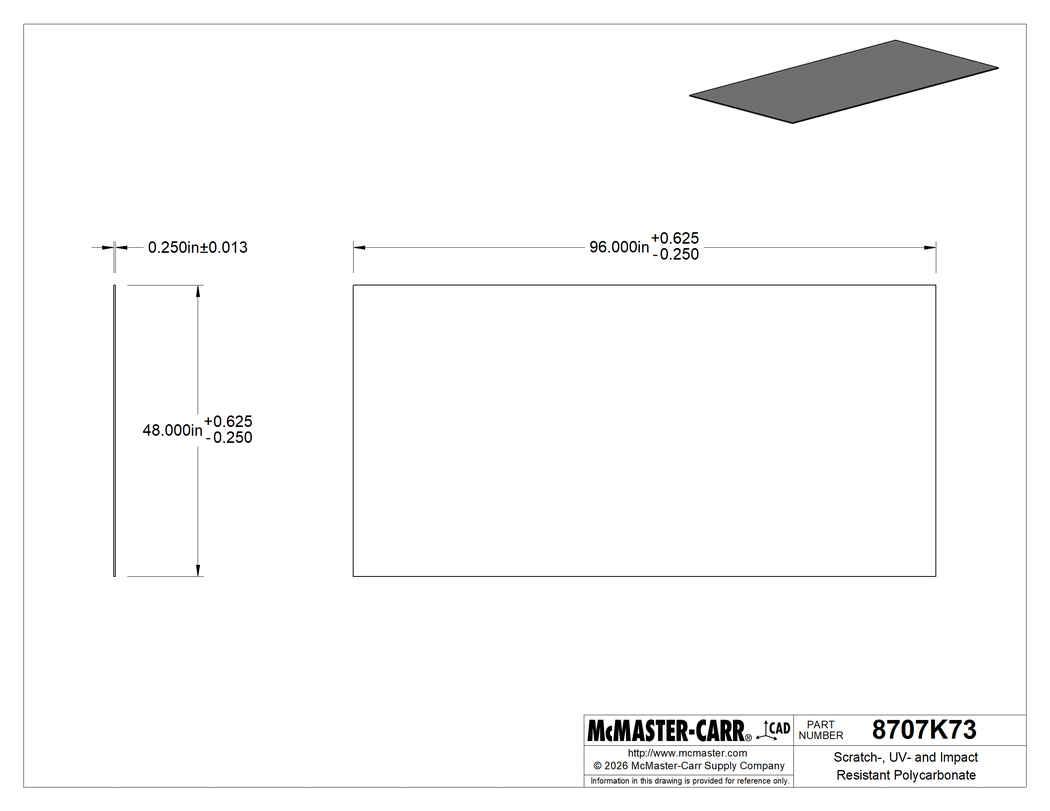

The information in this 3-D model is provided for reference only.
