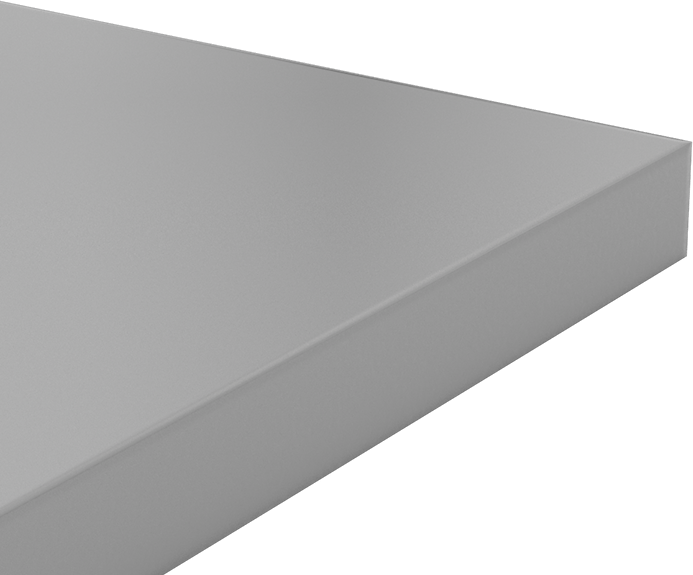

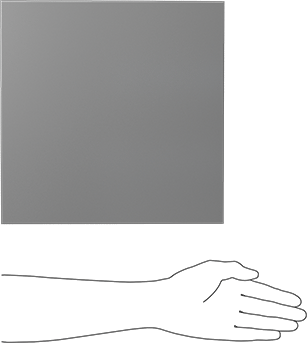

Chemical-Resistant PVC Sheet
12" x 12" x 1"
Thickness | 1" |
Thickness Tolerance | -0.1" to 0.1" |
Width | 12" |
Width Tolerance | -1/8" to 1/8" |
Length | 12" |
Length Tolerance | -1/8" to 1/8" |
Fabrication | Laminated |
Minimum Temperature | 0° F |
Maximum Temperature | 150° F |
Tensile Strength | 7,000 psi to 7,800 psi |
Impact Strength | 0.7 ft·lbf/in to 3 ft·lbf/in |
Clarity | Opaque |
Color | Gray |
Flammability Rating | UL 94 V-0 |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Vegetable Oil, Water |
Moderate | Chlorine, Hydraulic Fluid, Nitric Acid, Synthetic Oil |
Not Recommended | Acetone, Lacquer Solvents, Methyl Ethyl Ketone (MEK) |
Coefficient of Friction | Not Rated |
Coefficient of Thermal Expansion | 2.9 × 10^-5 /°F to 3.3 × 10^-5 /°F |
Density | 0.05 lb/in³ |
Dielectric Strength | 550 V/mil |
Flexibility | Semi-Rigid |
Flexural Modulus | 420,000 psi to 450,000 psi |
For Use Outdoors | No |
For Use With | Acetic Acid (White Vinegar), Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Rockwell R110 to Rockwell R120 |
Hardness Rating | Hard |
Material | PVC Type 1 |
Performance | Chemical Resistant, Easy Thermoform, Extra High Strength, Flame Retardant, Thermally Stable, Ultra Electrically Insulating, Ultra Moisture Resistant |
Shape | Sheet |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.03% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392049.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
In addition to having excellent resistance to acids and alkalies, these sheets are excellent electrical insulators. They’re made of thermoformable PVC Type 1 and are widely used to fabricate valve parts and tanks for chemical-processing applications.

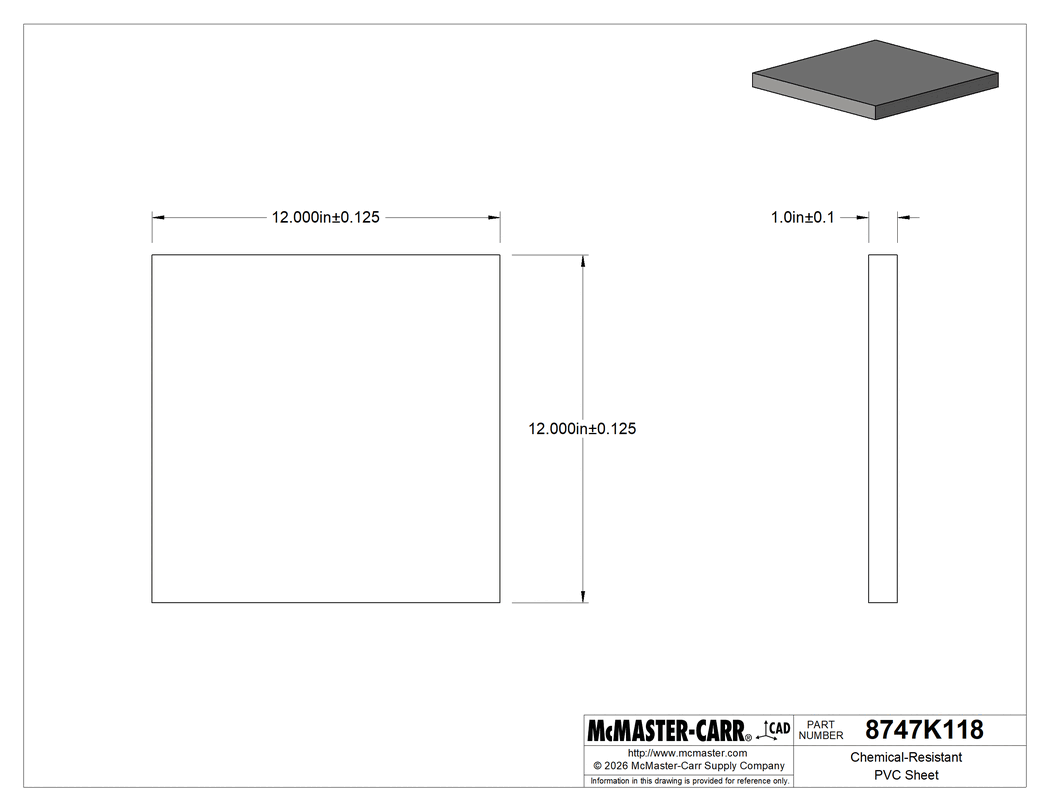

The information in this 3-D model is provided for reference only.
