    High-Strength 17-4 PH Stainless Steel Rod

    1-1/4" Diameter

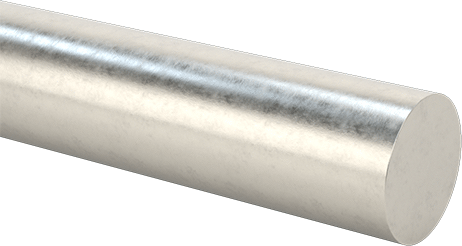

    Image of Product. Front orientation. High-Strength 17-4 PH Stainless Steel Rod, 1-1/4" Diameter.

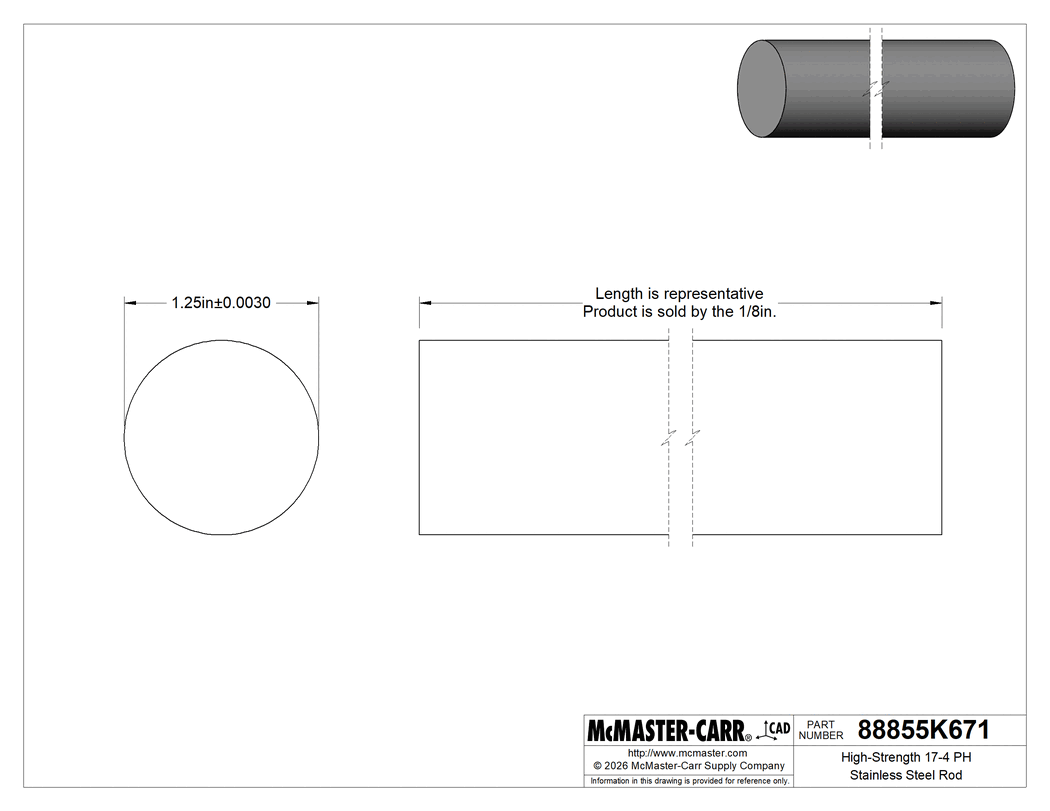

    Technical Drawing of High-Strength 17-4 PH Stainless Steel Rod, 1-1/4" Diameter.

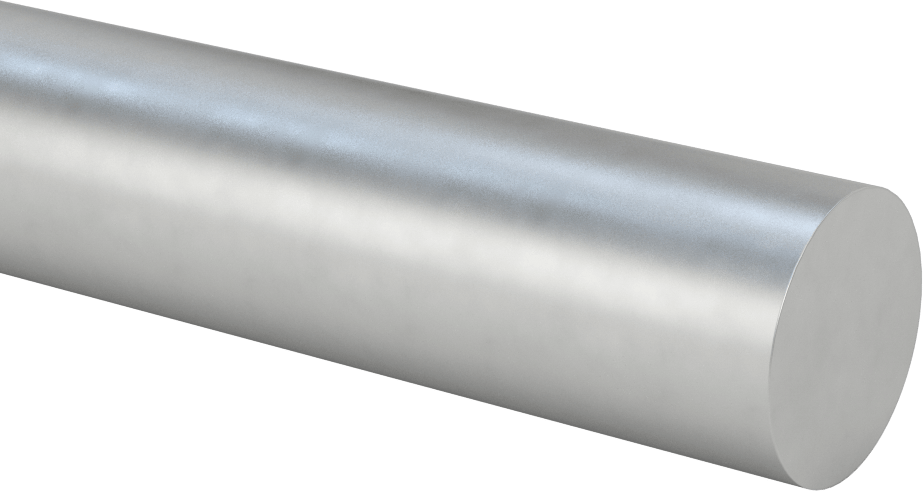

    Image of Product. Front orientation. High-Strength 17-4 PH Stainless Steel Rod, 1-1/4" Diameter.

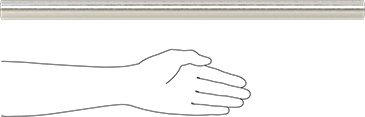

    Image of Product. Side1 orientation. Contains SizingReference. High-Strength 17-4 PH Stainless Steel Rod, 1-1/4" Diameter.

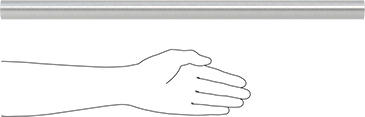

    Image of Product. Side1 orientation. Contains SizingReference. High-Strength 17-4 PH Stainless Steel Rod, 1-1/4" Diameter.
    2-D PDF
    00000 per in.
    88855K671
    Choose a Length between 13" and 90" in 1/8" increments.
    Ships by next week
    88855K671
    00000 per in.
    Each
    Ships by next week
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Diameter

    1 1/4"

    Diameter Tolerance

    -0.003" to 0.003"

    Choose a Length

    13" to 90"

    Fabrication

    Cold Drawn

    Hardness

    Rockwell C30 (Hard)

    Maximum Hardness After Heat Treatment

    Rockwell C45

    Heat Treatment

    Annealed

    Specifications Met

    ASTM A564, SAE AMS5643

    Appearance

    Plain

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Elongation

    10%

    Heat Treatable

    Yes

    Length Tolerance Type

    Plus

    Magnetic Properties

    Magnetic

    Material

    17-4 PH Stainless Steel

    Material Composition

    Carbon

    0% to 0.07%

    Chromium

    15% to 17.5%

    Columbium

    0% to 0.45%

    Copper

    0% to 5%

    Iron

    68.99% to 82%

    Manganese

    0% to 1%

    Molybdenum

    0% to 0.5%

    Nickel

    3% to 5%

    Phosphorus

    0% to 0.04%

    Silicon

    0% to 1%

    Sulfur

    0% to 0.005%

    Tantalum

    0% to 0.45%

    Maximum Temperature

    1,100° F

    Mechanical Finish

    Ground

    Minimum Temperature

    Not Rated

    Performance

    Corrosion Resistant, Chemical Resistant, Extra High Strength, Extreme Strength, Wear Resistant, Heat Treatable, Made-to-Order

    Shape

    Rod

    Straightness Tolerance

    1/16"/5 ft.

    Tolerance Rating

    Standard

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Yield Strength

    Not Rated

    Country of Origin

    United Kingdom, United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    722220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Additional Specifications

    SDS

    When an off-the-shelf size won't do, we'll get you the exact dimensions you need.

    17-4 PH stainless steel combines the strength of 400 series stainless steel with the corrosion resistance of 300 series. This makes it fit for the most demanding applications—even storing and protecting nuclear waste. You can be confident it will stay corrosion resistant in temperatures as hot as 1100° F. Also known as 630 stainless steel.

    The information in this 3-D model is provided for reference only.
