    316 Stainless Steel Eyebolt

    with Shoulder-for Lifting, 1/4"-20 Thread Size, 1" Thread Length

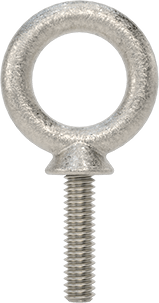

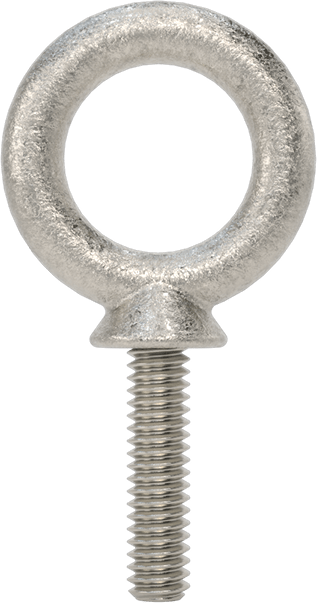

    Image of Product. With Sholder. Front orientation. 316 Stainless Steel Eyebolt, with Shoulder-for Lifting, 1/4"-20 Thread Size, 1" Thread Length .
    With Sholder

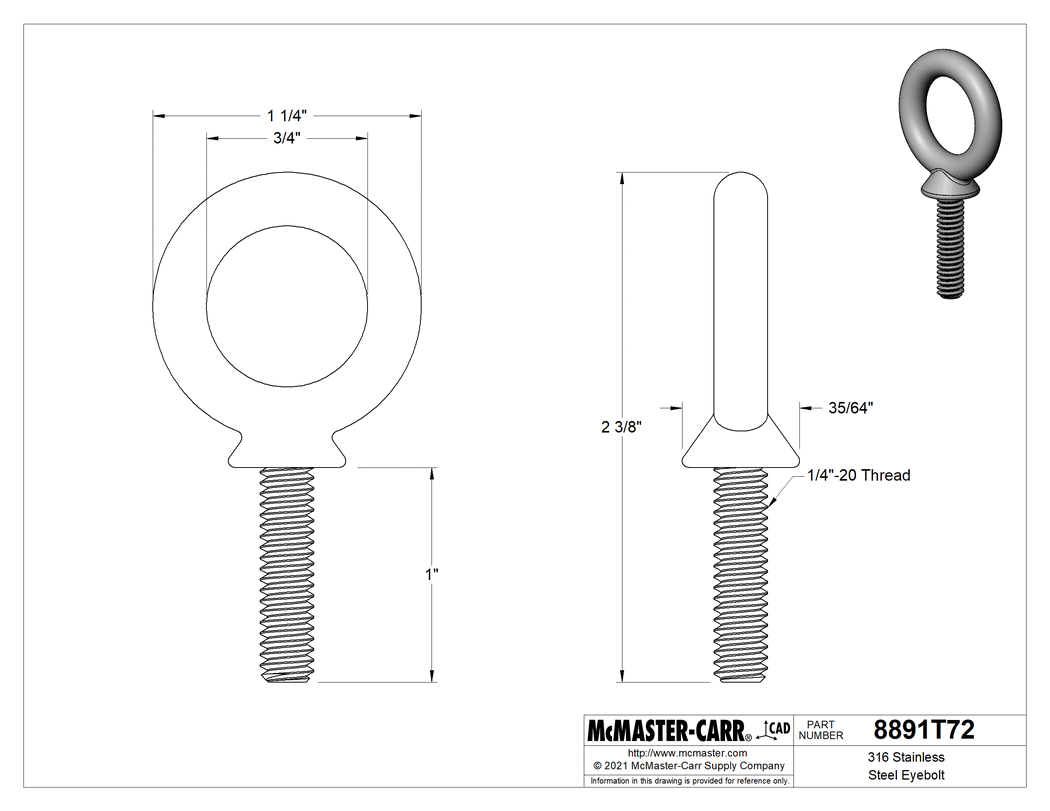

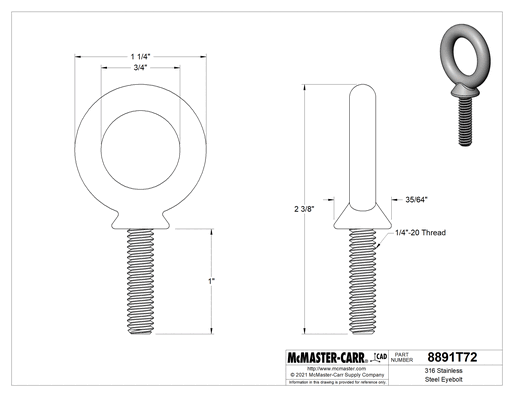

    Technical Drawing of 316 Stainless Steel Eyebolt, with Shoulder-for Lifting, 1/4"-20 Thread Size, 1" Thread Length .

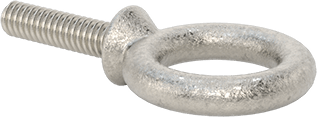

    Image of Product. Top orientation. 316 Stainless Steel Eyebolt, with Shoulder-for Lifting, 1/4"-20 Thread Size, 1" Thread Length .

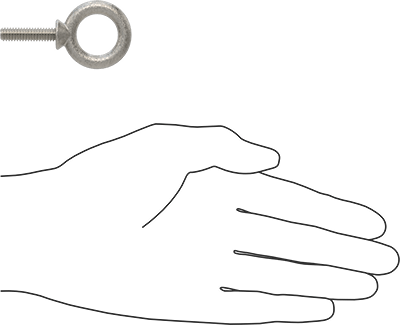

    Image of Product. Side1 orientation. Contains SizingReference. 316 Stainless Steel Eyebolt, with Shoulder-for Lifting, 1/4"-20 Thread Size, 1" Thread Length .
    click to play the video
    2-D PDF
    000000 each
    8891T72
    In stock
    8891T72
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    316 Stainless Steel

    Eye

    Diameter

    3/4"

    Type

    Closed

    Shape

    Round

    Body Style

    With Shoulder

    Thread

    Size

    1/4"-20

    Length

    1"

    Shank Length

    1"

    Vertical Capacity

    500 lb.

    Threading

    Fully Threaded

    Overall Length

    2 3/8"

    Application

    For Lifting

    Movement

    Rigid

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7008)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.2000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Create a secure attachment point for hooks, shackles, and other lifting equipment. Also known as machinery eyebolts, these eyebolts are used to lift heavy machines and materials. They have a closed eye that won’t bend under strain.

    Warning: Never use to lift people or items over people. Capacities listed are for vertical lifting only.

    316 Stainless Steel—316 stainless steel eyebolts are the most corrosion resistant.

    With Shoulder—Use for lifting at angles up to 45° or for vertical lifting. Because angular lifting significantly reduces the eyebolt’s capacity, we recommend hoist rings for heavy loads.

    The information in this 3-D model is provided for reference only.
