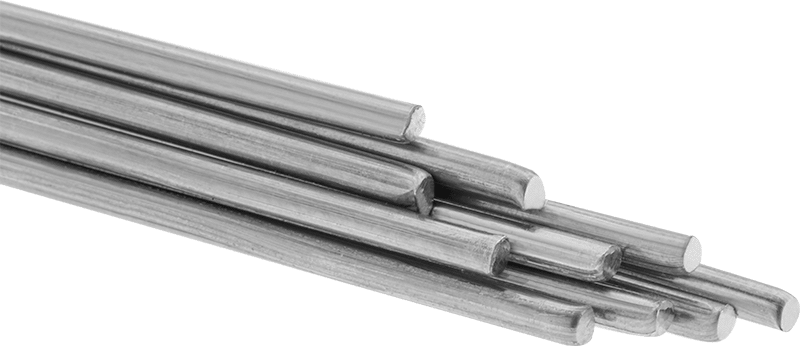

Easy-to-Form 1100 Aluminum Wire
0.081" Diameter, 1 Foot Long
Tolerance Rating | Standard |
Diameter | 0.081" |
Diameter Tolerance | -0.002" to 0.002" |
Length | 1 ft. |
Fabrication | Cold Drawn |
Temper Designation | O |
Specifications Met | ASTM B211 |
Container Type | Package |
Appearance | Matte |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Conductivity Percentage | 59% IACS |
Elongation | 15% |
Hardness | Not Rated |
Hardness Rating | Soft |
Heat Treatable | No |
Heat Treatment | Annealed |
Material | 1100 Aluminum |
Shape | Wire |
Minimum Temperature | Not Rated |
Maximum Temperature | 200° F |
Performance | Highly Conductive, Highly Corrosion Resistant, Interference Shielding, Ultra Formable, Ultra Weldable |
Straightness Tolerance | Not Rated |
Tensile Strength | 11,000 psi |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Yield Strength | 3,500 psi |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 760529.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
Bend this wire and it stays put. It’s often used for securing and bundling applications. Made of 1100 aluminum, it won’t degrade from salt water or mild chemicals, and it conducts electricity almost as well as copper.

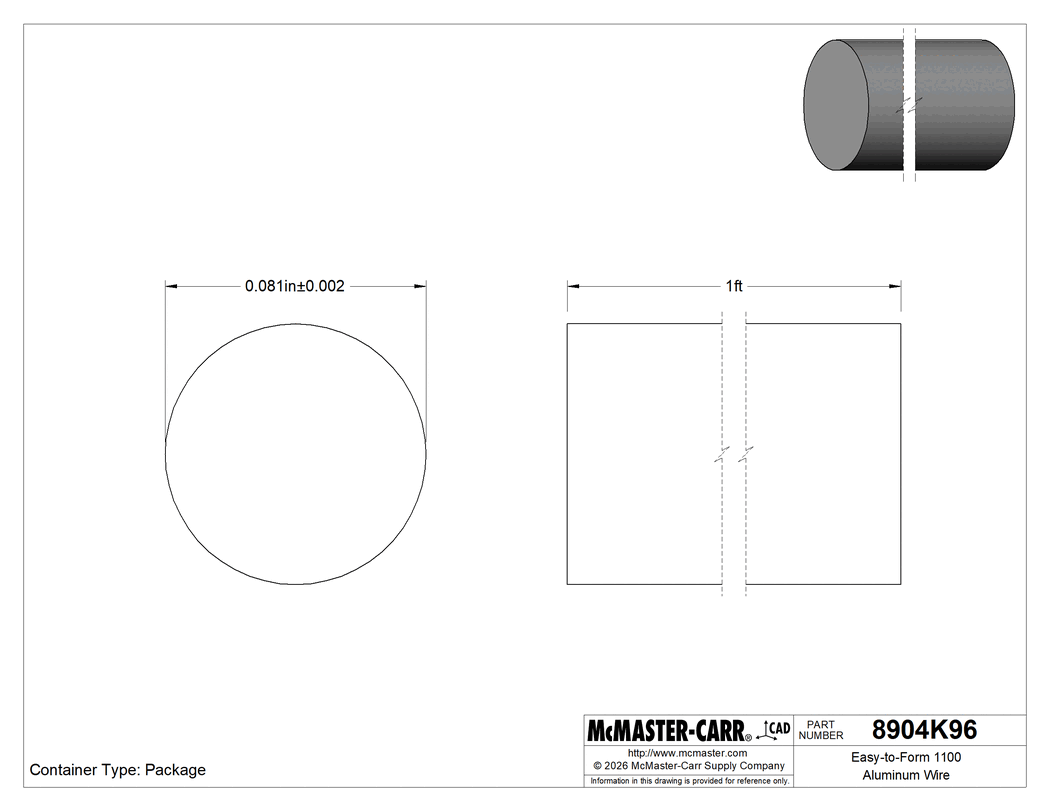

The information in this 3-D model is provided for reference only.
