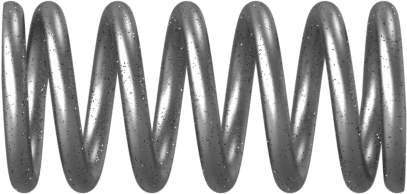

Precision Compression Springs
0.25" Long, 0.12" OD, 0.088" ID

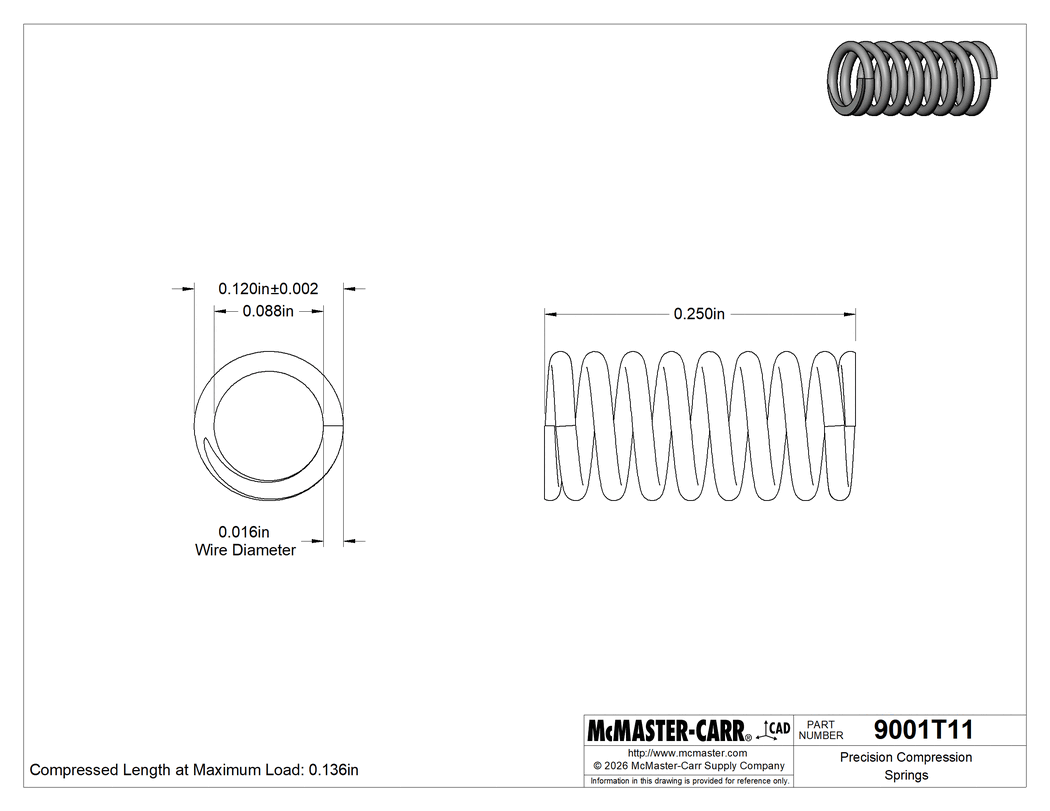

2-D PDF
00000 per pack of 3
9001T11
In stock
9001T11
00000 per pack of 3
Pack of 3
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | Spring Steel |
Length | 0.25" |
OD | 0.12" |
OD Tolerance | -0.002" to 0.002" |
ID | 0.088" |
Wire Diameter | 0.016" |
Compressed Length @ Maximum Load | 0.136" |
Maximum Load | 2 lb. |
Spring Rate | 17.5 lbf/in |
Spring Rate Tolerance | -0.88 lbf/in to 0.88 lbf/in |
End Type | Closed and Ground |
Compression Spring Type | Straight |
Finish | Zinc Plated |
Maximum Temperature | 250° F |
Performance | Precision |
Spring Type | Compression |
Steel Grade | Music-Wire Steel |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732020.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Count on these springs when accuracy and repeatability are a must. All are made to tight OD and spring-rate tolerances. They’re often used for metering, measuring, and positioning jobs that require steady pressure or exact movement.
Spring Steel—Strong and resilient, but best suited for dry environments since moisture will cause these springs to rust.
