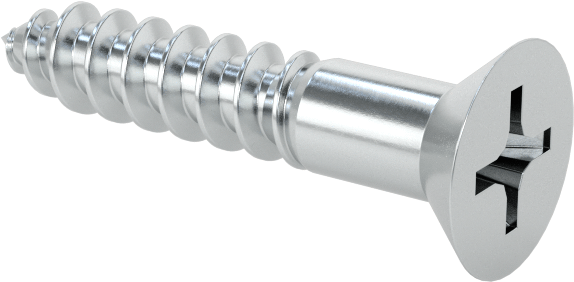

Phillips Flat Head Screws for Wood
Zinc-Plated Steel, Number 6 Size, 3/4" Long
Tip Type | Pointed |

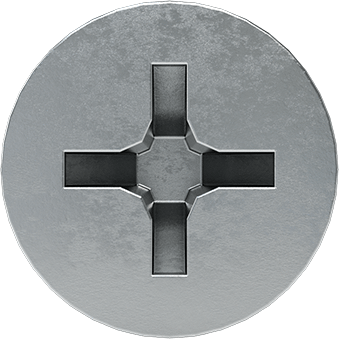

Drive Style | Phillips |
Fastener Head Type | Flat |
For Use In | Wood |
Material | Zinc-Plated Steel |
Screw Size | No. 6 |
Length | 3/4" |
Head | |
Diameter | 0.279" |
Height | 0.083" |
Softwood Drill Bit Size | 1/16" |
Hardwood Drill Bit Size | 5/64" |
Countersink Angle | 82° |
Flat Head Profile | Standard |
Approximate Threads per Inch | 18 |
Threading | Partially Threaded |
Tapping Method | Thread Forming |
Drive Size | No. 2 |
Hardwood Drill Bit Size Decimal Equivalent | 0.078" |
Minimum Thread Length | 1/2" |
Screw Size Decimal Equivalent | 0.138" |
Shank Cross Section | Round |
Softwood Drill Bit Size Decimal Equivalent | 0.063" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Country of Origin | Canada |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731812.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Our most popular screws for wood. The flat head sits flush, so you won't need to worry about snags. The Phillips drive handles enough torque to drive into most kinds of wood without slipping.
Drill a pilot hole slightly smaller than the screw to prevent splitting. Length is measured from the top of the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
Prepare hole
Install

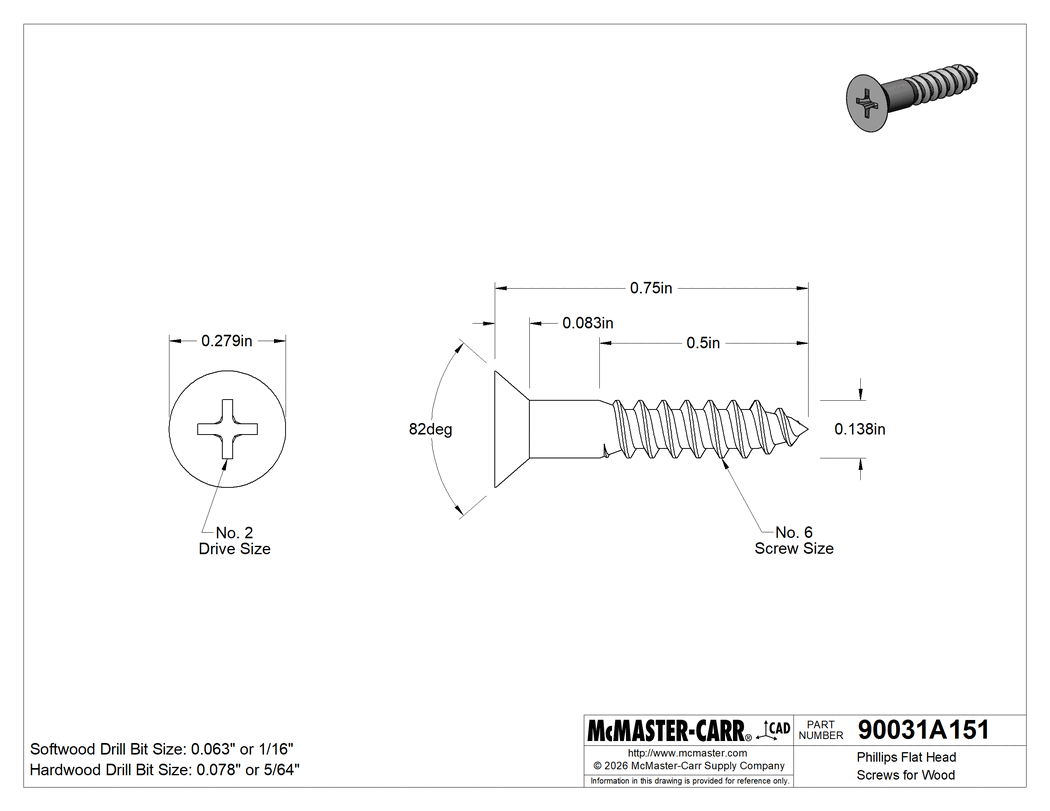

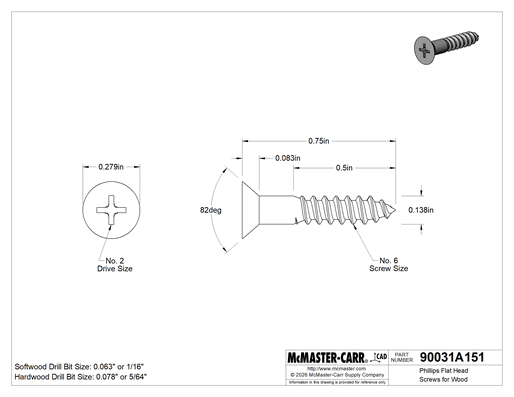

The information in this 3-D model is provided for reference only.
