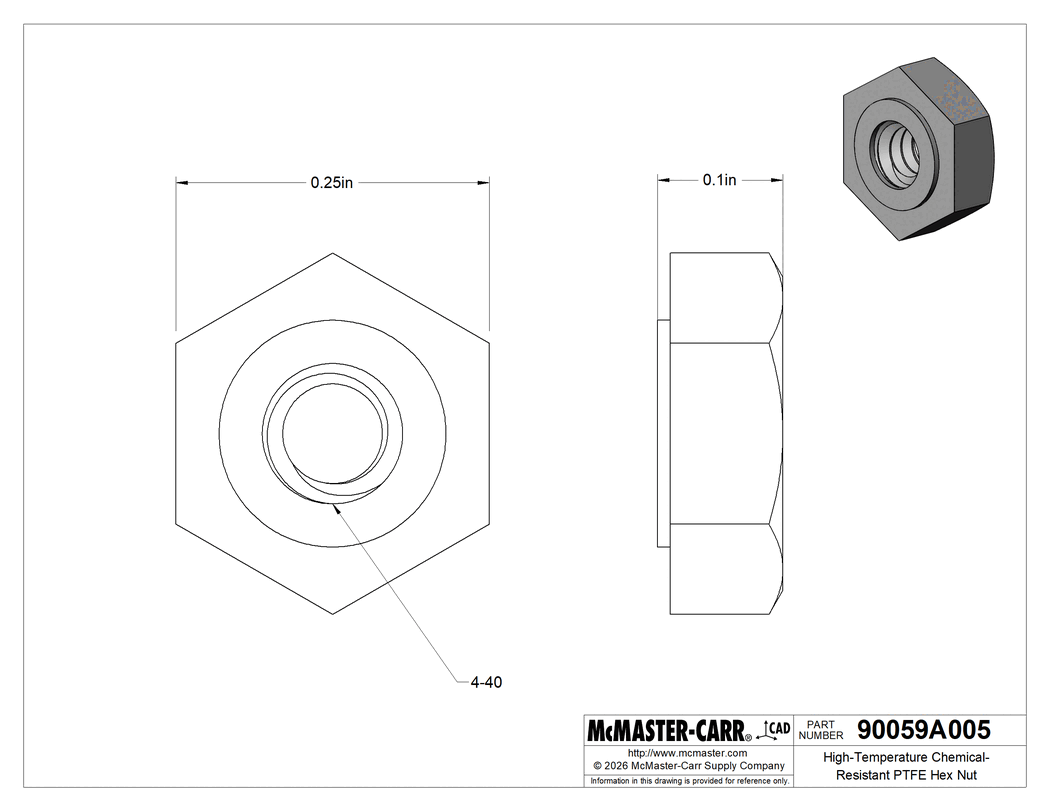

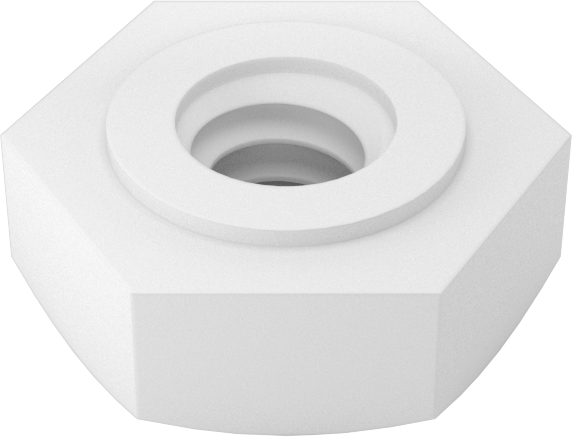

High-Temperature Chemical-Resistant PTFE Hex Nut
4-40 Thread Size
2-D PDF
00000 per pack of 1
90059A005
In stock
90059A005
00000 per pack of 1
Pack of 1
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Hex Nut Profile | Standard |
Material | PTFE |
Thread Size | 4-40 |
Width | 1/4" |
Height | 3/32" |
Temperature | |
Minimum | Not Rated |
Maximum | 500° F |
Color | White |
Drive Style | External Hex |
Nut Type | Hex |
Performance | Chemical Resistant, High Temperature |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The most commonly used hex nuts, these are suitable for fastening most machinery and equipment.
High-Temperature Chemical-Resistant PTFE—The most chemical-resistant plastic nuts we offer, these stand up to the widest range of harsh acids, bases, solvents, and corrosive cleaners. They also keep their shape and strength at higher temperatures than most plastics.
