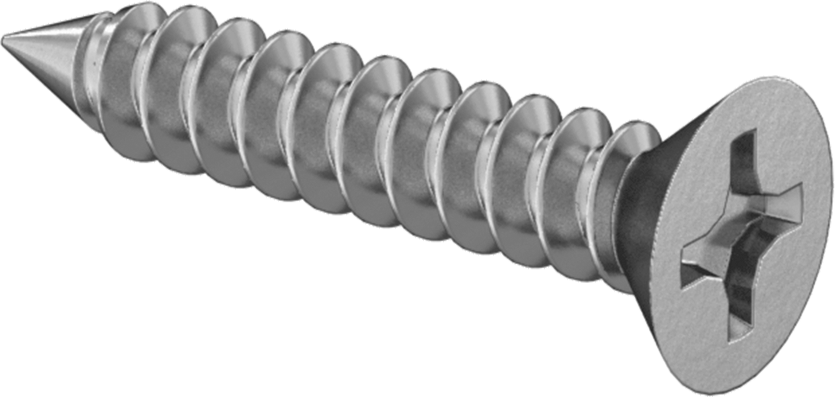

18-8 Stainless Steel Phillips Flat Head Screws for Metal
Number 6 Size, 3/4" Long
Drive Style | Phillips |
Fastener Head Type | Flat |
Tip Type | Pointed |
Tapping Method | Thread Forming |
Material | 18-8 Stainless Steel |
Screw Size | No. 6 |
Length | 3/4" |
Head | |
Diameter | 0.262" |
Height | 0.083" |
Tapping Screw Type | A |
Drive Size | No. 2 |
Approximate Threads per Inch | 18 |

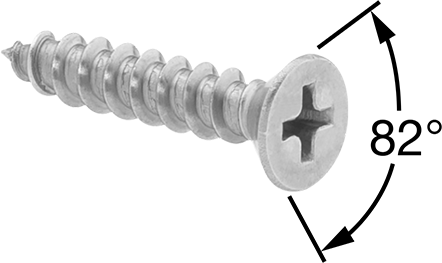

Countersink Angle | 82° |

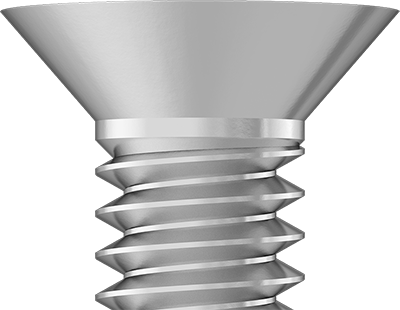

Flat Head Profile | Standard |
Drill Bit Size | 32 Ga. |
Drill Bit Decimal Size Equivalent | 0.116" |
For Use In | Sheet Metal |
Maximum Drilling Thickness | 0.025" |
Performance | Corrosion Resistant, Self-Piercing |
Screw Size Decimal Equivalent | 0.138" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, United States, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These corrosion-resistant screws fasten trim, brackets, and other objects with countersunk holes to sheet metal. The head is flat on top and beveled underneath to sit flush with surfaces. Screws have a pointed tip that starts a hole in sheets up to 0.025" thick, but for thicker material you’ll need to drill first. The Phillips drive handles enough torque to keep drivers from slipping.
Length is measured from the top of the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

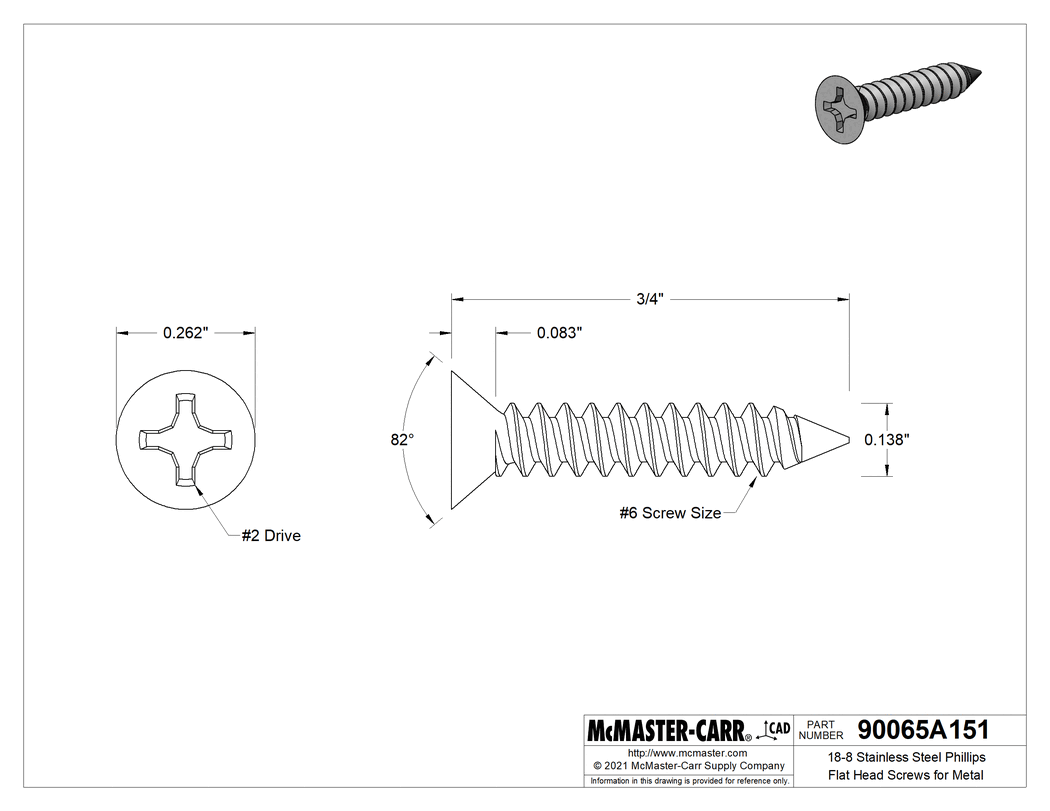

The information in this 3-D model is provided for reference only.
