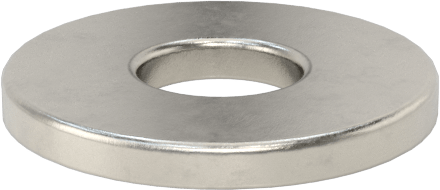

Highly Corrosion-Resistant 316 Stainless Steel Washer
for Number 2 Screw Size, General Purpose, 0.094" ID

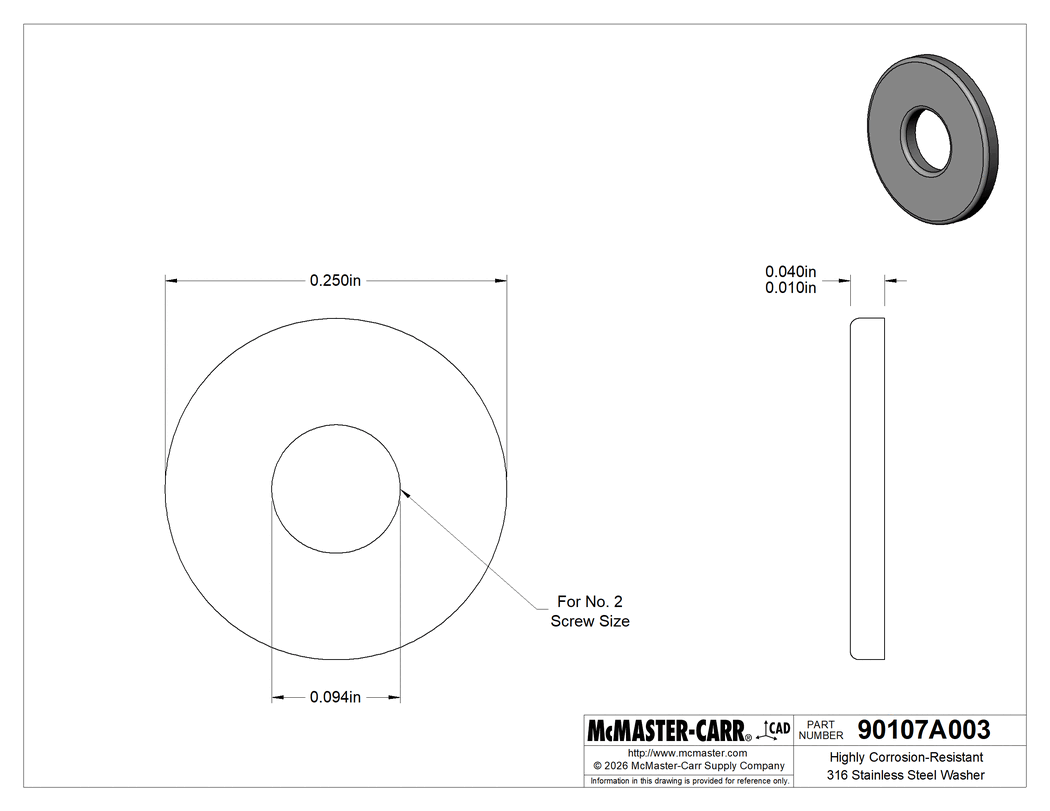

2-D PDF
00000 per pack of 100
90107A003
In stock
90107A003
00000 per pack of 100
Pack of 100
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Washer Designation | General Purpose |
Material | 316 Stainless Steel |
For Screw Size | No. 2 |
ID | 0.094" |
OD | 0.250" |
Thickness | 0.01" to 0.04" |
Hardness | Not Rated |
Performance | Highly Corrosion Resistant |
System of Measurement | Inch |
Washer Type | Flat |
Country of Origin | India |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731822.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Your go-to metal washer for every screw size. Washers take the pressure off nuts and screws to protect mounting surfaces.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these washers won't degrade when exposed to harsh weather, salt water, and most chemicals.
Compatible Products for This Washer
Resist loosening
The information in this 3-D model is provided for reference only.
