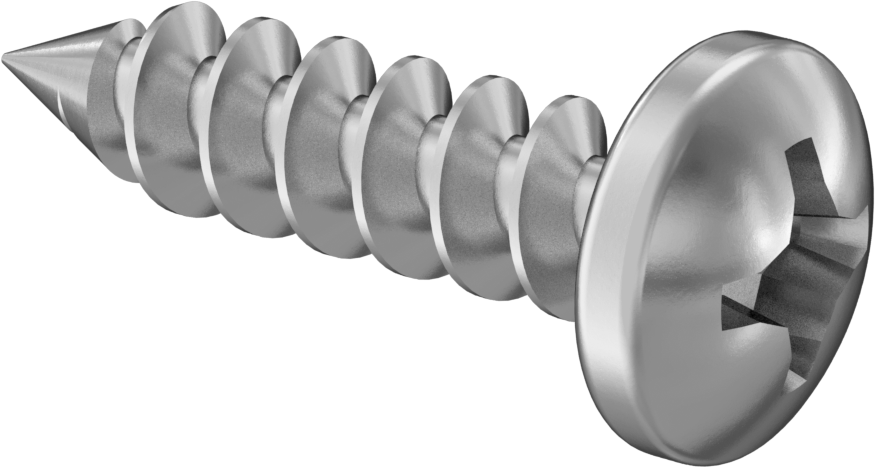

Phillips Rounded Head Screws for Sheet Metal
Zinc-Plated Steel, Number 10 Size, 3/4" Long
Drive Style | Phillips |
Fastener Head Type | Rounded |
Tip Type | Pointed |
Tapping Method | Thread Forming |
Rounded Head Style | Pan |
Material | Zinc-Plated Steel |
Screw Size | No. 10 |
Length | 3/4" |
Head | |
Diameter | 0.373" |
Height | 0.133" |
Tapping Screw Type | A, AB |
Drive Size | No. 2 |
Approximate Threads per Inch | 12 |
Drill Bit Size | 21 Ga. |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Drill Bit Decimal Size Equivalent | 0.159" |
For Use In | Sheet Metal |
Maximum Drilling Thickness | 0.025" |
Performance | Self-Piercing |
Rounded Head Profile | Standard |
Screw Size Decimal Equivalent | 0.190" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | China, Taiwan, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The pointed tip starts a hole as you install these screws in sheet metal. They penetrate sheets up to 0.025" thick, but for thicker material you’ll need to drill first. The Phillips drive handles enough torque to keep drivers from slipping and the rounded head creates a finished look.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
Fasten
Install

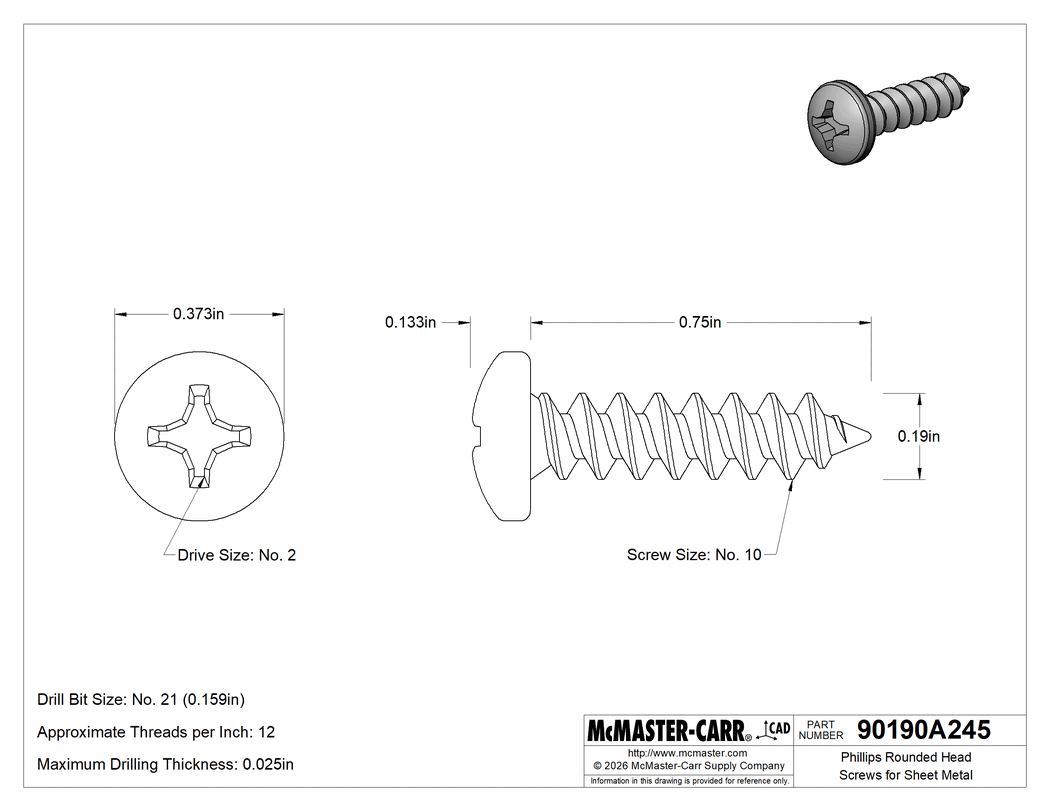

The information in this 3-D model is provided for reference only.
