    Round Coupling Nut

    18-8 Stainless Steel, M16 x 2 mm Thread, 40 mm Long

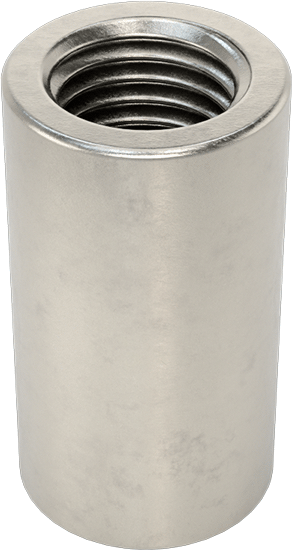

    Image of Product. Bottom orientation. Round Coupling Nut, 18-8 Stainless Steel, M16 x 2 mm Thread, 40 mm Long.

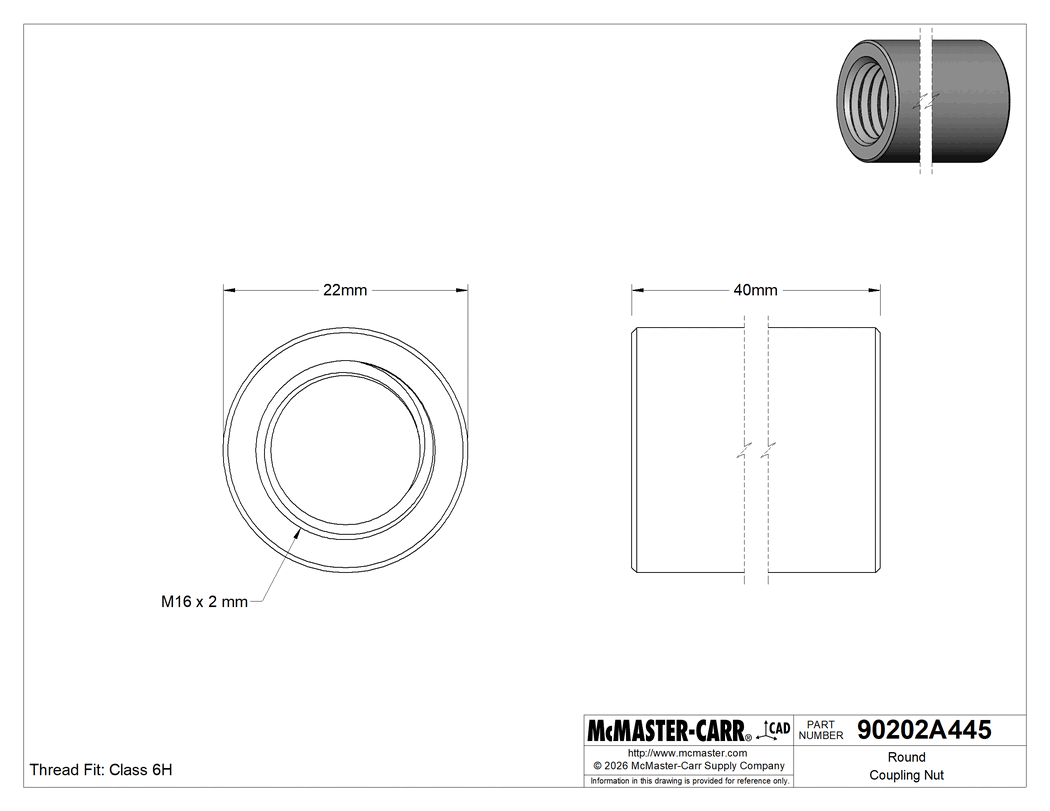

    Technical Drawing of Round Coupling Nut, 18-8 Stainless Steel, M16 x 2 mm Thread, 40 mm Long.

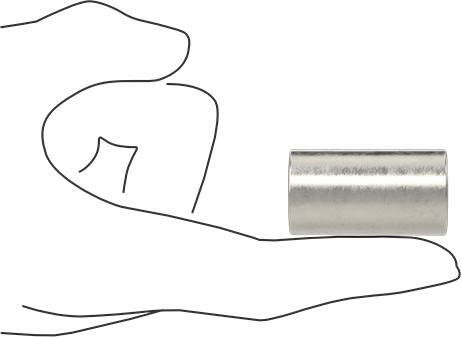

    Image of Product. Side1 orientation. Contains SizingReference. Round Coupling Nut, 18-8 Stainless Steel, M16 x 2 mm Thread, 40 mm Long.
    2-D PDF
    00000 each
    90202A445
    In stock
    90202A445
    1-9 each00000
    10 or more00000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread Direction

    Right Hand

    Material

    18-8 Stainless Steel

    Thread Size

    M16

    Thread Pitch

    2 mm

    Length

    40 mm

    OD

    22 mm

    Threading

    Fully Threaded

    Coupling Nut Profile

    Standard

    Nut Type

    Round, Coupling

    Performance

    Corrosion Resistant

    System of Measurement

    Metric

    Thread Fit

    Metric Class 6H

    Thread Spacing

    Coarse

    Thread Type

    Metric

    Country of Origin

    China, India

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731816.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Less bulky than hex coupling nuts, these have a smooth, round body that fits in tight spots. Their finished appearance makes them a common choice for decorative applications. Tighten by hand, or use soft-jaw pliers to avoid marring the outside surface. Also known as extension nuts, they are commonly used to connect lengths of threaded rod and join threaded parts.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these nuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

    The information in this 3-D model is provided for reference only.
