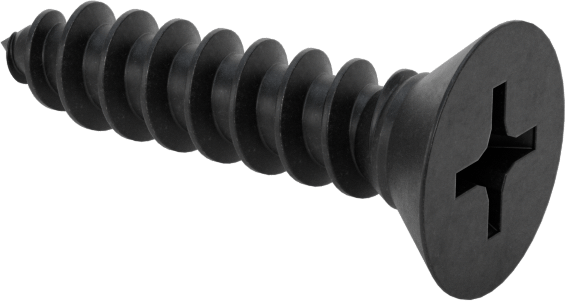

Flat Head Screws for Particleboard and Fiberboard
Black-Oxide Steel, Number 8 Size, 3/4" Long
Tip Type | Pointed |
Drive Style | Phillips |
Fastener Head Type | Flat |
For Use In | Particleboard, Fiberboard |
Material | Black-Oxide Steel |
Screw Size | No. 8 |
Length | 3/4" |
Head | |
Diameter | 0.332" |
Height | 0.1" |
Drill Bit Size | 5/64" |
Countersink Angle | 82° |
Flat Head Profile | Standard |
Approximate Threads per Inch | 11 |
Threading | Fully Threaded |
Tapping Method | Thread Forming |
Drill Bit Decimal Size Equivalent | 0.078" |
Drive Size | No. 2 |
Head Diameter Minimum Tolerance | -0.04" |
Screw Size Decimal Equivalent | 0.164" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731812.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Deep, sharp, and widely spaced threads cut into workpieces without splitting them, while the head sits flush to prevent snags. These domed-head screws are often used on particleboard, medium-density fiberboard (MDF), and hardboard such as Masonite. The Phillips drive handles enough torque to drive into most kinds of wood without slipping.
Length is measured from under the head.
Black-Oxide Steel—Typically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.
Install
Distribute load

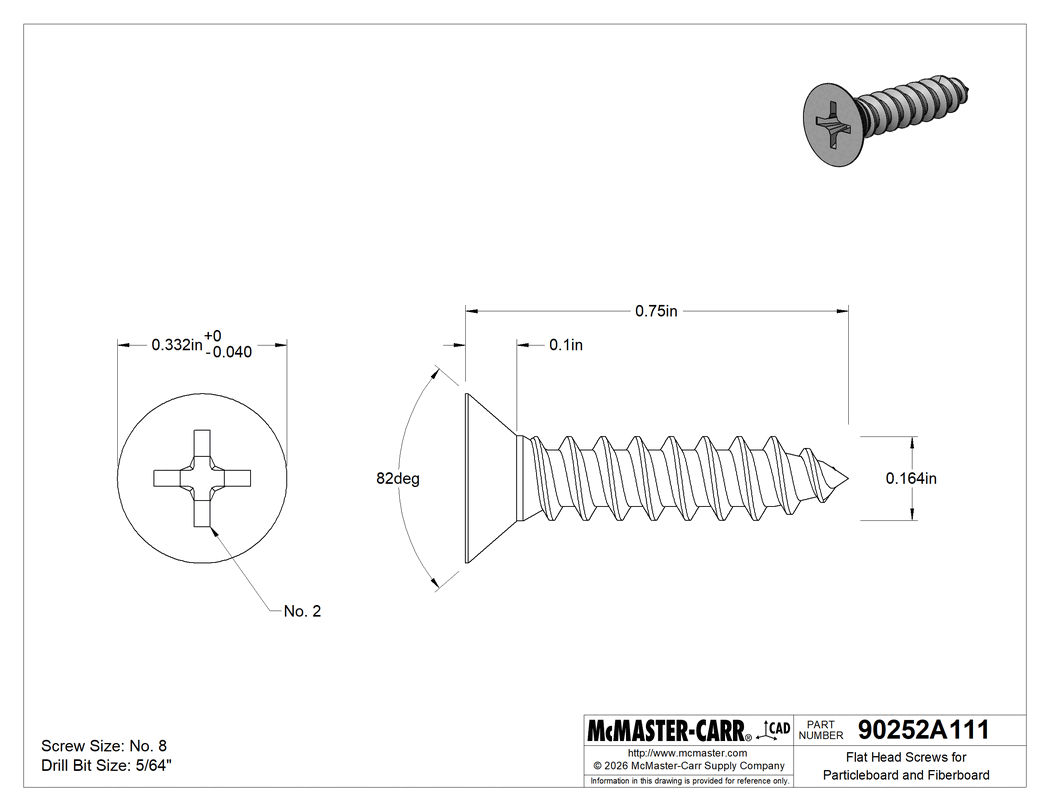

The information in this 3-D model is provided for reference only.
