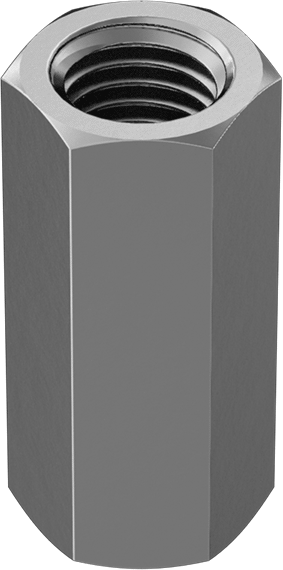

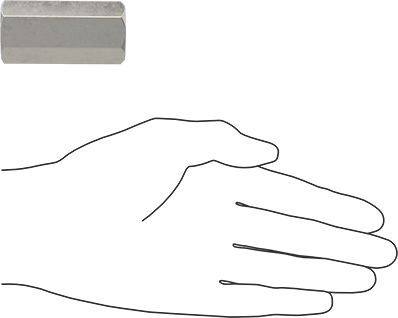

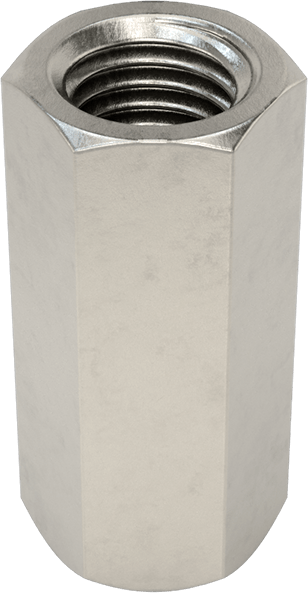

18-8 Stainless Steel Coupling Nut
3/4"-10 Thread Size

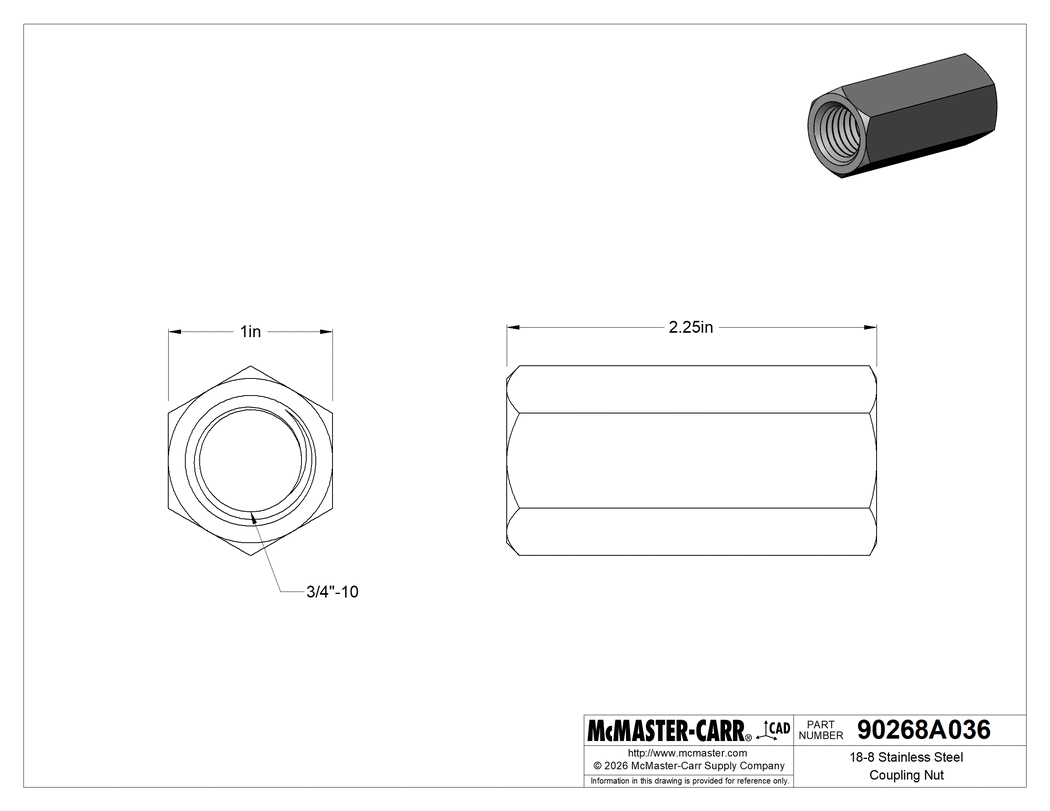

2-D PDF
00000 each
90268A036
In stock
90268A036
1-9 each00000
10-49 each00000
50 or more00000
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Thread Direction | Right Hand |
Material | 18-8 Stainless Steel |
Thread Size | 3/4"-10 |
Length | 2 1/4" |
Width | 1" |
Threading | Fully Threaded |
Coupling Nut Profile | Standard |
Drive Style | External Hex |
Nut Type | Hex, Coupling |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | China, Philippines, Taiwan, United Arab Emirates |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Also known as extension nuts, these are commonly used to connect lengths of threaded rod and join threaded parts.
18-8 Stainless Steel—The choice for wet and outdoor environments, these nuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
The information in this 3-D model is provided for reference only.
