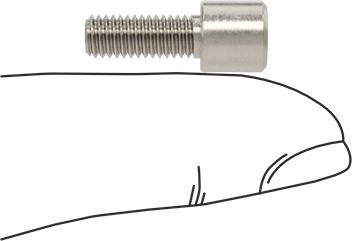

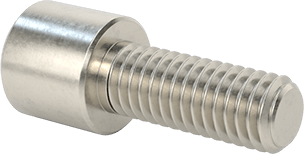

High-Profile Socket Head Screw
18-8 Stainless Steel, 10-32 Thread Size, 1/2" Long
Thread | |
Size | 10-32 |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 3A |
Direction | Right Hand |
Socket Head Profile | High |
Fastener Head Type | Socket |
Drive Style | Hex |
Length | 1/2" |
Head | |
Diameter | 5/16" |
Height | 0.285" |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Drive Size | 5/32" |
Hardness | Rockwell B84 |
Material | 18-8 Stainless Steel |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.19" |
System of Measurement | Inch |
Tip Type | Flat |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

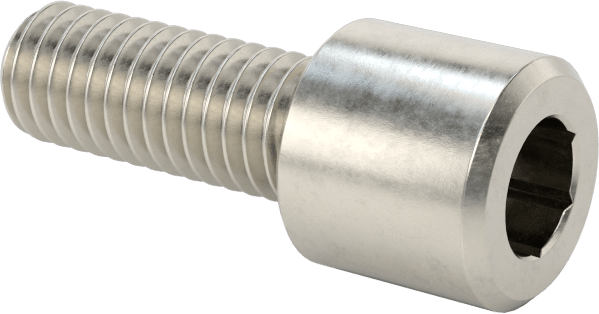

Fasten parts in hard-to-reach places, such as deep holes tucked inside machinery. These corrosion-resistant screws have heads that are about 50% taller than standard ones. The hex drive is deeper than other socket head profiles, so it can withstand more force when tightening.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel screws can.

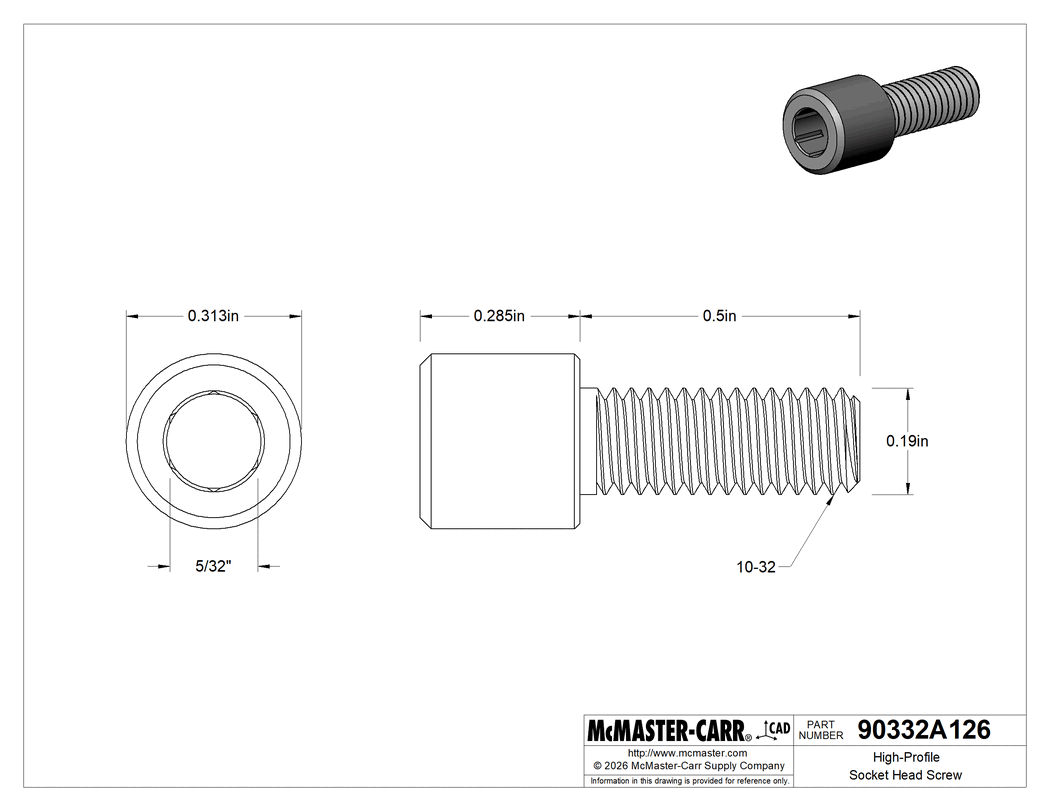

The information in this 3-D model is provided for reference only.
