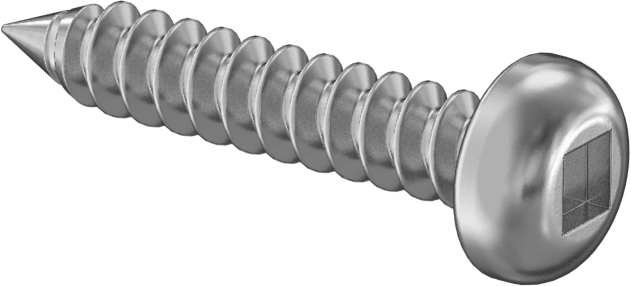

Square-Drive Rounded Head Screws for Sheet Metal
Zinc-Plated Steel, Number 6 Size, 3/4" Long
Drive Style | Square |
Fastener Head Type | Rounded |
Tip Type | Pointed |
Tapping Method | Thread Forming |
Rounded Head Style | Pan |
Material | Zinc-Plated Steel |
Screw Size | No. 6 |
Length | 3/4" |
Head | |
Diameter | 0.27" |
Height | 0.103" |
Tapping Screw Type | A, AB |
Drive Size | No. 1 |
Approximate Threads per Inch | 18 |
Drill Bit Size | 32 Ga. |
Drill Bit Decimal Size Equivalent | 0.116" |
For Use In | Sheet Metal |
Maximum Drilling Thickness | 0.025" |
Performance | Self-Piercing |
Rounded Head Profile | Standard |
Screw Size Decimal Equivalent | 0.138" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | China, Taiwan, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Drivers won’t slip out of the square recess, which withstands more torque than slotted and Phillips drives. These screws are also known as Robertson drive. They have a pointed tip that starts a hole in sheet metal up to 0.025" thick, but for thicker material you’ll need to drill first. The rounded head creates a finished look.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

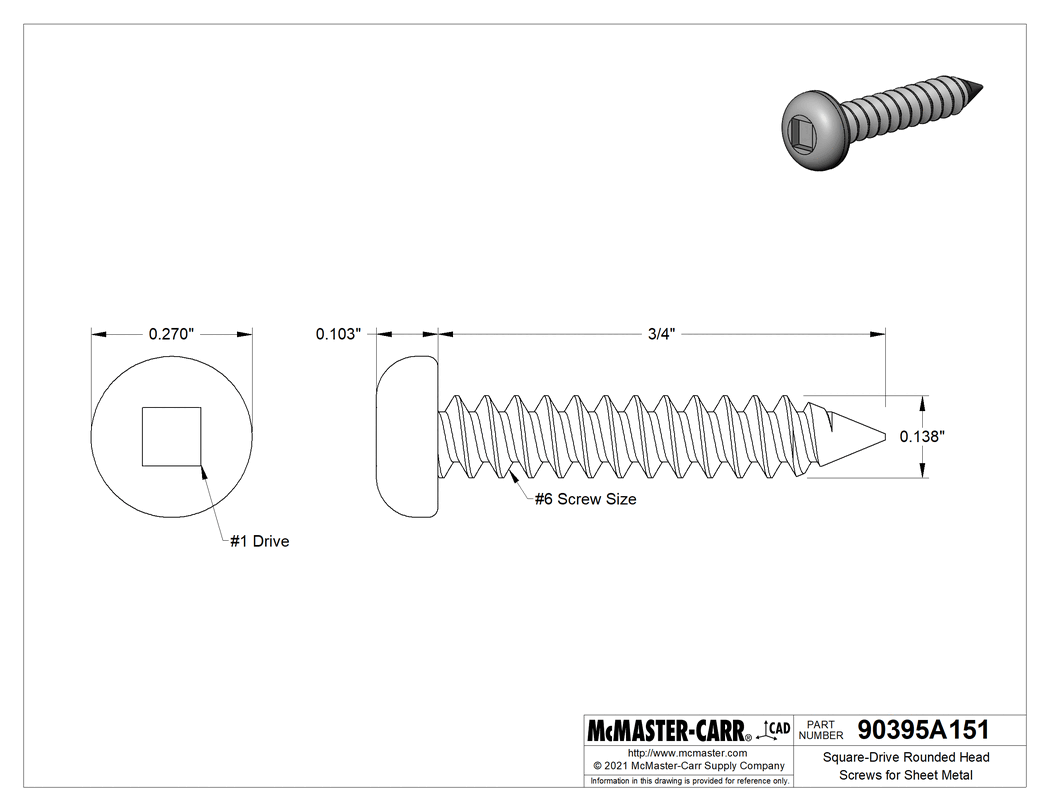

The information in this 3-D model is provided for reference only.
