    Stubby Angled-Drive Ball-Tip Hex L-Key Set

    13 Pieces, Long Length, Single Ball, Chrome Plated Alloy Steel

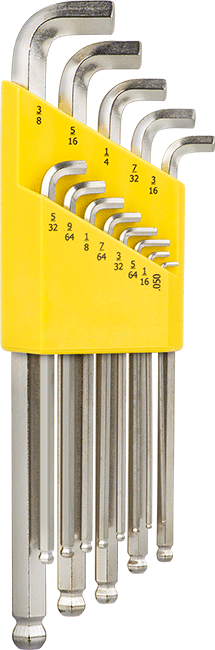

    Image of Product. Front orientation. Stubby Angled-Drive Ball-Tip Hex L-Key Set, 13 Pieces, Long Length, Single Ball, Chrome Plated Alloy Steel.
    Image of Attribute. Hex. Front orientation. Contains Annotated. Stubby Angled-Drive Ball-Tip Hex L-Key Set, 13 Pieces, Long Length, Single Ball, Chrome Plated Alloy Steel.
    Hex
    Image of Attribute. Front orientation. Contains Annotated, Border. Stubby Angled-Drive Ball-Tip Hex L-Key Set, 13 Pieces, Long Length, Single Ball, Chrome Plated Alloy Steel.
    000000 each
    90422A120
    In stock
    90422A120
    000000 each
    Each
    In stock
    Tip Style

    Ball

    Driver Style

    L-Key

    Material

    Alloy Steel

    Drive Style

    Hex

    Number of Pieces

    13

    Drive Size

    0.050", 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4", 5/16", 3/8"

    Length

    Overall

    2 7/8" to 7 3/16"

    Relative

    Long

    Ball

    Location

    Single Ball

    Shape

    Round

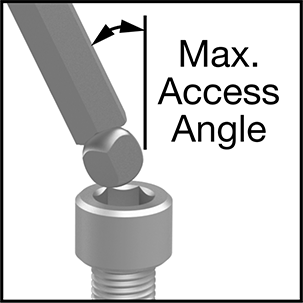

    Maximum Access Angle

    25°

    Color

    Silver

    Finish

    Chrome Plated

    Container Type

    Plastic Caddy

    Driver Type

    Standard

    Includes

    0.050" Hex L-Key (2 7/8" O'all Lg.)
    1/16" Hex L-Key (3 1/16" O'all Lg.)
    5/64" Hex L-Key (3 3/8" O'all Lg.)
    3/32" Hex L-Key (3 9/16" O'all Lg.)
    7/64" Hex L-Key (3 3/4" O'all Lg.)
    1/8" Hex L-Key (3 15/16" O'all Lg.)
    9/64" Hex L-Key (4 3/16" O'all Lg.)
    5/32" Hex L-Key (4 7/16" O'all Lg.)
    3/16" Hex L-Key (4 11/16" O'all Lg.)
    7/32" Hex L-Key (5 3/16" O'all Lg.)
    1/4" Hex L-Key (5 7/8" O'all Lg.)
    5/16" Hex L-Key (6 5/16" O'all Lg.)
    3/8" Hex L-Key (7 3/16" O'all Lg.)

    Performance

    Angled Drive, Tight Clearance

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820411.0060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Fasten a variety of screw sizes in compact machinery where overhead clearance is minimal. These L-keys have a stubby leg that's up to 50% shorter than others to squeeze into extremely tight spaces. They also have a ball tip on one or both ends that engages the drive with less contact than a straight tip, so you can turn screws at an angle instead of head on. Ball tips don't grip as tightly as straight tips, however, and may strip the drive of the fastener if you crank them too hard.

    Alloy Steel—These L-keys handle high torque without bending or breaking, so they’ll last a lifetime.

    Long—The most common option, these L-keys have a balanced length for everyday reach and torque.
