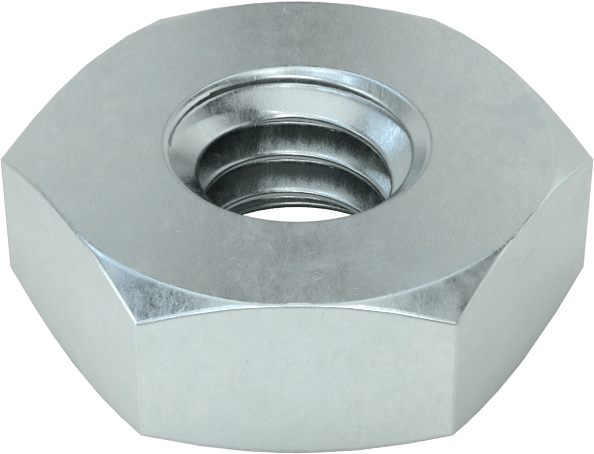

Zinc-Plated Low-Strength Steel Hex Nuts
12-24 Thread Size
Hex Nut Profile | Standard |
Fastener Strength Rating | Low |
Material | Zinc-Plated Steel |
Thread Size | 12-24 |
Width | 7/16" |
Height | 5/32" |
Specifications Met | ASME B18.2.2 |
Drive Style | External Hex |
Nut Type | Hex |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The most commonly used hex nuts, these are suitable for fastening most machinery and equipment.
Low-Strength Steel—Rated Grade 2, Class 6, or lower, these nuts are about half as strong as medium-strength nuts. They are suitable for light duty fastening applications, such as securing access panels. Use them with screws that have a similar strength rating to avoid stripping threads during installation.
Zinc-Plated Steel—A step up from plain steel, the zinc plating withstands occasional exposure to moisture.

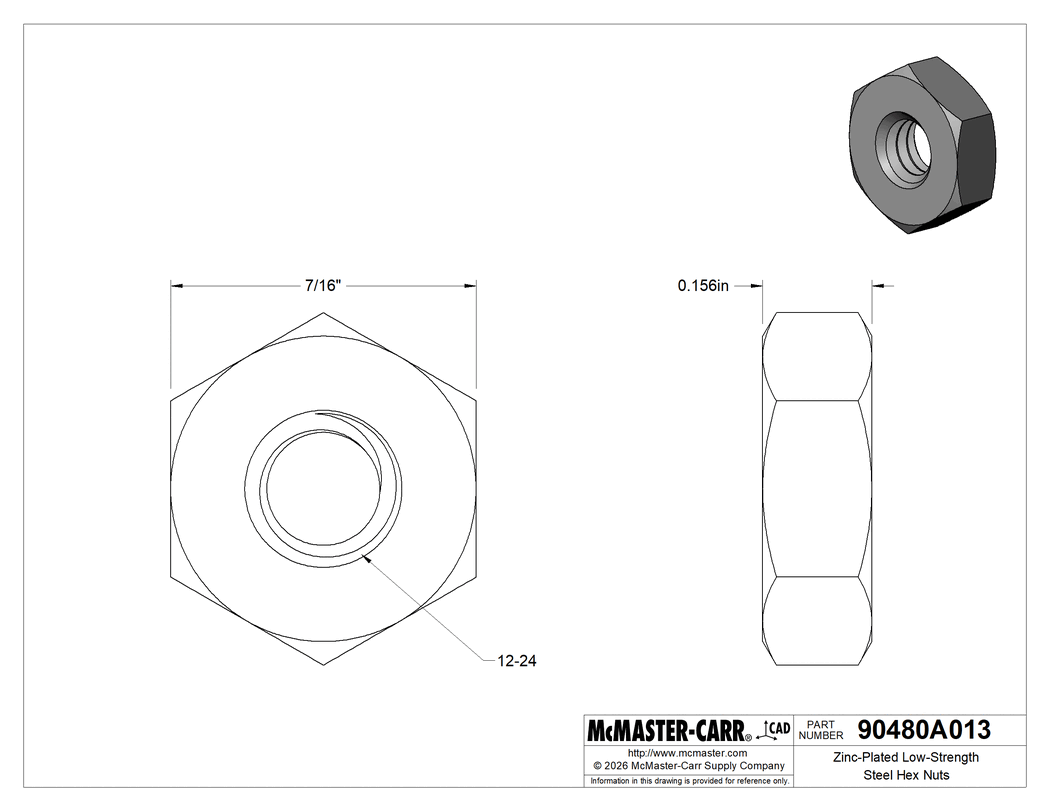

The information in this 3-D model is provided for reference only.
