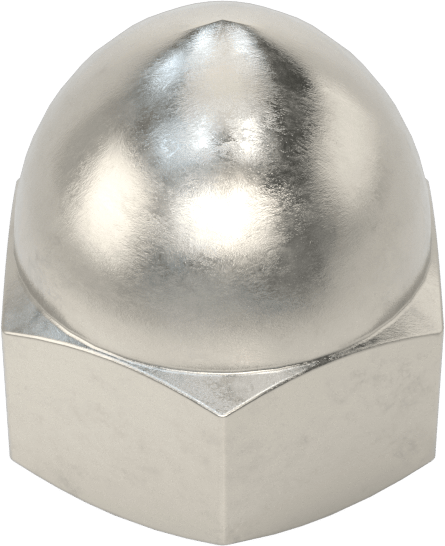

18-8 Stainless Steel Distorted-Thread Cap Nut
1/2"-13 Thread Size
Cap Nut Profile | Standard |
Locking Type | Distorted Thread |
Material | 18-8 Stainless Steel |
Thread | |
Size | 1/2"-13 |
Depth | 1/2" |
Width | 3/4" |
Height | 13/16" |
Drive Style | External Hex |
Nut Type | Cap, Hex, Locknut |
Performance | Corrosion Resistant, Vibration Resistant |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
For a stronger hold than nylon-insert cap nuts, these have irregularly shaped threads that grip the screw to resist loosening. The threads prevent the nut from backing out in high-vibration applications, but they also increase the effort to install and remove. To get these nuts off, you may need special tools, such as an impact wrench or propane torch. They have a smooth, rounded head that conceals and protects protruding screw threads while creating a finished look. Nuts are not reusable.
18-8 Stainless Steel—The choice for wet and outdoor environments, these nuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

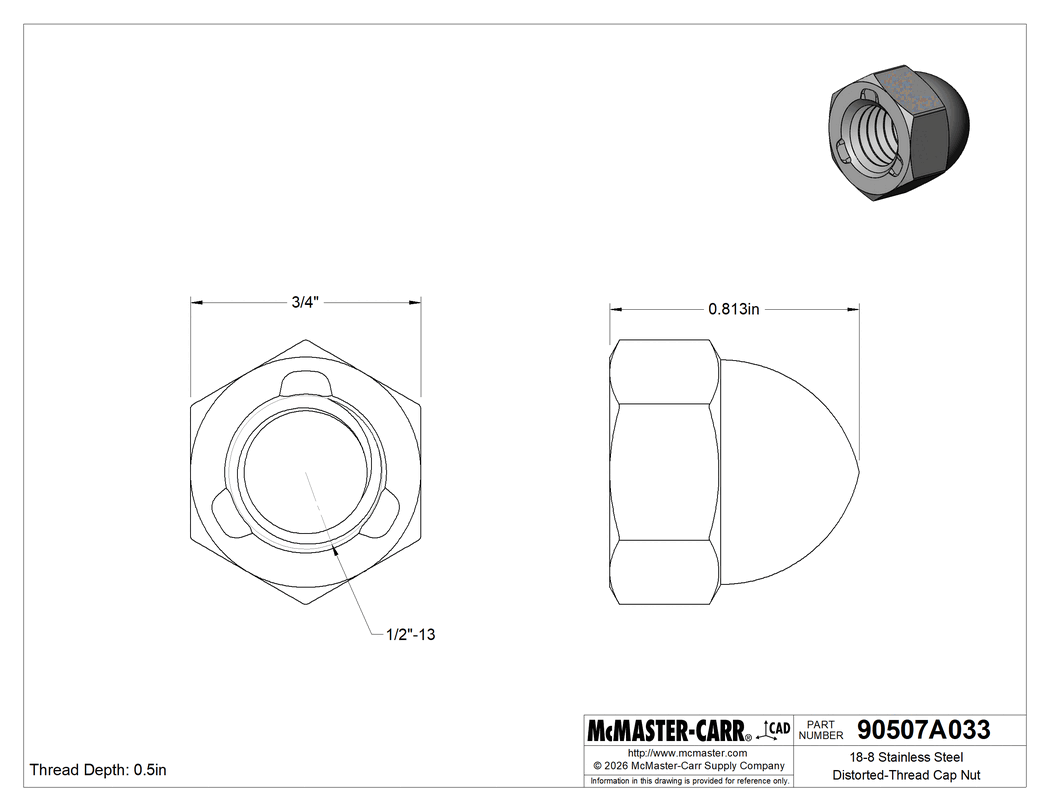

The information in this 3-D model is provided for reference only.
