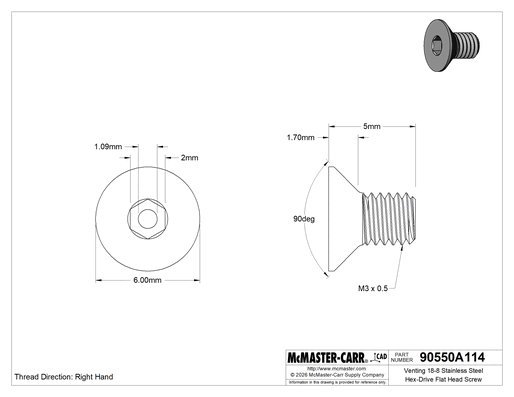

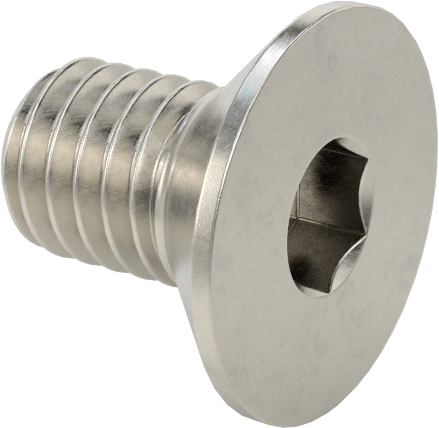

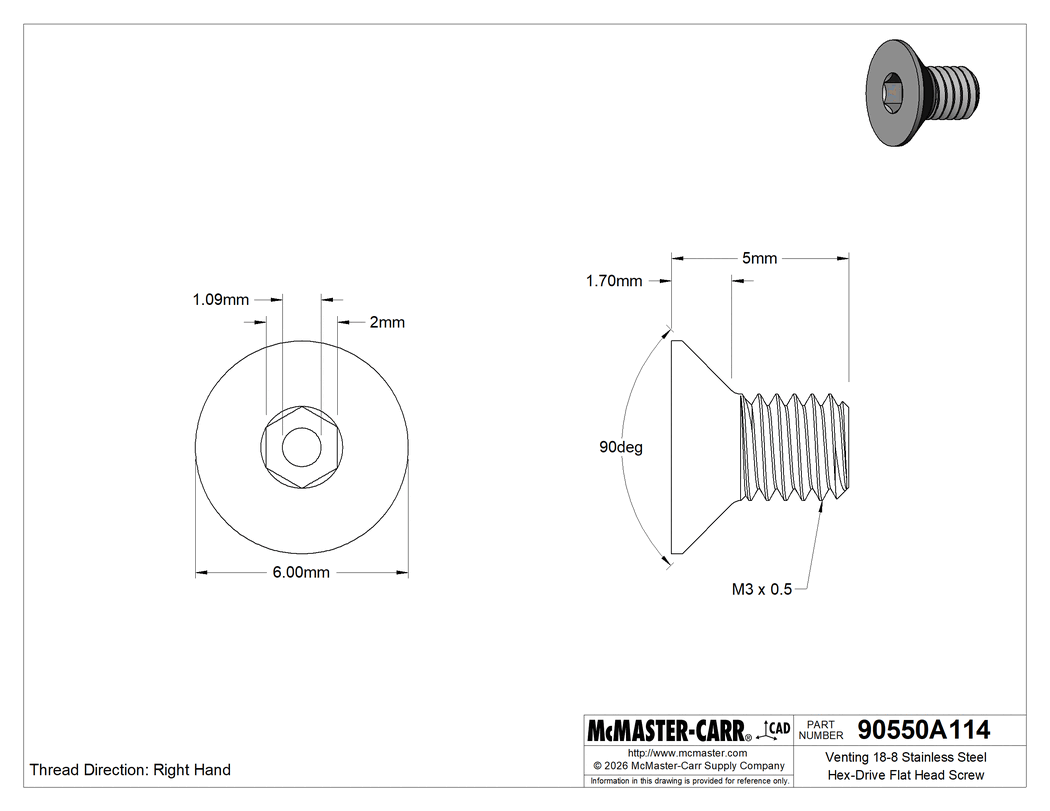

Venting 18-8 Stainless Steel Hex-Drive Flat Head Screw
M3 x 0.5 mm Thread Size, 5 mm Long
Thread Direction | Right Hand |
Drive Style | Hex |
Tip Type | Flat |
Thread Size | M3 |
Thread Pitch | 0.5 mm |
Length | 5 mm |
Countersink Angle | 90° |
Flat Head Profile | Standard |
Head | |
Diameter | 6.00 mm |
Height | 1.70 mm |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Application | Venting |
Construction | Vented |
Drive Size | 2 mm |
Fastener Head Type | Flat |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Vent Diameter | 1.09 mm |
Country of Origin | China, India, Taiwan, United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

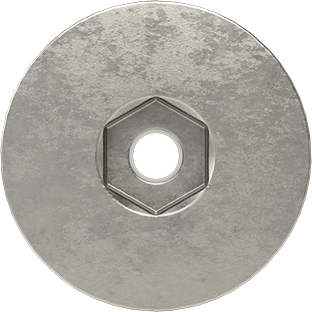

Prevent the buildup of pressure or vacuum in sealed spaces. These screws have a hole drilled through their center that lets air, fluid, and gases escape. They're often used to release trapped gases and equalize pressure caused by high temperatures in coating, curing, and heating applications. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver without slipping and stripping the drive.
Length is measured from the top of the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
Standard Profile—Standard-profile heads are the most common choice for flat head screws.
The information in this 3-D model is provided for reference only.
