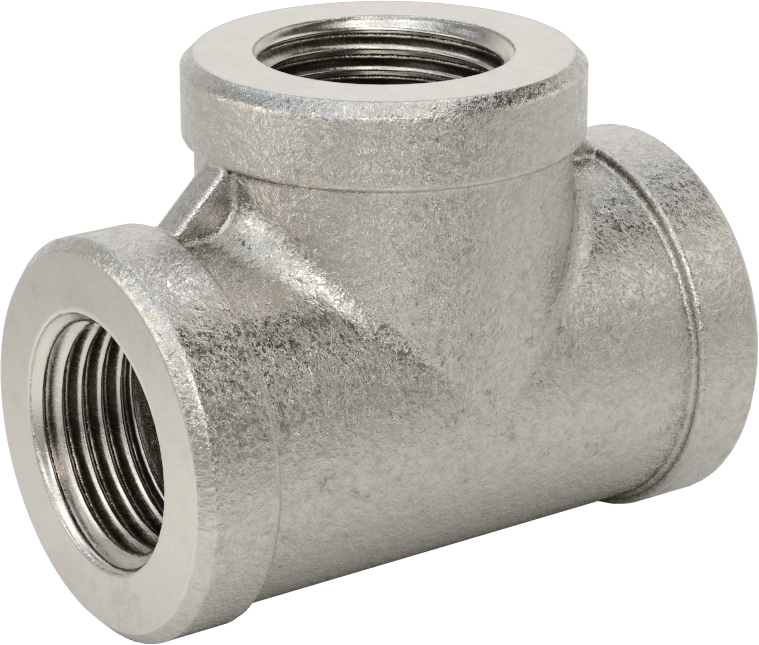

Premium Low-Pressure 304 Stainless Steel Pipe Fitting
with Certificate, Tee Connector, 1/2 NPT Female
Grade | Premium |
Pressure Rating | Low Pressure |
Shape | Tee |
Fitting Type | Connector |
Fitting Connection | NPT Female |
Material | 304 Stainless Steel |
Pipe Size | 1/2 |
Pressure Class | 150 |
Maximum Pressure @ Temperature | 300 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 150 psi @ 350° F |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Connects To | Pipe |
Fabrication | Heat Treated |
For Flange | |
Class | 150 |
Material | 304 Stainless Steel, 304/304L Stainless Steel |
For Pipe Material | 304 Stainless Steel, 304/304L Stainless Steel |
For Pipe Schedule | 40 |
For Use With | Air, Natural Gas, Oil, Steam, Water |
Performance | Chemical Resistant, Corrosion Resistant |
Specifications Met | ANSI/MSS SP-114, ASTM A351 |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730723.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Unlike other stainless steel fittings, these are cast in the U.S. for superior quality. As another marker of quality, they come with a certificate with a traceable lot number and test report that guarantees material composition. All fittings except plugs adhere to ANSI/MSS SP-114 standards for heat treating, material thickness, and marking. It’s the highest quality standard for Pressure Class 150 low-pressure stainless steel fittings. They also meet either ASTM A351 or A479 requirements for parts that will be used in pressure systems. These stainless steel fittings are more corrosion resistant than steel fittings, and almost as strong.
304 Stainless Steel—Fittings hold up in humid, damp, and washdown environments but will corrode if exposed to salt water or chemicals.
ANSI/MSS SP-114—Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking.

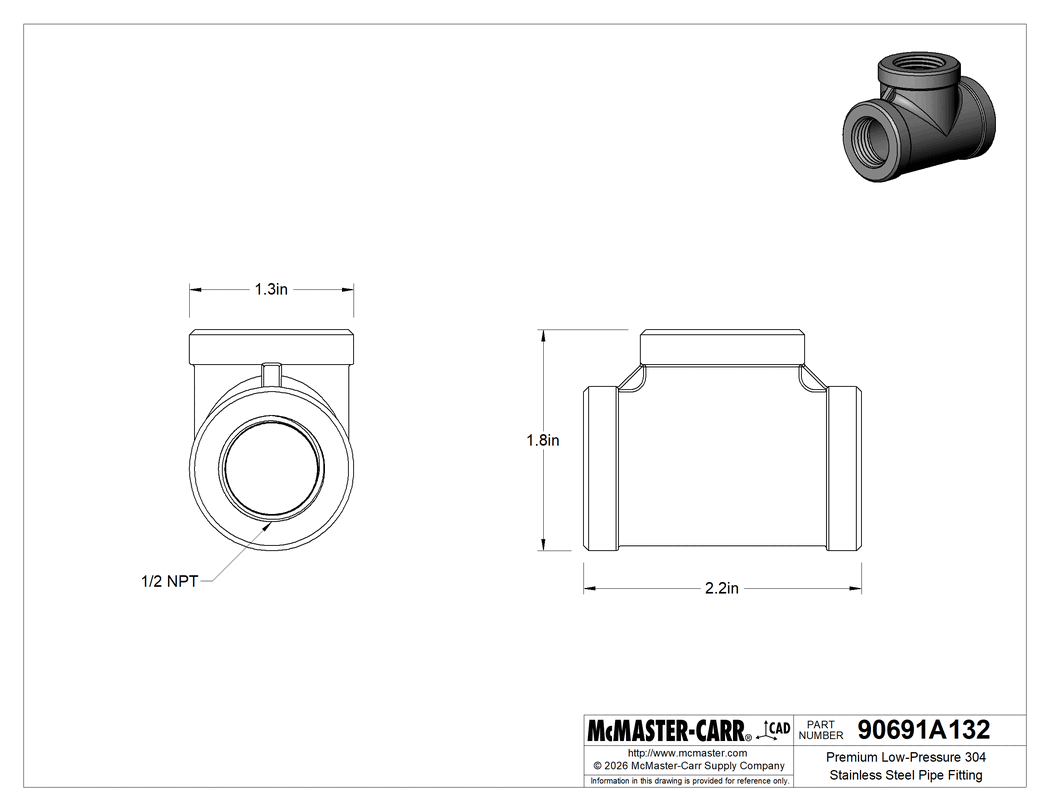

The information in this 3-D model is provided for reference only.
