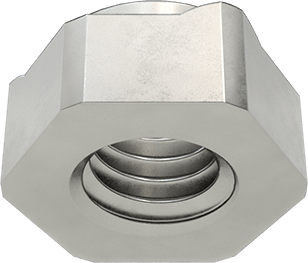

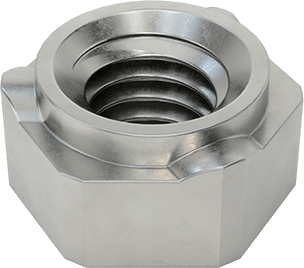

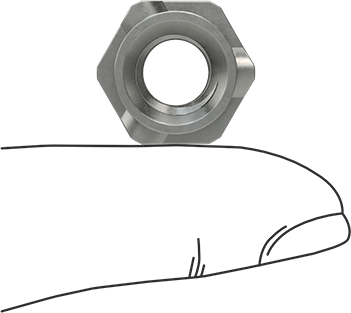

Steel Screw-Locking Hex Weld Nuts
3/8"-16 Thread Size, 5/8" Wide
Thread Direction | Right Hand |
Weld Nut Shape | Hex |
Material | Steel |
Thread Size | 3/8"-16 |
Width | 5/8" |
Height | 1/4" |
Collar | |
Diameter | 17/32" |
Height | 0.085" |
For Hole Diameter | 35/64" |
Internal Locking Type | Distorted Thread |
Number of Projections | 3 |
Nut Type | Locknut, Weld, Hex |
Performance | Easy Weld |
System of Measurement | Inch |
Thread | |
Type | UNC |
Spacing | Coarse |
Fit | Unified Standard Class 2B |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

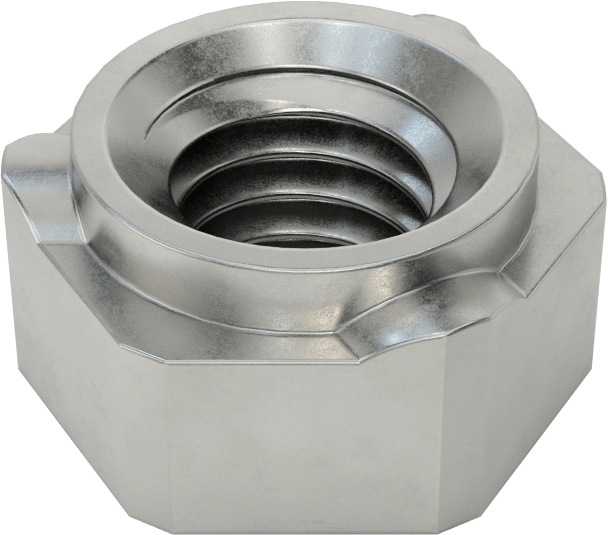

Prevent screws from backing out under heavy vibration. These nuts have distorted threads that grip screws tightly. Three evenly spaced projections concentrate heat away from the threads to prevent them from deforming and create consistent welds. These nuts also have a collar pilot that guides the nut into the hole, holds it in place while welding, and protects the threads from weld spatter.
Use Grade 2 or Class 6 screws to avoid stripping threads during installation. Distorted threads require high torque for fastening and unfastening, so you may need an impact wrench to remove screws.
Steel—Best for dry environments since moisture will cause them to rust. Made of uncoated steel, these nuts require minimal prep. Weld them to uncoated steel surfaces.

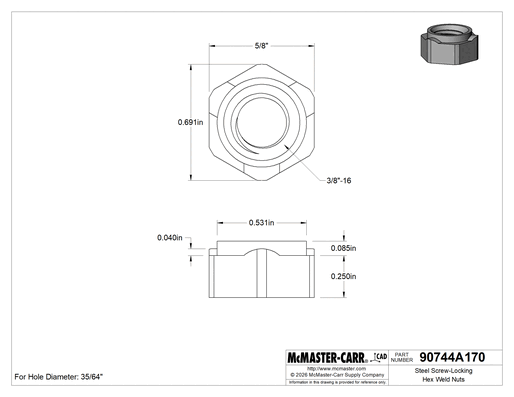

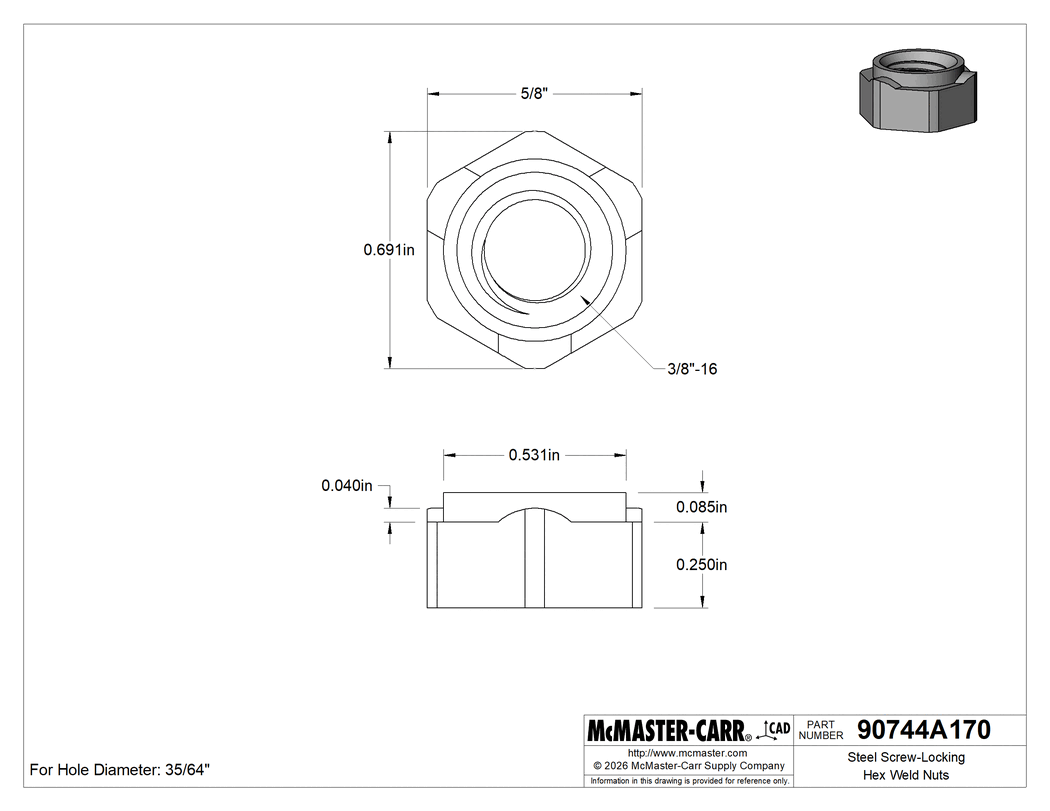

The information in this 3-D model is provided for reference only.
