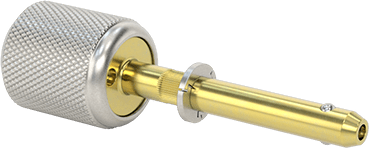

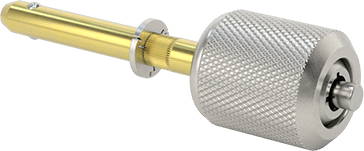

Double-Locking Quick-Release Pin with Key
1/4" Diameter, 1" Usable Length
Fastener Head Type | Knob |
Shaft Type | Plain |
Material | Zinc-Yellow-Chromate-Plated Alloy Steel |
Diameter | 1/4" |
Diameter Tolerance | -0.004" to -0.001" |
Usable Length | 1" |
Diameter at Extended Ball Height | 0.284" |
Double Shear Breaking Strength | 8,200 lbf |
Minimum Hardness | Rockwell C33 |
Number of Keys Included | 2 |
Ball Material | 440C Stainless Steel |
Button Style | Raised |
End Shape | Chamfer |
End Type | Spring-Loaded Ball |
Handle Material | Chrome-Plated Zinc Alloy |
Lock Release | Push Button, Key |
Number of Retaining Balls | 2 |
Performance | Double Locking, High Strength, Self-Locking |
Pin Type | Quick Release |
Spring Material | 18-8 Stainless Steel |
Steel Grade | 4037 Alloy Steel |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Limit who can remove these pins by requiring a key. Unlike double-locking pins with a cotter, you only need access to one side of these pins to remove them. Unlock and the button pops out so you can push it to release the retaining balls.
High-Strength Zinc-Yellow-Chromate-Plated Alloy Steel—Our strongest, most wear-resistant pins. The durable zinc plating makes them suitable for wet and outdoor environments, but it won't hold up to the harsh chemicals that stainless steel can.

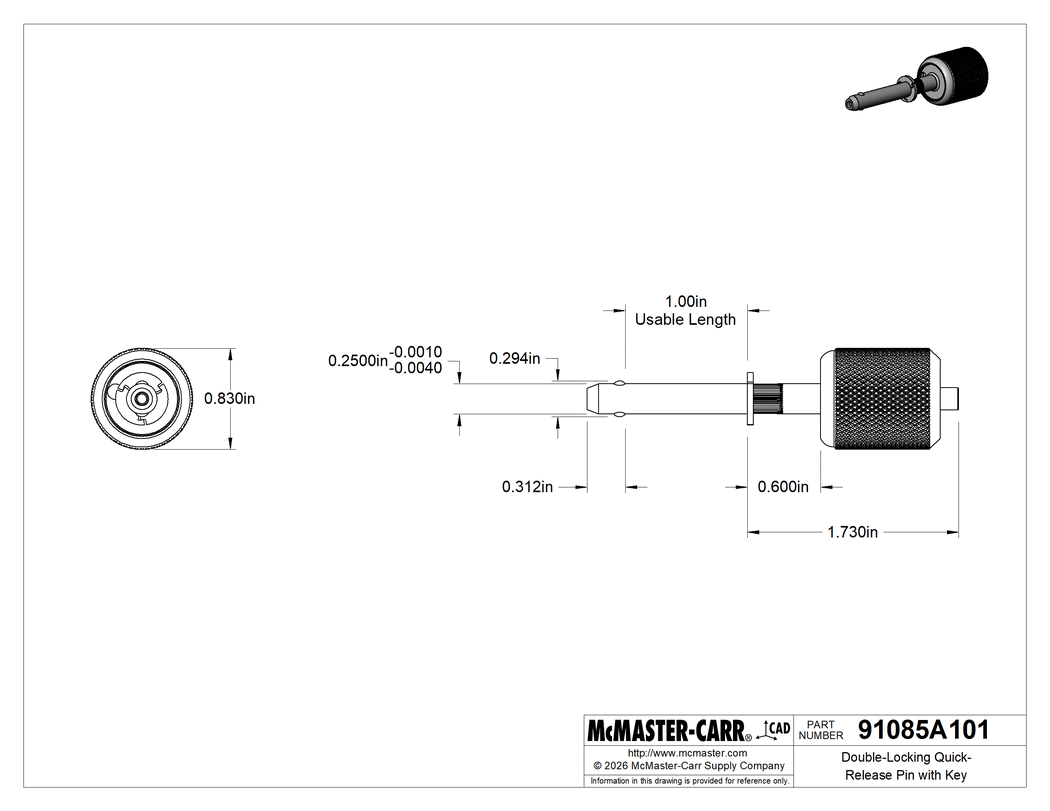

The information in this 3-D model is provided for reference only.
