    High-Temperature 321 Stainless Steel Mil.Spec.Washer

    for 1" Screw Size, 1.026" ID, 1.562" OD, MS9549-19

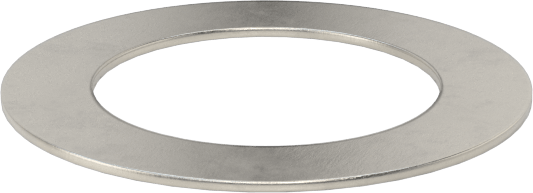

    Image of Product. Bottom orientation. High-Temperature 321 Stainless Steel Mil.Spec.Washer, for 1" Screw Size, 1.026" ID, 1.562" OD, MS9549-19.

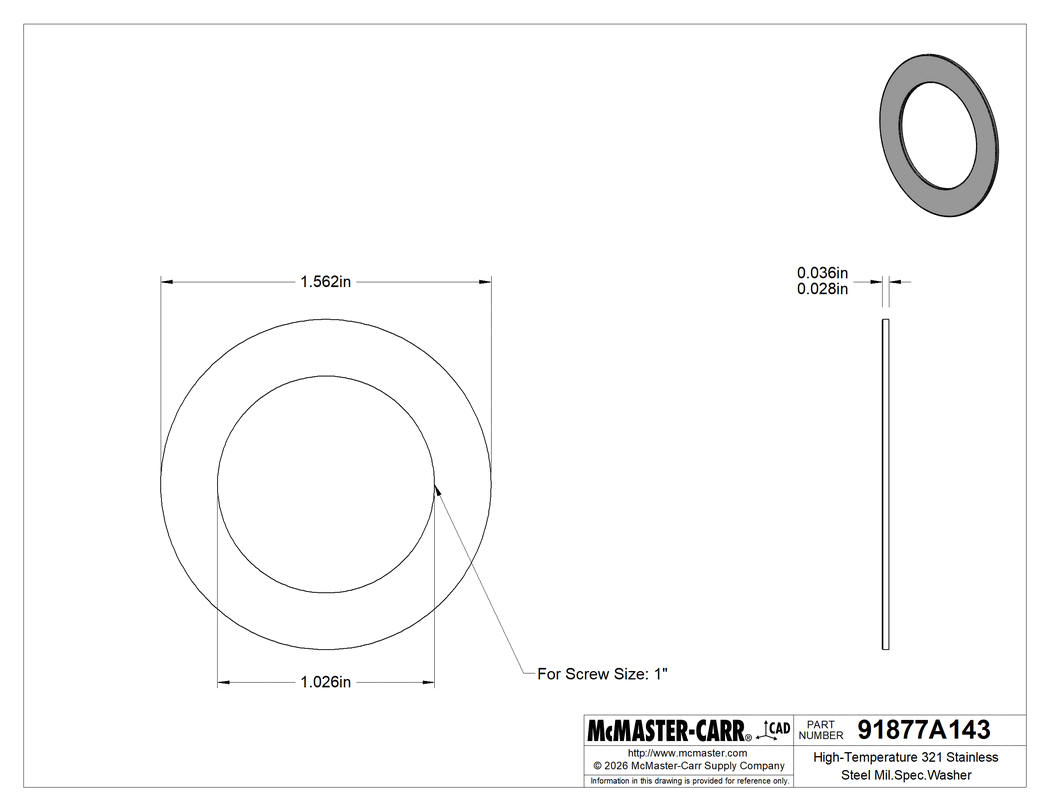

    Technical Drawing of High-Temperature 321 Stainless Steel Mil.Spec.Washer, for 1" Screw Size, 1.026" ID, 1.562" OD, MS9549-19.

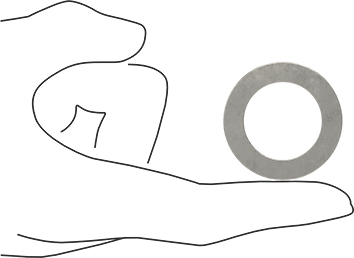

    Image of Product. Side1 orientation. Contains SizingReference. High-Temperature 321 Stainless Steel Mil.Spec.Washer, for 1" Screw Size, 1.026" ID, 1.562" OD, MS9549-19.
    2-D PDF
    000000 per pack of 5
    91877A143
    In stock
    91877A143
    000000 per pack of 5
    Pack of 5
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    321 Stainless Steel

    For Screw Size

    1"

    ID

    1.026"

    OD

    1.562"

    Thickness

    0.028" to 0.036"

    Military Specification

    MS9549-19

    Certification

    Mil. Spec.

    Hardness

    Rockwell B60

    Performance

    Corrosion Resistant, High Temperature

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These washers are manufactured and tested to strict U.S. military standards for material and construction. They take the pressure off screws and nuts to protect mounting surfaces.

    High-Temperature 321 Stainless Steel—The best stainless steel for high-temperature applications. These washers won't deform or lose strength when exposed to high heat up to 1500° F. They resist corrosion from mild cleaners, such as ammonia and acetone, but they can't withstand salt water or harsh chemicals as well as 316 stainless steel.

    The information in this 3-D model is provided for reference only.
