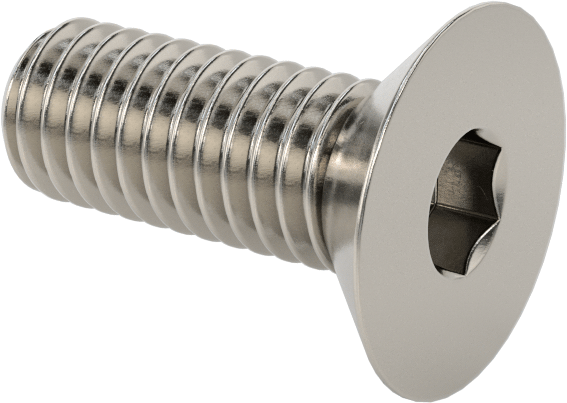

18-8 Stainless Steel Hex-Drive Flat Head Screw
M6 x 1 mm Thread Size, 16 mm Long
Thread Direction | Right Hand |
Drive Style | Hex |
Tip Type | Flat |
Thread Size | M6 |
Thread Pitch | 1 mm |
Length | 16 mm |
Countersink Angle | 90° |
Flat Head Profile | Standard |
Head | |
Diameter | 12 mm |
Height | 3.3 mm |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Specifications Met | DIN 7991 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Drive Size | 4 mm |
Fastener Head Type | Flat |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The most corrosion-resistant hex-drive flat head screws we offer. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals, but they're not as strong as alloy steel. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver without slipping and stripping the drive.
Length is measured from the top of the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
Standard Profile—Standard-profile heads are the most common choice for flat head screws.

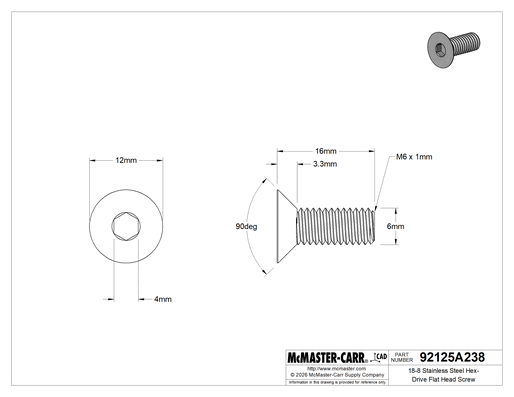

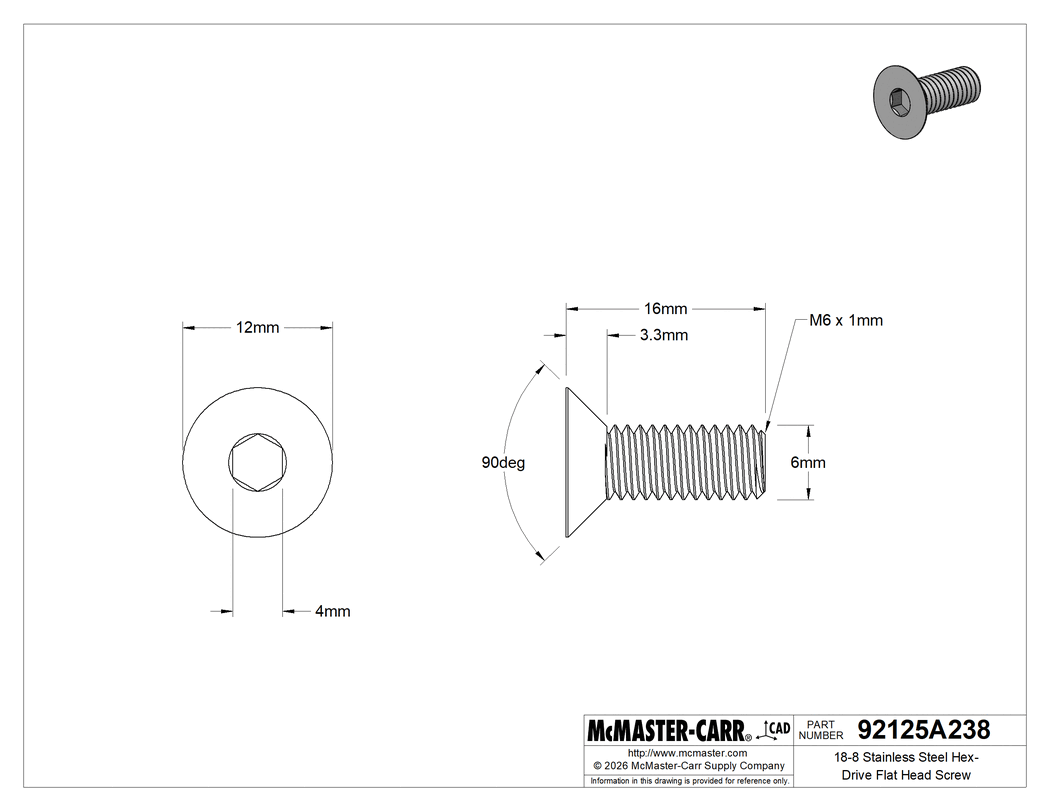

The information in this 3-D model is provided for reference only.
