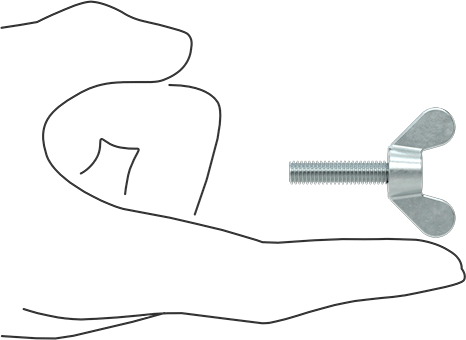

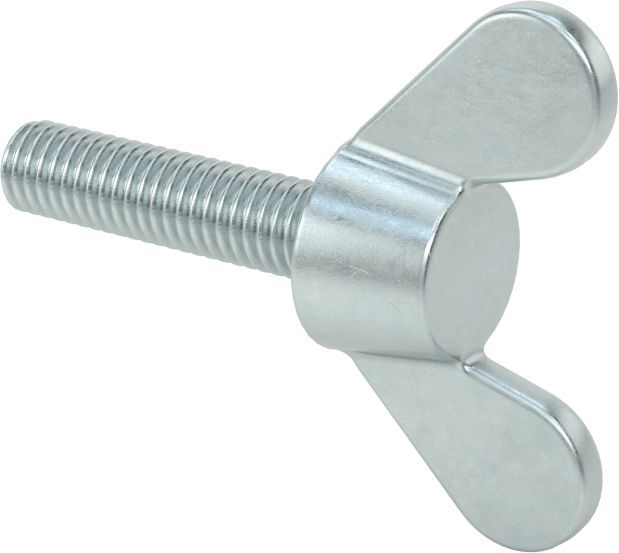

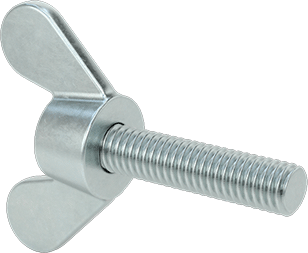

Iron Wing-Head Thumb Screw
M6 x 1mm Thread Size, 25mm Long
Fastener Head Type | Thumb |
Grip Style | Wing |
Tip Type | Flat |
Material | Zinc-Plated Iron |
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Length | 25 mm |
Head | |
Diameter | 13 mm |
Diameter Tolerance | -3 mm to 0 mm |
Height | 17 mm |
Width | 33 mm |
Threading | Fully Threaded |
Tensile Strength | Not Rated |
Specifications Met | DIN 316 |
Fabrication | Cast |
Hardness | Not Rated |
System of Measurement | Metric |
Country of Origin | Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The wing shape on these thumb screws offers more leverage than spade head thumb screws. Use these screws to fasten panels and covers that need frequent access. They are best for areas with occasional exposure to moisture.
Length is measured from under the head.

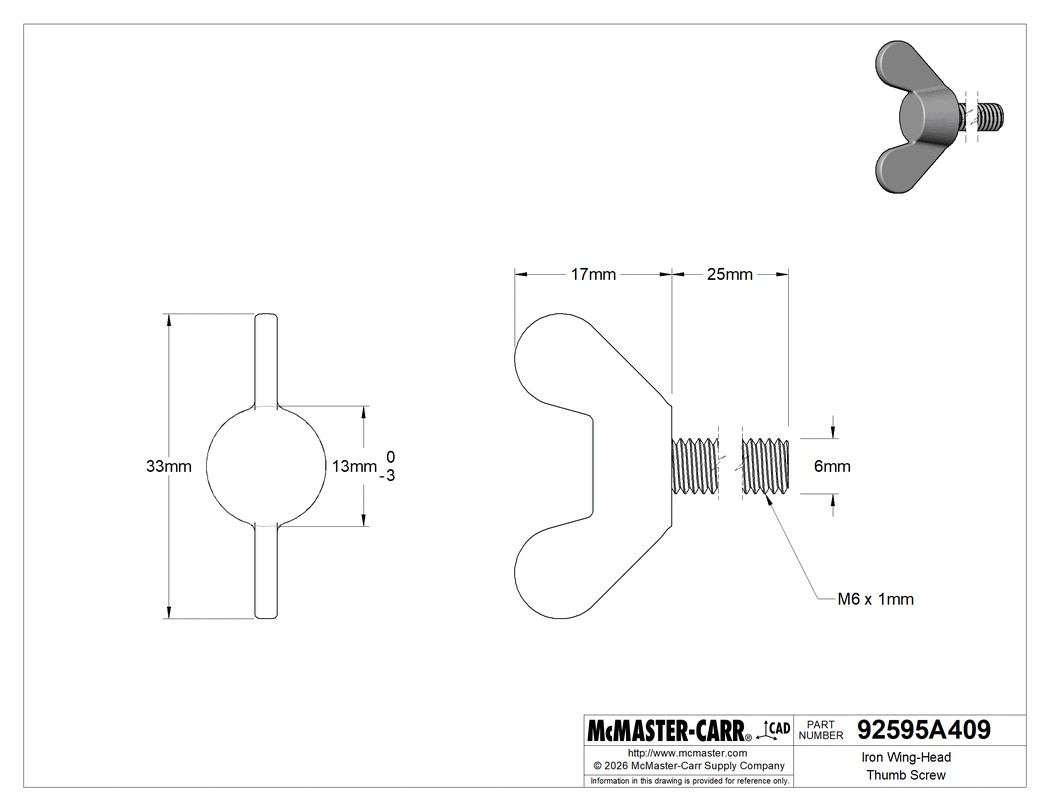

The information in this 3-D model is provided for reference only.
