    Conveyor Guide

    Clamp for 1 Line, 1" Wide, 0.85" High

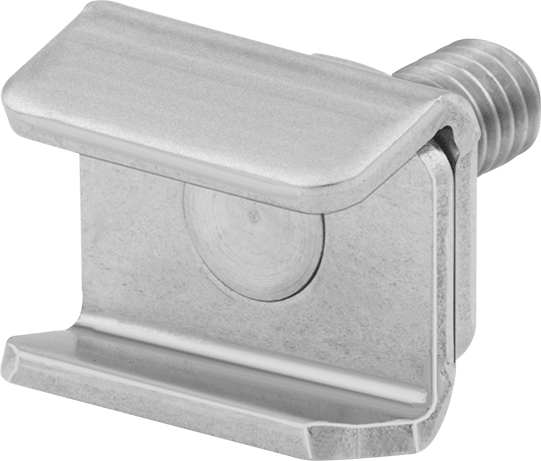

    Image of Product. Front orientation. Conveyor Guide Clamp for 1 Line, 1" Wide, 0.85" High.

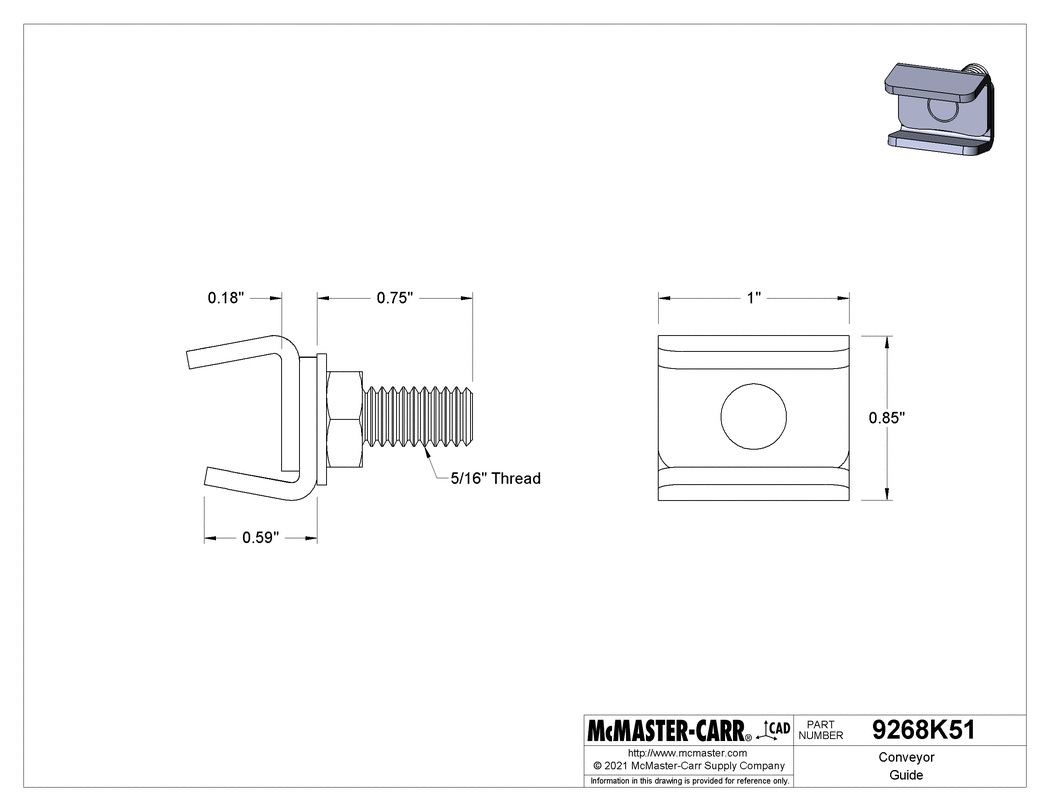

    Technical Drawing of Conveyor Guide Clamp for 1 Line, 1" Wide, 0.85" High.

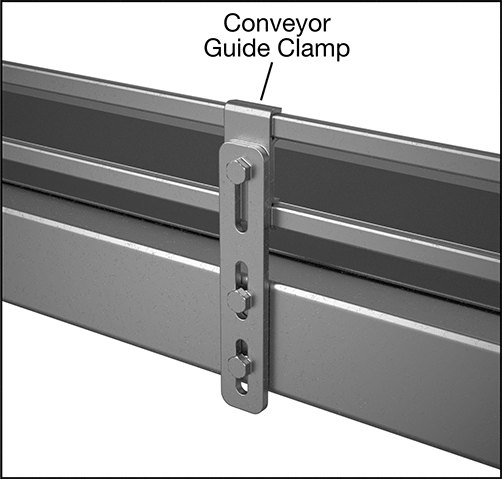

    Image of ProductInUse. Front orientation. Contains Annotated, Border. Conveyor Guide Clamp for 1 Line, 1" Wide, 0.85" High.
    2-D PDF
    00000 each
    9268K51
    In stock
    9268K51
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Number of Lines

    1

    Style

    A

    Width

    1.00"

    Height

    0.85"

    For Channel Height

    0.67"

    Thread Size

    5/16"-18

    Material

    Stainless Steel

    Component

    Guide Clamp

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820570.0090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Clamps hold guide rails in place or join ends of a rail together. Use some clamps with threaded mounting rods or mounting brackets to hold guide rails in place. Some clamps have a tight-fitting sleeve to join two guide rails.

    Style A—Styles A, L, N, and P have an integrated bolts and nuts for easy mounting and a stronger connection. Style N tightens with knobs.

    The information in this 3-D model is provided for reference only.
