    Plastic Bracket with Mounting Holes for Vertical Rod

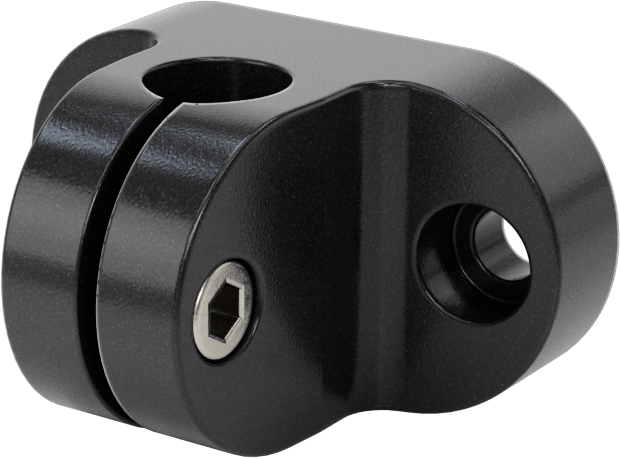

    Image of Product. Front orientation. Plastic Bracket with Mounting Holes for Vertical Rod.

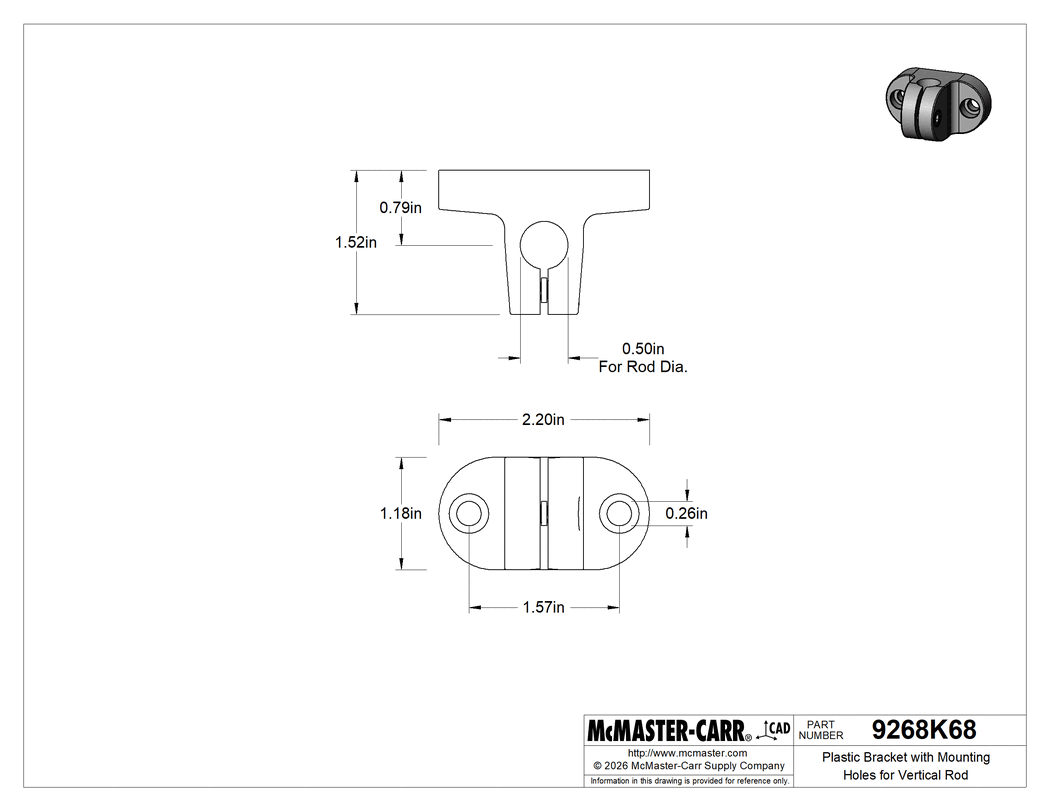

    Technical Drawing of Plastic Bracket with Mounting Holes for Vertical Rod.

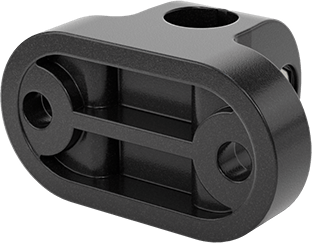

    Image of Product. Back orientation. Plastic Bracket with Mounting Holes for Vertical Rod.

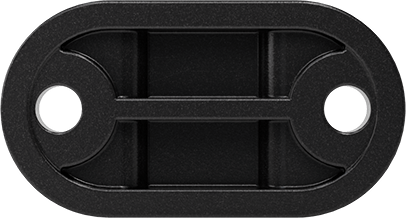

    Image of Product. Back orientation. Plastic Bracket with Mounting Holes for Vertical Rod.

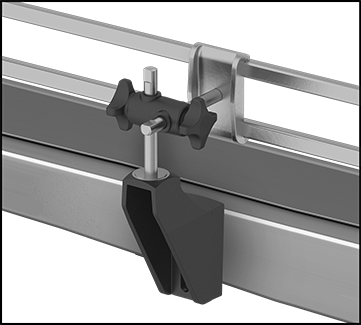

    Image of ProductInUse. Rod Mounted Vertically with Bracket (Rod Not Included). Front orientation. Contains Border. Plastic Bracket with Mounting Holes for Vertical Rod.
    Rod Mounted Vertically with Bracket (Rod Not Included)
    Image of Product. Side1 orientation. Contains SizingReference. Plastic Bracket with Mounting Holes for Vertical Rod.
    2-D PDF
    000000 each
    9268K68
    In stock
    9268K68
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Component

    Mounting Rod Bracket

    For Rod Orientation

    Vertical

    Bracket Movement

    Fixed

    Material

    Plastic

    For Rod Shape

    Round

    Style

    B

    For Rod Diameter

    1/2"

    Distance to Rod Center

    0.78"

    Mounting Fasteners Included

    No

    Mounting Hole

    Diameter

    0.250"

    Center-to-Center

    1.59"

    Color

    Black

    Mount Type

    Bolt On

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820570.0090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Brackets mount to the frame of a conveyor to hold mounting rods.

    Style B—Style B brackets have grooves to accept square rods.

    The information in this 3-D model is provided for reference only.
