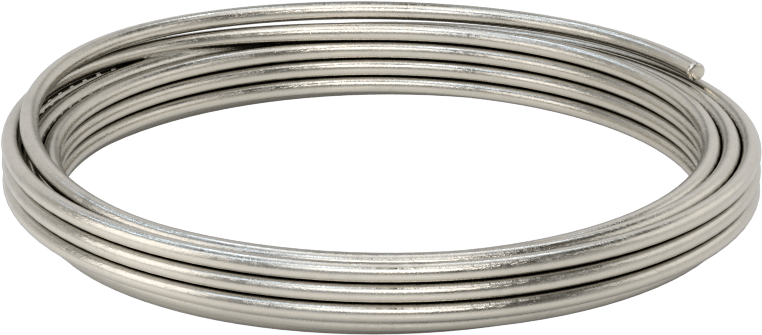

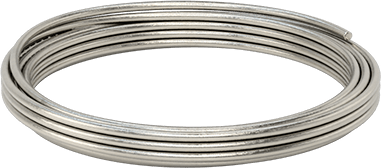

Bend-and-Stay Corrosion-Resistant 316 Stainless Steel Wire
30 Feet Long Coil, Matte, 0.162" Diameter
Flexibility | Bend and Stay |
Profile | Round |
Material | 316/316L Stainless Steel |
Diameter | 0.162" |
Diameter Tolerance | -0.001" to 0.001" |
Length | 30 ft. |
Container Type | Coil |
Fabrication | Cold Drawn |
Specifications Met | ASTM A580 |
Appearance | Matte |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Elongation | 35% |
Hardness | Not Rated |
Heat Treatable | No |
Heat Treatment | Annealed |
Magnetic Properties | Nonmagnetic |
Maximum Temperature | 400° F |
Minimum Temperature | Not Rated |
Performance | Highly Corrosion Resistant, Highly Chemical Resistant, High Strength, Ultra Formable, Ultra Weldable |
Shape | Wire |
Tensile Strength | 70,000 psi |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 722300.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
When bent, this wire will stay in place. It is widely used as tying and locking wire.
316/316L Stainless Steel—Dual certified to meet both 316 and 316L requirements. The low carbon content makes this stainless steel easy to weld while maintaining strength and corrosion resistance.

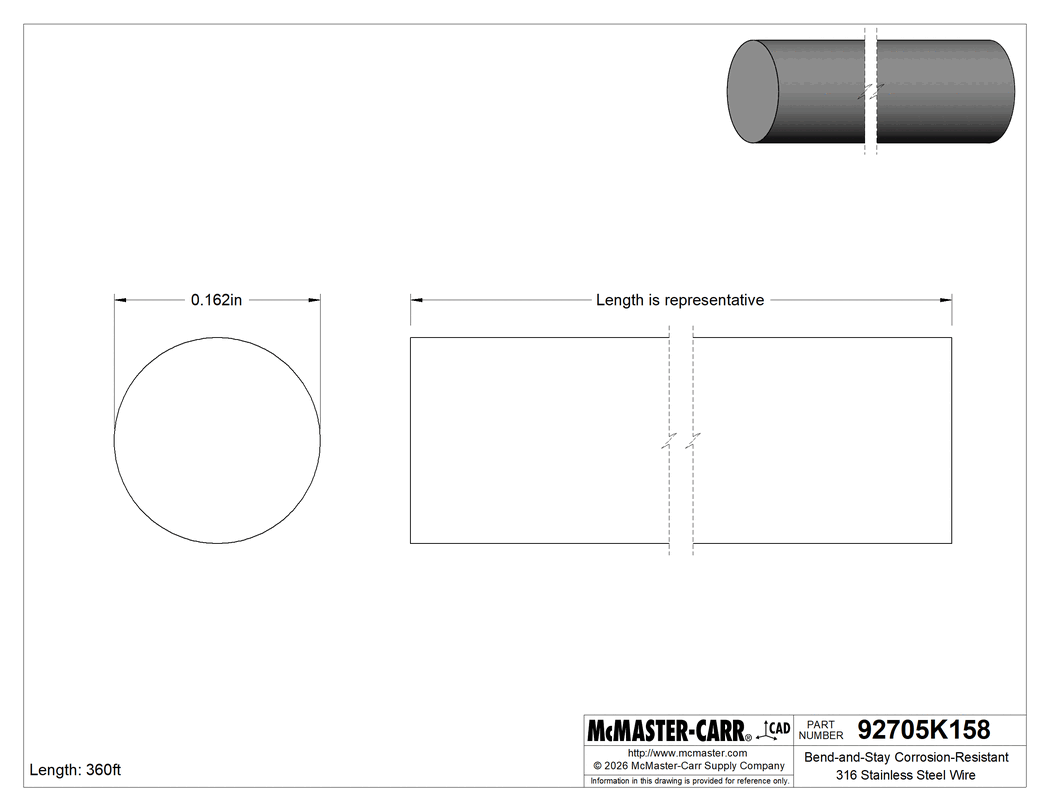

The information in this 3-D model is provided for reference only.
