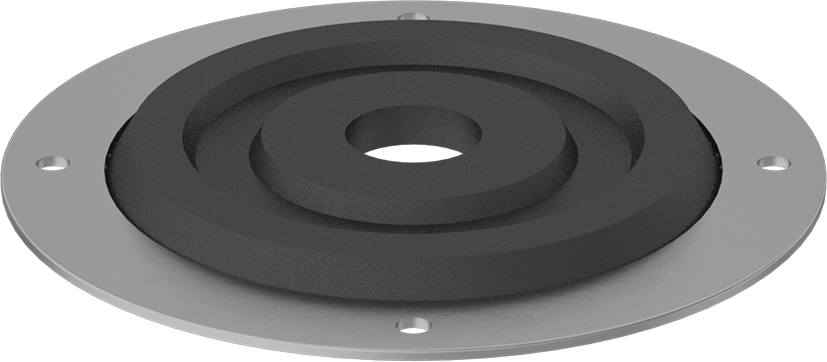

Sealing Grommet
with 3" Diameter Flange, 0.5" ID

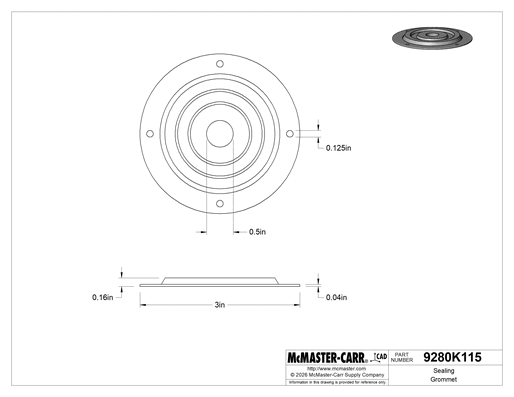

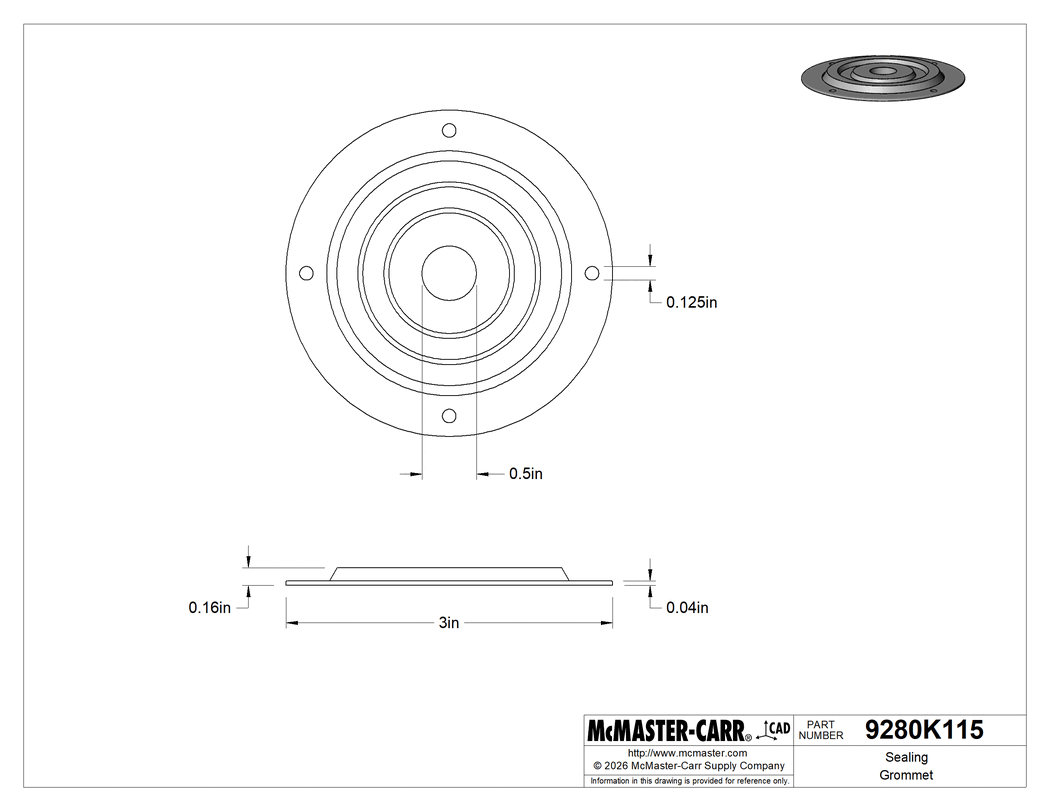

2-D PDF
000000 each
9280K115
In stock
9280K115
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Mount Type | Screw On |
For Use With | Wire, Cable, Cords |
Style | 1 |
Finished Material | Buna-N |
Flange Material | Aluminum |
ID | 0.5" |
Flange Diameter | 3" |
Overall Height | 0.16" |
Temperature | -20° F to 220° F |
For Use Outdoors | Yes |
Color | Black |
Mounting | |
Number of Holes | 4 |
Fasteners Included | No |
Hole Diameter | 1/8" |
Application | Sealing |
Environment | Outdoor |
Hardness | Not Rated |
Hardness Rating | Not Rated |
Performance | Corrosion Resistant, Oil Resistant |
Shape | Round |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.4500 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The center hole seals around wire, cable, and cords to keep out debris and splashing liquid. Screw the flange onto the surface so moisture can’t leak through your panel.
Oil-Resistant Buna-N—These resist oil and fuels better than other rubber grommets. Use them on frequently lubricated machinery and oily equipment, such as engines and pumps.
The information in this 3-D model is provided for reference only.
