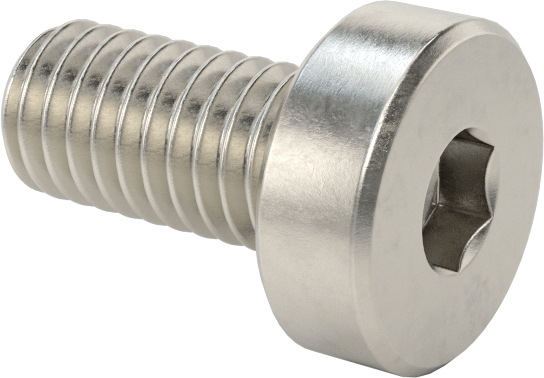

18-8 Stainless Steel Low-Profile Socket Head Screws
with Hex Drive, M3 x 0.5 mm Thread, 6 mm Long
Thread | |
Size | M3 |
Spacing | Coarse |
Pitch | 0.5 mm |
Type | Metric |
Fit | Metric Class 6g |
Direction | Right Hand |
Socket Head Profile | Low |
Fastener Head Type | Socket |
Drive Style | Hex |
Length | 6 mm |
Head | |
Diameter | 5.5 mm |
Height | 2 mm |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Drive Size | 2 mm |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Performance | Corrosion Resistant |
Specifications Met | DIN 7984 |
System of Measurement | Metric |
Tip Type | Flat |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
With a head approximately half the height of standard-profile ones, these corrosion-resistant screws are less likely to snag on components. However, they aren't as strong as stainless steel screws with larger heads. Tighten with a hex key.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel screws can.

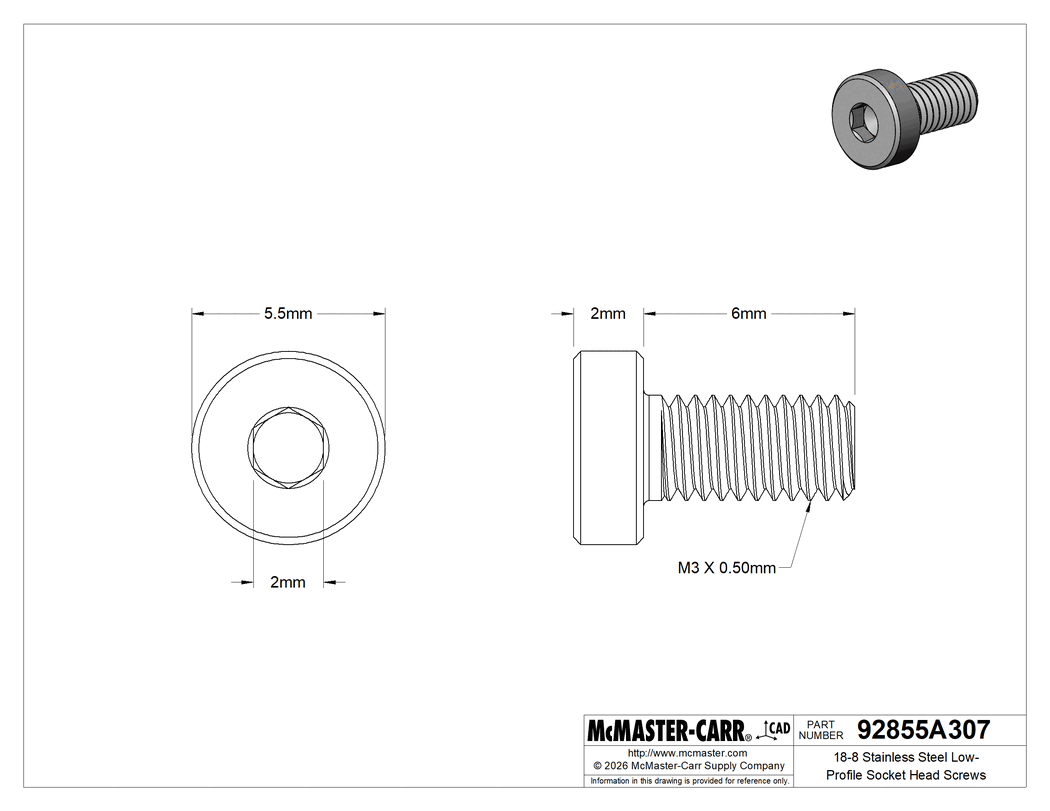

The information in this 3-D model is provided for reference only.
