SBR Rubber Push-and-Stay Bumper
for 1/4" ID and 1/8" Thickness, 11/32" Ridge Diameter, 1/8" High
Material | SBR |
Style | 1 |
For ID | 1/4" |
Ridge Diameter | 11/32" |
For Material Thickness | 1/8" |
OD | 9/16" |
Height | 1/8" |
Hardness | Durometer 60A |
Hardness Rating | Medium Hard |
Color | Black |
Temperature | -20° F to 180° F |
Nonmarking | No |
For Use Outdoors | No |
Application | Multipurpose |
Mount Type | Push In |
Performance | Abrasion Resistant, Stay Put |
Shape | Round |
System of Measurement | Inch |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 401699.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With a ridge on the stem, these bumpers grip tighter than other push-in bumpers, so they won't pop out from vibration and sudden bumps. They act as both bumper and plug, protecting equipment from impact while sealing off holes from dirt, dust, and water. From electronics feet to spacers, they have a wide variety of uses. Just push them into a hole for quick installation.
Multipurpose SBR Rubber—These bumpers absorb impact well enough for most applications. However, they're not for use outdoors and break down when exposed to oil and harsh chemicals.
Hardness Rating—The harder the bumper, the better it withstands impact and abrasion over time. The softer the bumper, the more cushioning it provides for objects made of glass, soft metal, and other fragile materials. Bumpers with a medium rating offer a balance of impact resistance and cushioning.

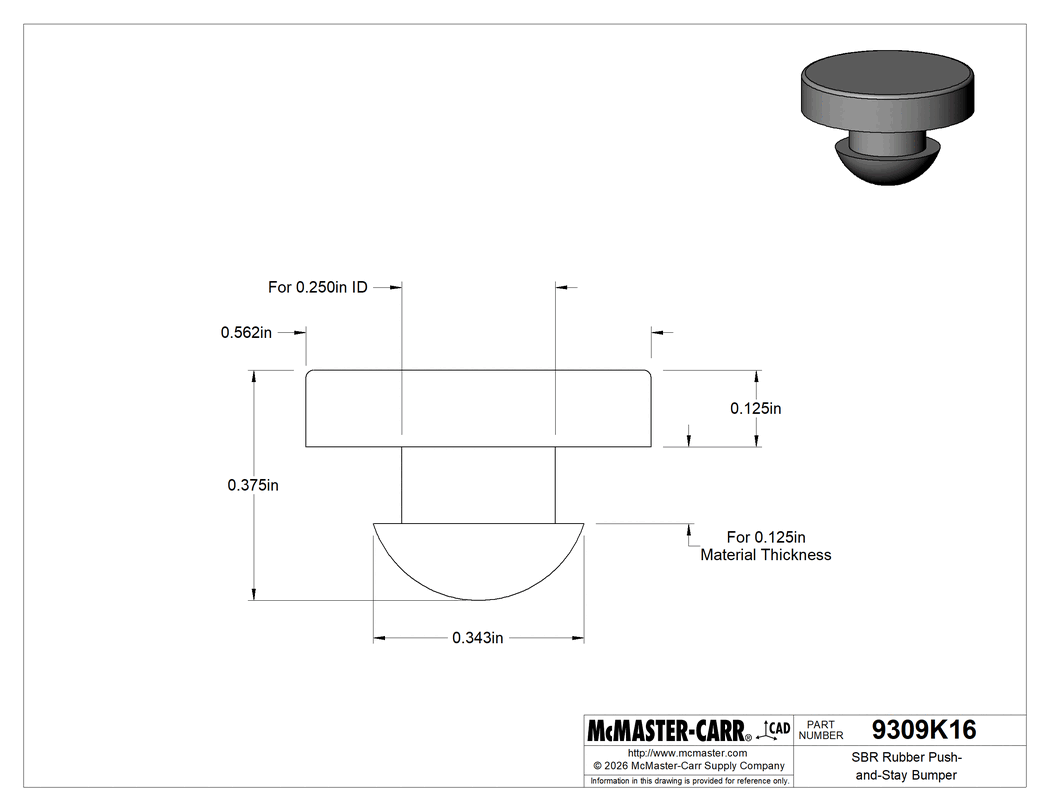

The information in this 3-D model is provided for reference only.
