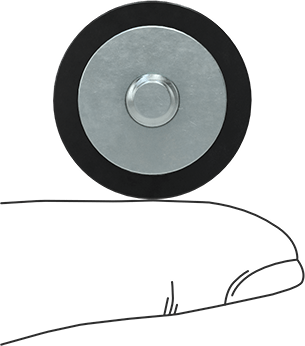

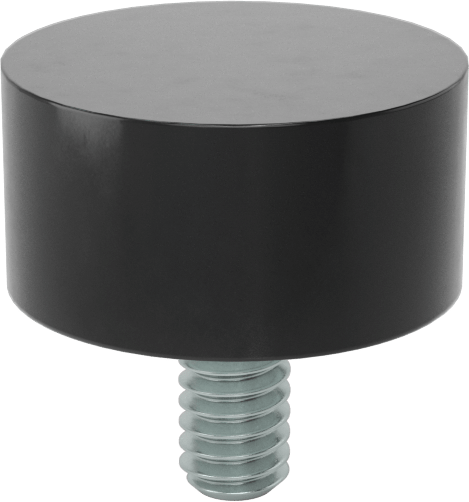

Load-Rated Reinforced Threaded Bumper
Natural Rubber, Steel Plate and 1/4"-20 Stud, 210 lbs. Maximum
Material | Natural Rubber |
Stud Material | Steel |
Base Plate Material | Steel |
Style | 1 |
Thread | |
Size | 1/4"-20 |
Length | 1/2" |
OD | 1" |
Height | 1/2" |
Maximum Load | 210 lb. |
Deflection @ Capacity | 0.1" |
Hardness | Durometer 50A |
Hardness Rating | Medium |
Color | Black |
Temperature | -10° F to 150° F |
Nonmarking | No |
For Use Outdoors | No |
Construction | Reinforced |
Mount Type | Threaded Stud |
Performance | Load Rated, Abrasion Resistant |
Reinforcement Type | Base Plate |
Shape | Round |
System of Measurement | Inch |
Country of Origin | Hungary |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(a) |
Schedule B Number | 401699.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Tested to support the load of your application. These bumpers support a wide range of equipment—from a 50 lb. saw to a 5,000 lb. air compressor. They also help reduce vibration and protect whatever they’re mounted to. All have a metal base plate for added strength and a longer service life than all-rubber bumpers. No separate fasteners are needed—just twist them into a threaded hole.
Natural Rubber—These bumpers absorb impact well enough for most applications. However, they're not for use outdoors and break down when exposed to oil and harsh chemicals.
Hardness Rating—The harder the bumper, the better it withstands impact and abrasion over time. The softer the bumper, the more cushioning it provides for objects made of glass, soft metal, and other fragile materials. Bumpers with a medium rating offer a balance of impact resistance and cushioning.

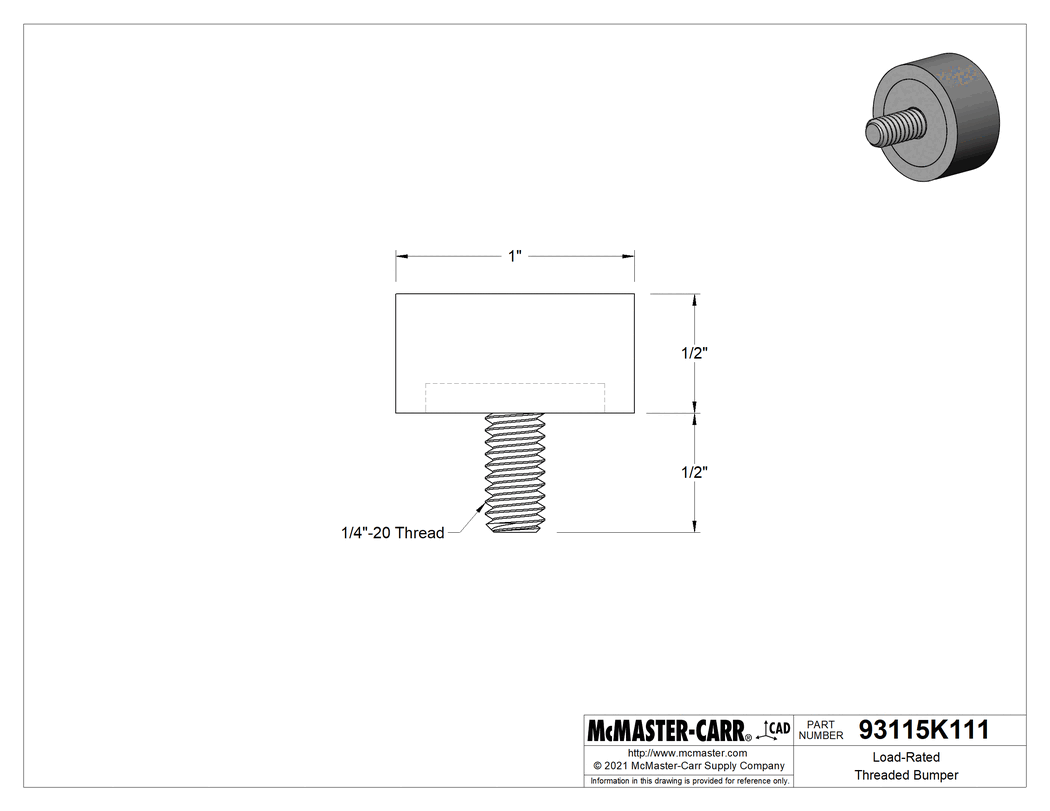

The information in this 3-D model is provided for reference only.
