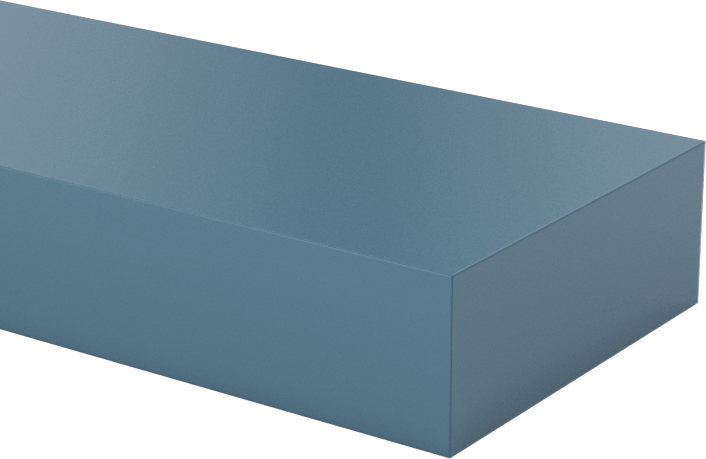

Glass-Filled Slippery UHMW Polyethylene
Abrasion-Resistant, 3/8" Thick, 1" Wide, 5 Feet Long
Color | Blue |
Thickness | 0.375" |
Thickness Tolerance | -0.038" to 0.038" |
Length | 5 ft. |
Length Tolerance | -1/8" to 1/8" |
Width | 1" |
Width Tolerance | -1/8" to 1/8" |
Fabrication | Extruded |
Minimum Temperature | -40° F |
Maximum Temperature | 180° F |
Tensile Strength | 5,600 psi |
Impact Strength | No Break |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Acetone, Diesel Fuel, Gasoline, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Vegetable Oil, Water |
Moderate | Chlorine |
Not Rated | Nitric Acid |
Not Recommended | Coolant, Fuel Oil, Heating Oil, Synthetic Oil |
Clarity | Opaque |
Coefficient of Friction | 0.12 |
Coefficient of Thermal Expansion | 1.1 × 10^-4 /°F |
Comparable To | Duravar, Lennite, Polystone, TIVAR |
Dielectric Strength | 2,300 V/mil |
Filler Material | Glass |
Density | 0.034 lb/in³ |
Flexibility | Flexible |
Flexural Modulus | 70,000 psi |
For Use Outdoors | No |
For Use With | Acetic Acid (White Vinegar), Acetone, Chlorine, Diesel Fuel, Gasoline, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Vegetable Oil, Water |
Hardness | Durometer 69D |
Hardness Rating | Medium |
Material | UHMW Polyethylene |
Percentage of Filler Material | Not Rated |
Performance | Chemical Resistant, Extra High Strength, Ultra Electrically Insulating, Ultra Impact Resistant, Ultra Low Friction, Ultra Moisture Resistant, Wear Resistant |
Shape | Bar |
Specifications Met | ASTM D4020, ASTM D4976, ASTM D6712 |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.01% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392010.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
The addition of glass fibers makes this material more abrasion resistant than standard UHMW. Also known as Tivar 88, these impact-resistant bars are often used as liners for chutes and hoppers because they have a tough, slippery surface that keeps material, including metal, flowing freely.

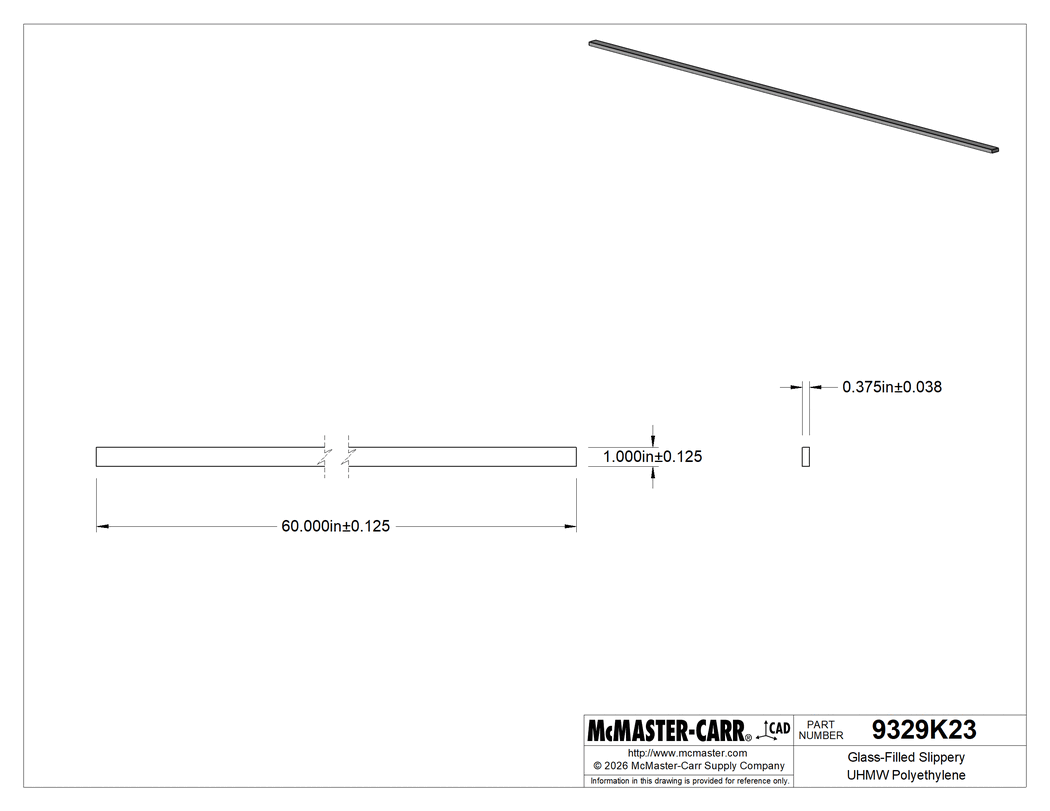

The information in this 3-D model is provided for reference only.
