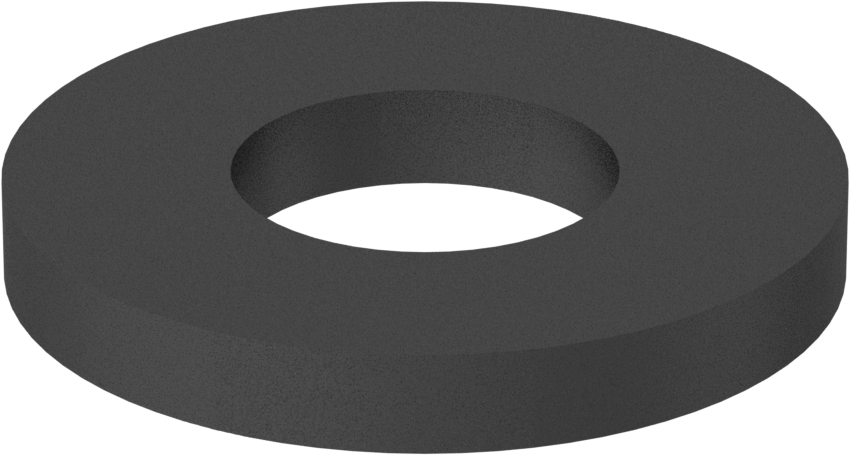

Fluoroelastomer Rubber Sealing Washer
for Number 14 Screw, 0.23" ID, 0.5" OD, 0.052" to 0.072" Thick
For Screw Size | No. 14 |
ID | 0.230" |
OD | 0.500" |
Thickness | 0.052" to 0.072" |
Temperature Range | |
Minimum | -10° F |
Maximum | 400° F |
Color | Black |
Application | Sealing |
Construction | One Piece |
Environment | Dusty, Oily, Outdoor, Wet |
Hardness | Durometer 75A |
Material | Fluoroelastomer |
Performance | Chemical Resistant, High Temperature, Oil Resistant, Reusable, Weather Resistant |
System of Measurement | Inch |
Washer Type | Flat |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.4500 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Prevent leaks while distributing weight evenly under nuts and screws. These washers compress as you tighten to keep air and fluid in, and dust and contaminants out. Use them anywhere you need a tight seal, such as protecting electronics from moisture or keeping lubricants contained in machinery.
Rubber—Resist leaks better than metal sealing washers, but are more susceptible to wear and tear. Reuse these washers a handful of times, as long as the material isn't damaged.
Chemical-Resistant Fluoroelastomer—The best chemical resistance of all our rubber washers. These withstand oil, grease, fuel, solvents, synthetic lubricants, and acids, even at high temperatures. They are also stiffer than other rubber washers, so they are better at distributing weight.
Fasten

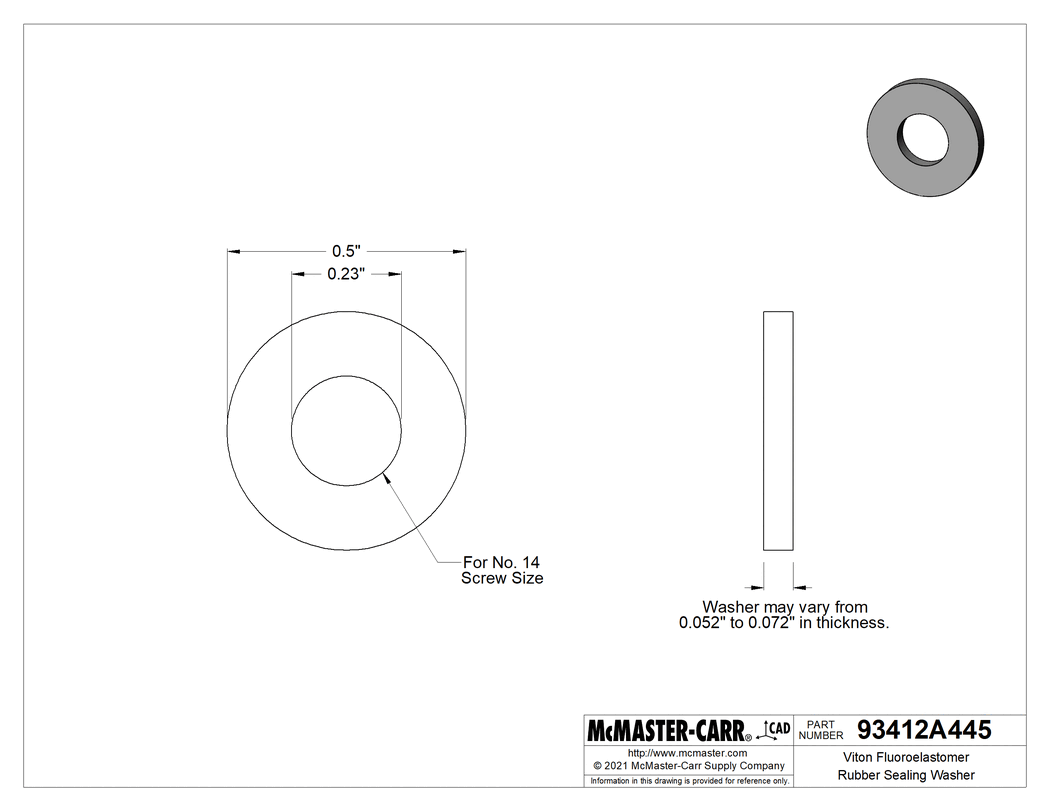

The information in this 3-D model is provided for reference only.
