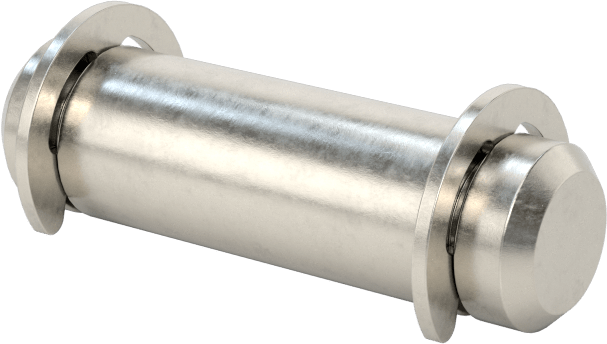

Headless Clevis Pin with Retaining Ring Groove
18-8 Stainless Steel, 8 mm Diameter, 20 mm Usable Length
Fastener Head Type | Headless, Retaining Ring Groove |
End Type | Retaining Ring Groove |
Material | 18-8 Stainless Steel |
Diameter | 8 mm |
Diameter Tolerance | -0.050 mm to 0 mm |
Usable Length | 20 mm |
Minimum Hardness | Rockwell B80 |
Length | 28 mm |
Groove Width | 0.74 mm |
Includes | Two Stainless Steel Retaining Rings |
Passivation | Unpassivated |
Performance | Corrosion Resistant |
Pin Type | Clevis |
Shaft Type | Plain |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Secured with a retaining ring at either end, you can add and remove parts without having to take the pin all the way out. These pins are commonly used with rod ends, hydraulic cylinders, and other pivoting components. In addition to taking up less space than cotter pins, the retaining rings surround the entire pin, so bumps are unlikely to work it loose.
Unlike most cotter pins, which install by hand, you will need retaining ring pliers to insert and remove the included rings.
18-8 Stainless Steel—The choice for wet and outdoor environments, these pins resist rusting. They're strong enough to fasten most components but won't withstand stress and vibration as well as steel.

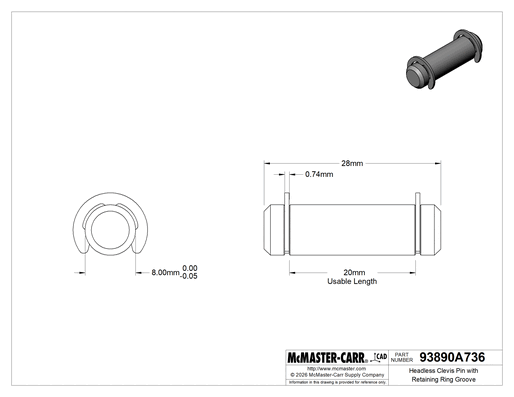

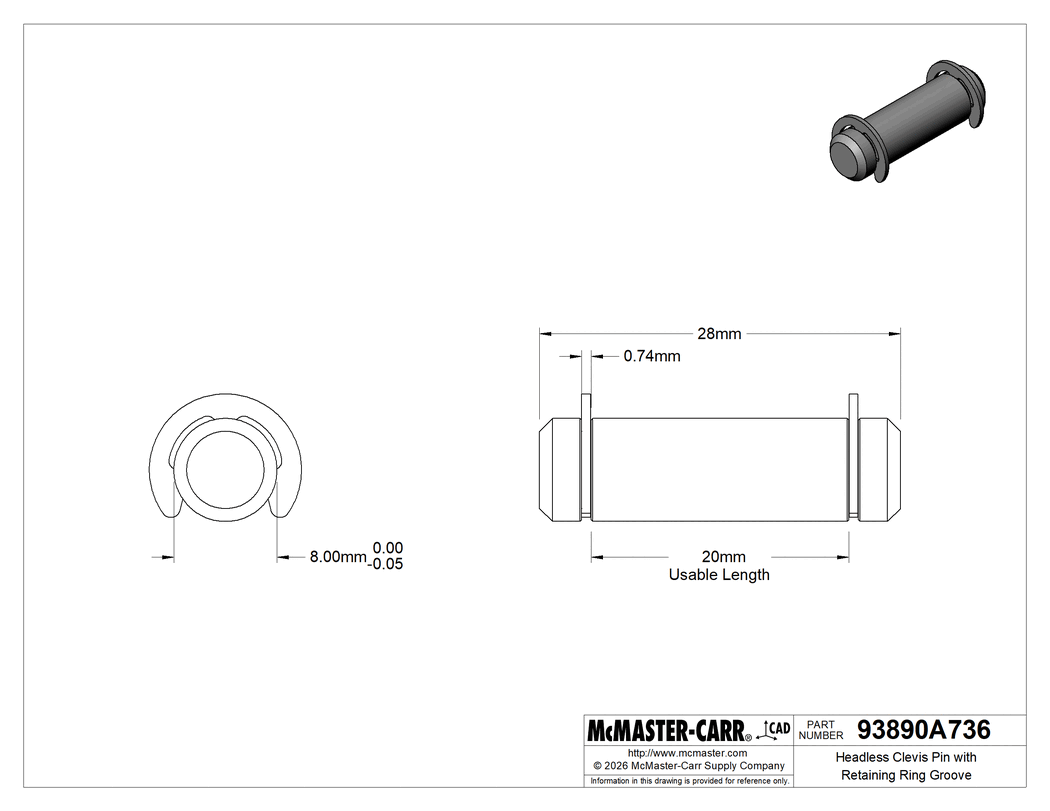

The information in this 3-D model is provided for reference only.
