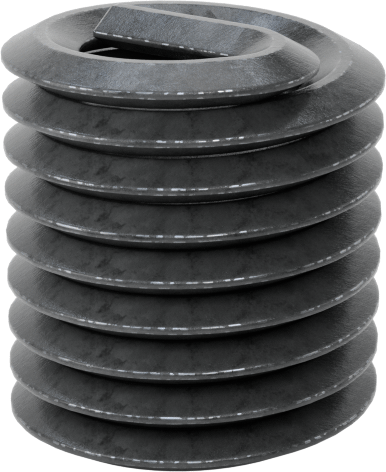

Helical Insert
Lubricated 18-8 Stainless Steel, M5 x 0.8 mm Thread Size, 7.5 mm Long
Threaded Insert Type | Helical |
Helical Insert Type | Pronged |
Profile | Standard |
Lubricant Type | Dry Film |
Material | 18-8 Stainless Steel |
Thread Size | M5 |
Thread Pitch | 0.8 mm |
Installed Length | 7.5 mm |
Drill Bit Size | 5.3 mm |
For Maximum Hole Diameter | 5.3 mm |
End Type | Open |
For Minimum Material Thickness | 7.5 mm |
For Tap Type | Helical |
For Use In | Dissimilar Metals, Aluminum, Magnesium, Stainless Steel, Steel |
Passivation | Unpassivated |
Performance | Seize Resistant |
System of Measurement | Metric |
Tensile Strength | 200,000 psi |
Thread Direction | Right Hand |
Thread Spacing | Coarse |
Thread Type | Metric |
Threaded Insert Securing Type | External Thread |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |
Skip the primer. These inserts are coated to resist galvanic corrosion when used with aluminum or magnesium. The coating also prevents the screw from sticking or binding during installation. Also known as Heli-Coil inserts.
Installation requires a drill bit, a helical insert tap, and an installation tool.
Pronged—The prong attaches to an installation tool for precise control as you drive inserts in. Remove the prong with a punch or break-off tool before inserting a screw.
Dry-Film-Lubricated 18-8 Stainless Steel—The choice for wet and outdoor environments, these inserts resist rust and mild chemicals.

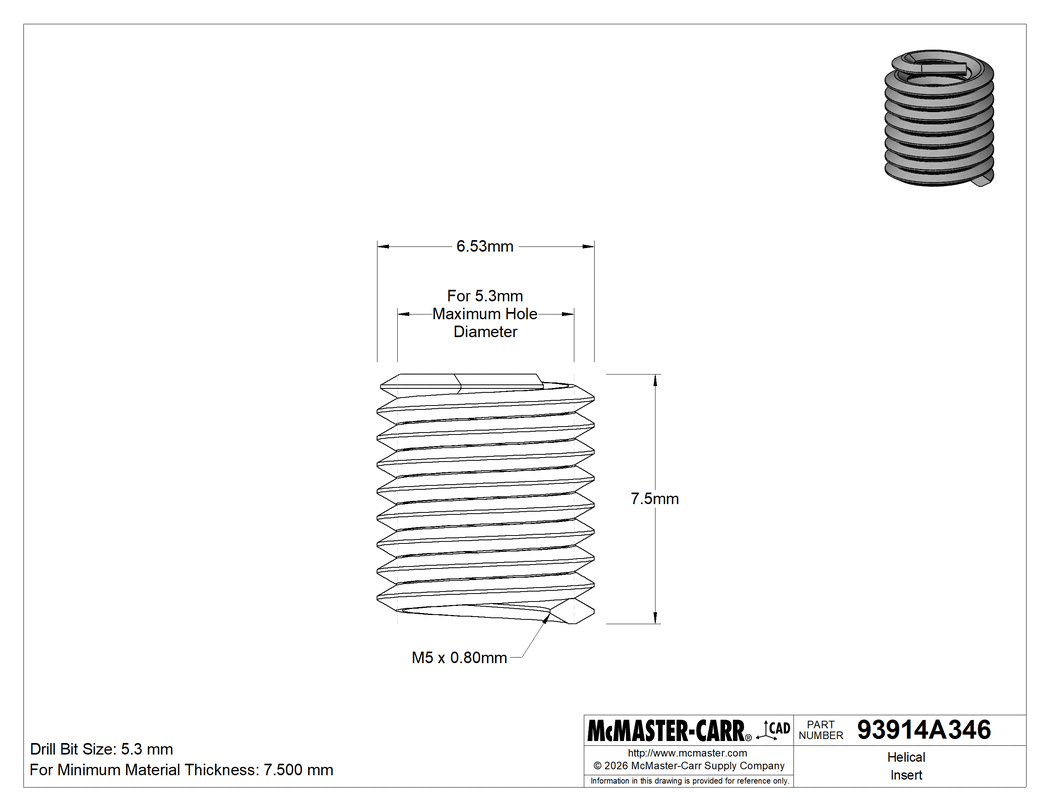

The information in this 3-D model is provided for reference only.
