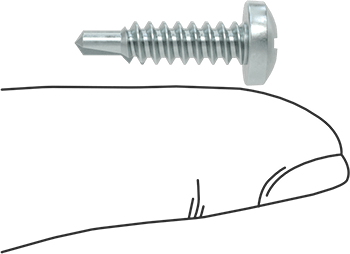

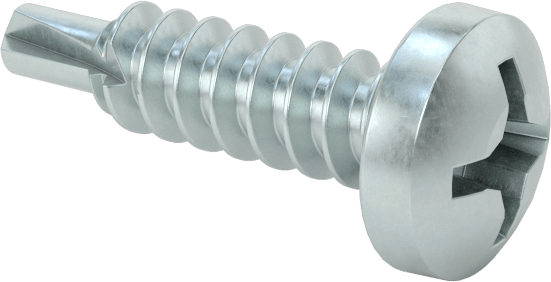

Phillips Rounded Head Drilling Screws
Zinc-Plated Steel, Number 10 Size, 3/4" Long

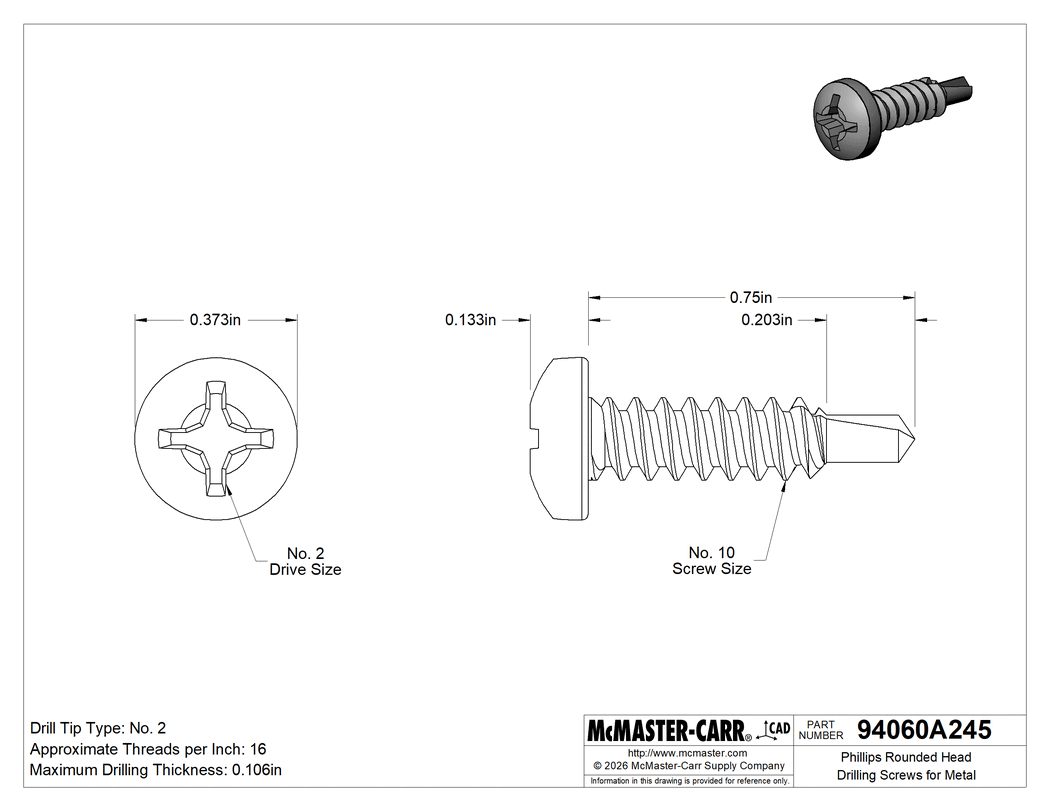

2-D PDF
00000 per pack of 100
94060A245
In stock
94060A245
00000 per pack of 100
Pack of 100
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Drive Style | Phillips |
Fastener Head Type | Rounded |
Drill Tip | |
Point Size | No. 2 |
Length | 13/64" |
Type | Drilling |
Tapping Method | Thread Forming |
Rounded Head Style | Pan |
Material | Zinc-Plated Steel |
Screw Size | No. 10 |
Length | 3/4" |
Head | |
Diameter | 0.373" |
Height | 0.133" |
Maximum Drilling Thickness | 0.106" |
Tapping Screw Type | BSD |
Drive Size | No. 2 |
Approximate Threads per Inch | 16 |
For Use In | Metal, Sheet Metal, Steel |
Rounded Head Profile | Standard |
Screw Size Decimal Equivalent | 0.19" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Drill and fasten metal in one step and create a finished look with these rounded head screws. The Phillips drive withstands less torque than a hex drive, so apply even, steady pressure when drilling.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
