    High-Temperature Graphite Gasket

    with Bolt Holes, for 6 Pipe Size, ANSI Class 150

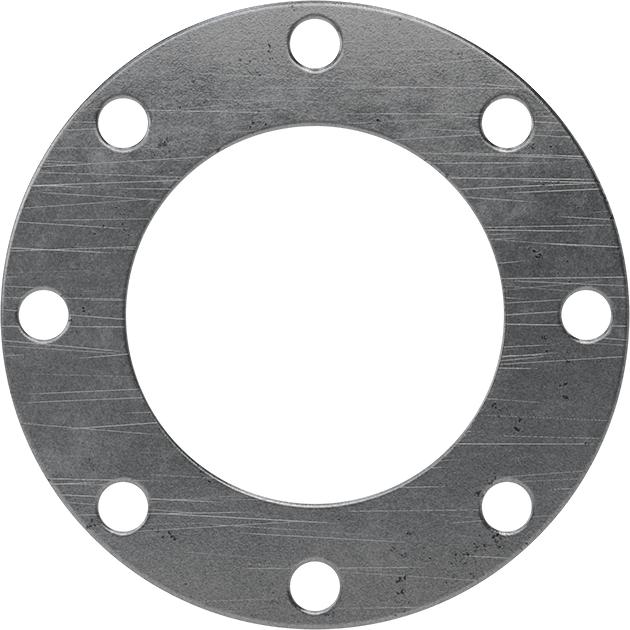

    Image of Product. Front orientation. High-Temperature Graphite Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.

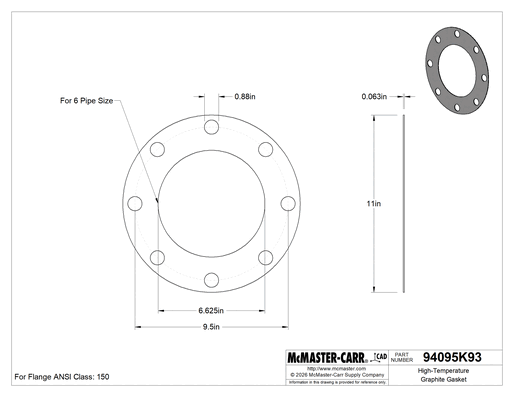

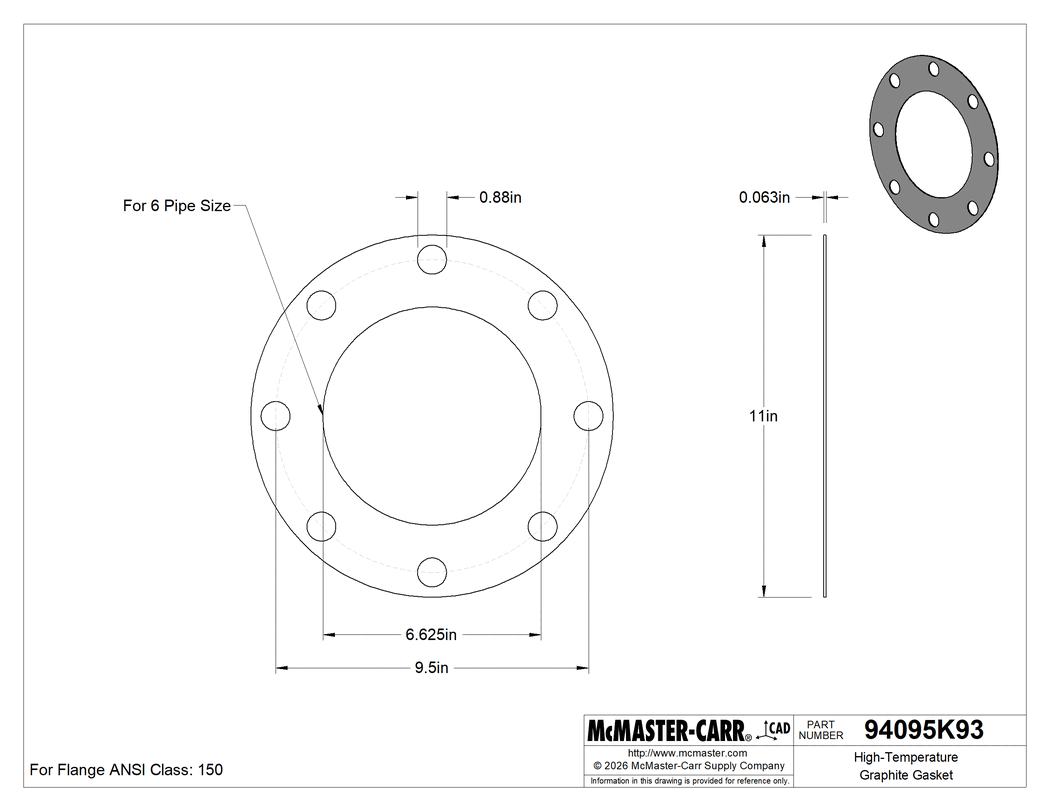

    Technical Drawing of High-Temperature Graphite Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    Image of Product. Front orientation. High-Temperature Graphite Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    Image of ProductInUse. Front orientation. High-Temperature Graphite Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.

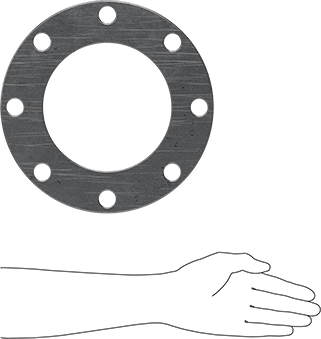

    Image of Product. Side1 orientation. Contains SizingReference. High-Temperature Graphite Gasket, with Bolt Holes, for 6 Pipe Size, ANSI Class 150.
    2-D PDF
    000000 each
    94095K93
    In stock
    94095K93
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Backing Type

    Plain

    For Flange Standard

    ANSI

    For Flange ANSI Class

    150

    Thickness

    1/16"

    For Pipe Size

    6

    ID

    6 5/8"

    OD

    11"

    Number of Bolt Holes

    8

    Maximum Pressure

    1,000 psi

    Temperature Range

    -325° F to 750° F

    Color

    Gray

    Insert Material

    Stainless Steel

    Material

    Graphite

    Performance

    High Temperature

    Shape

    Ring with Bolt Holes

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848410.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Able to withstand temperatures up to 750° F, these graphite gaskets have a stainless steel insert for strength to handle pressure up to 1,000 psi. Commonly called full-face gaskets, they cover the entire face of flat-surface pipe flanges and align with the bolt holes. All gaskets are sized to meet ANSI standards.

    For ANSI Class 150—Gaskets for ANSI Class 150 flanges are compatible with low-pressure pipe flanges.

    The information in this 3-D model is provided for reference only.
