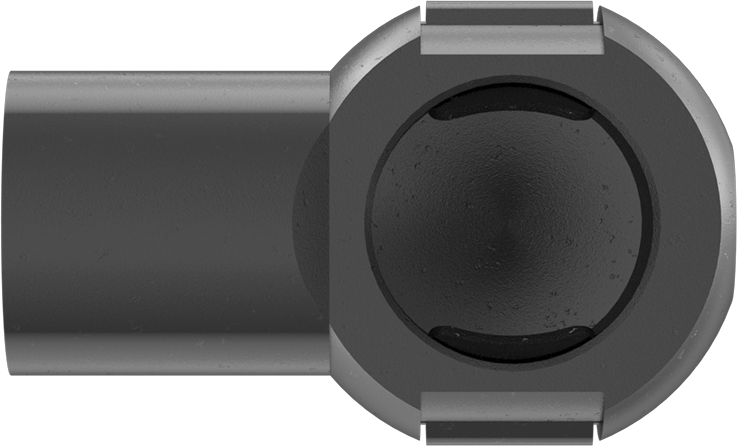

Gas Spring End Fitting
Snap-on Ball Socket, Zinc-Plated Steel, M6 Thread Size, 0.43" Wide
Material | Zinc-Plated Steel |
Thread Size | M6 × 1 mm |
ID | 10 mm |
For Ball Diameter | 10 mm |

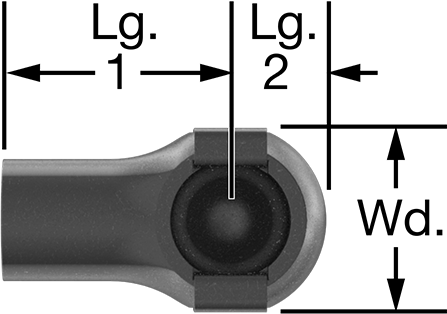

Lg. 1 | 0.71" |
Lg. 2 | 0.31" |
Width | 0.43" |
Gender | Female |
Color | Black |
Country of Origin | South Korea |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These end fittings snap right on a ball stud—an integral retaining clip grips the ball stud for secure attachment until you apply enough force to pop it off. Thread these ball socket end fittings onto gas springs. They rotate in any direction on a ball stud to compensate for misalignment. End fittings require a ball stud or ball stud mounting bracket (sold separately) to mount gas springs.
Select end fittings with a thread size that matches the rod and end thread sizes of your gas spring. The fittings will increase your gas spring's extended and compressed lengths, so add the Length 1 value for each fitting you attach.
Zinc-Plated Steel—Zinc-plated steel fittings are stronger than glass-filled nylon fittings—it takes more force to accidentally dislodge them. They’re heavier, though, and more likely to corrode over time as the plating wears down.

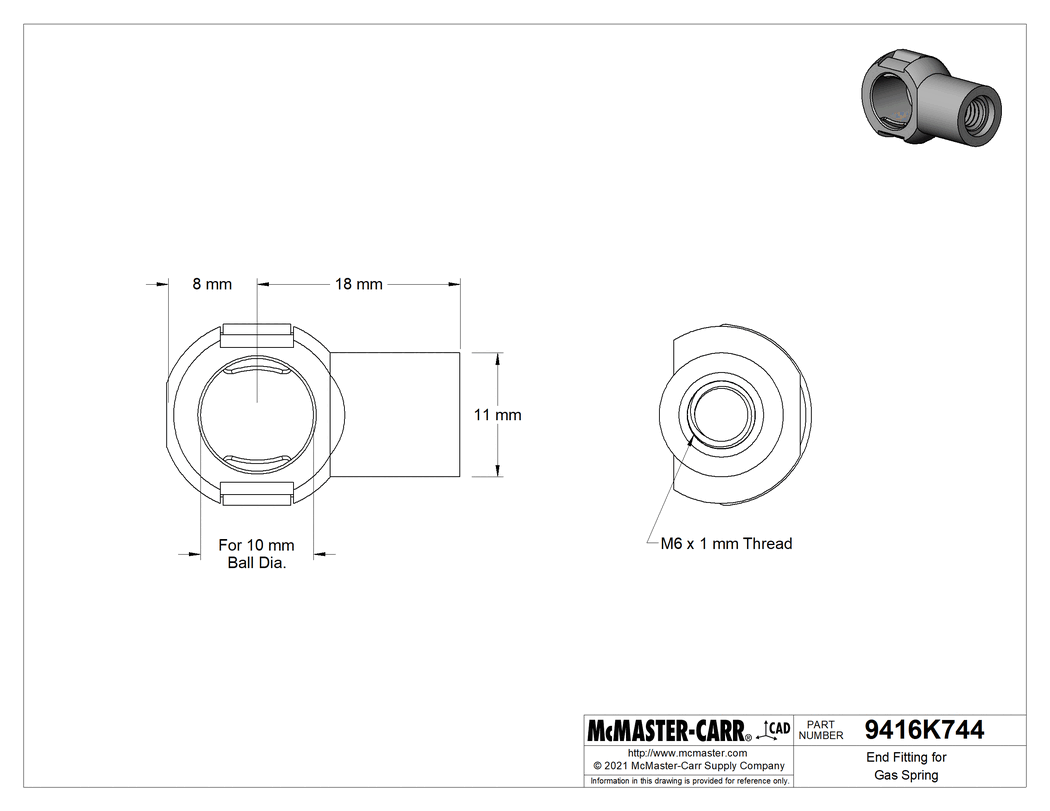

The information in this 3-D model is provided for reference only.
