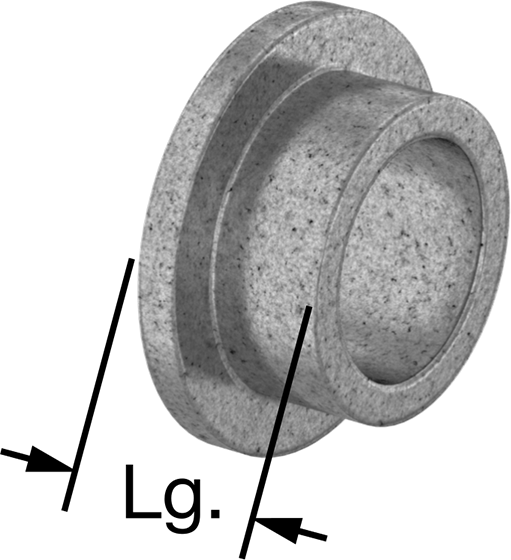

High-Temperature 841 Bearing Bronze Flanged Sleeve Bearing
Graphite-Lubricated, for 3/8" Shaft Diameter, 1/4" Long

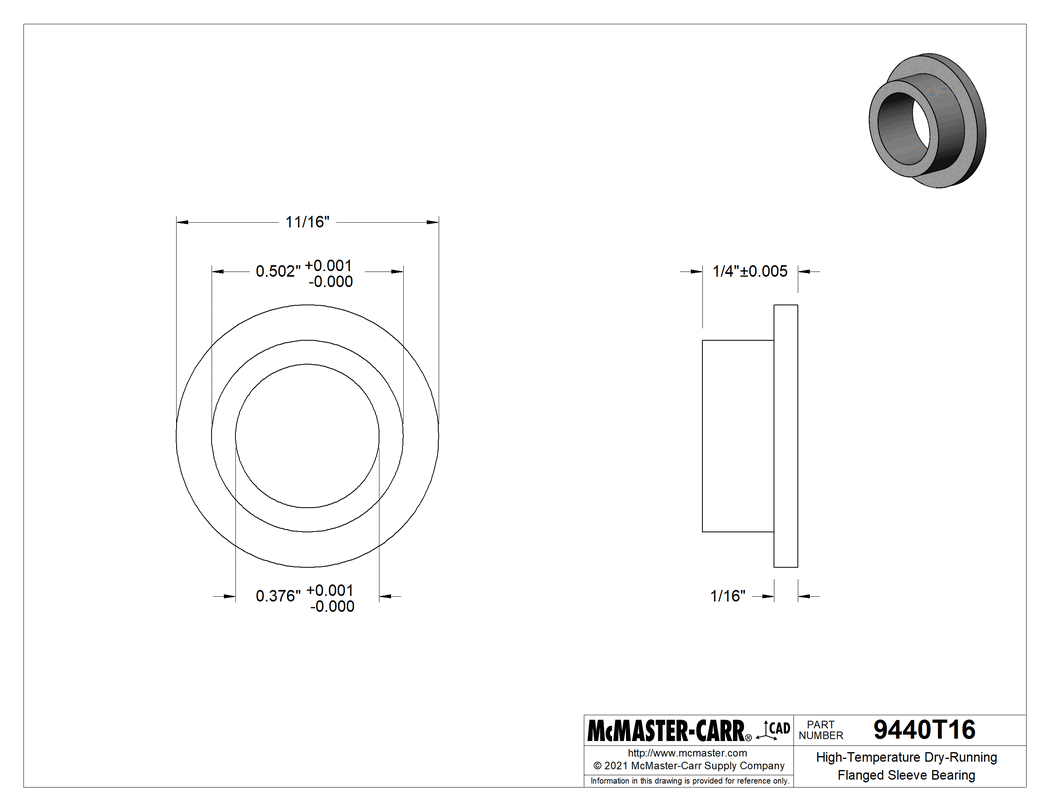

2-D PDF
00000 each
9440T16
In stock
9440T16
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Lubrication | Lubricated |
Performance | Corrosion Resistant, High Temperature |
Material | 841 Bearing Bronze |
For Shaft Diameter | 3/8" |
For Housing ID | 1/2" |
Length | 1/4" |
Length Tolerance | -0.005" to 0.005" |
Flange OD | 11/16" |
Flange Thickness | 1/16" |
Dynamic Radial Load Capacity @ Speed | 150 lb. @ 120 rpm |
Dynamic Thrust Load Capacity @ Speed | 410 lb. @ 120 rpm |
Temperature Range | -50° F to 700° F |
Bearing Type | Plain |
For Load Direction | Combined Radial and Thrust |
For Shaft Type | Round |
ID | 0.376" |
ID Tolerance | 0" to 0.001" |
Lubricant | Graphite |
Lubrication Method | Embedded |
OD | 0.502" |
OD Tolerance | 0" to 0.001" |
P Max | 1,600 psi |
Plain Bearing Type | Flanged Sleeve |
PV Max | 40,000 |
Shaft Mount Type | Slip Fit |
System of Measurement | Inch |
V Max | 1,000 sfpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
841 Bearing Bronze—A classic choice for a starter pick. Also known as SAE 841 bearings.
Compatible Products for This Flanged Sleeve Bearing
Secure
Align and center
Reduce friction
