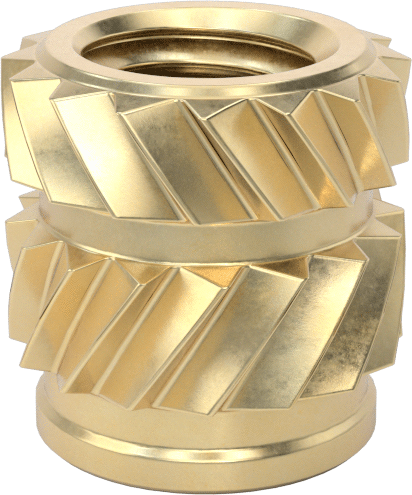

Heat-Set Inserts for Plastic
Brass, M4 x 0.7 mm, 6.4 mm Installed Length
Threaded Insert Type | Heat Set |
Profile | Standard |
Material | Brass |
Thread Size | M4 |
Thread Pitch | 0.7 mm |
Installed Length | 6.4 mm |
Drill Bit Size | 7/32" |
For Maximum Hole Diameter | 5.6 mm |
End Type | Open |
For Minimum Material Thickness | 7.1 mm |
For Use In | Plastic |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
System of Measurement | Metric |
Tensile Strength | Not Rated |
Thread Direction | Right Hand |
Thread Fit | Metric Class 6H |
Thread Spacing | Coarse |
Thread Type | Metric |
Threaded Insert Securing Type | Knurled |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 741539.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Products | |
Create a secure base for fasteners in plastic, including brittle 3D printed parts. Press these inserts into straight holes that have been drilled, printed, or molded into plastic. Then, heat them with a soldering tip to melt the surrounding material. As the plastic cools, it fuses to the sharp, diagonal ridges around the inserts, which prevents them from being twisted or pulled out. The interior is fully threaded, so you can access the threads from both sides of a through hole. Also known as Chevron and headed inserts.
Brass—Conductive and nonmagnetic, these inserts are useful for electrical applications. They resist moisture but aren't as strong as steel inserts.

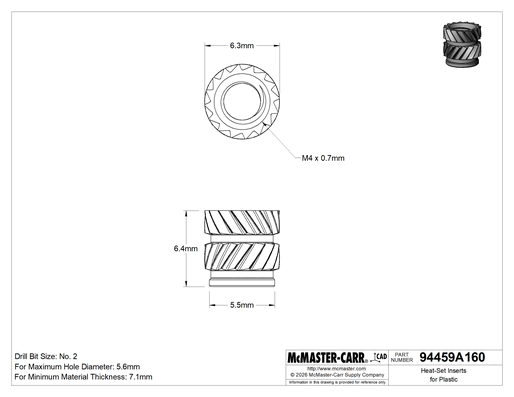

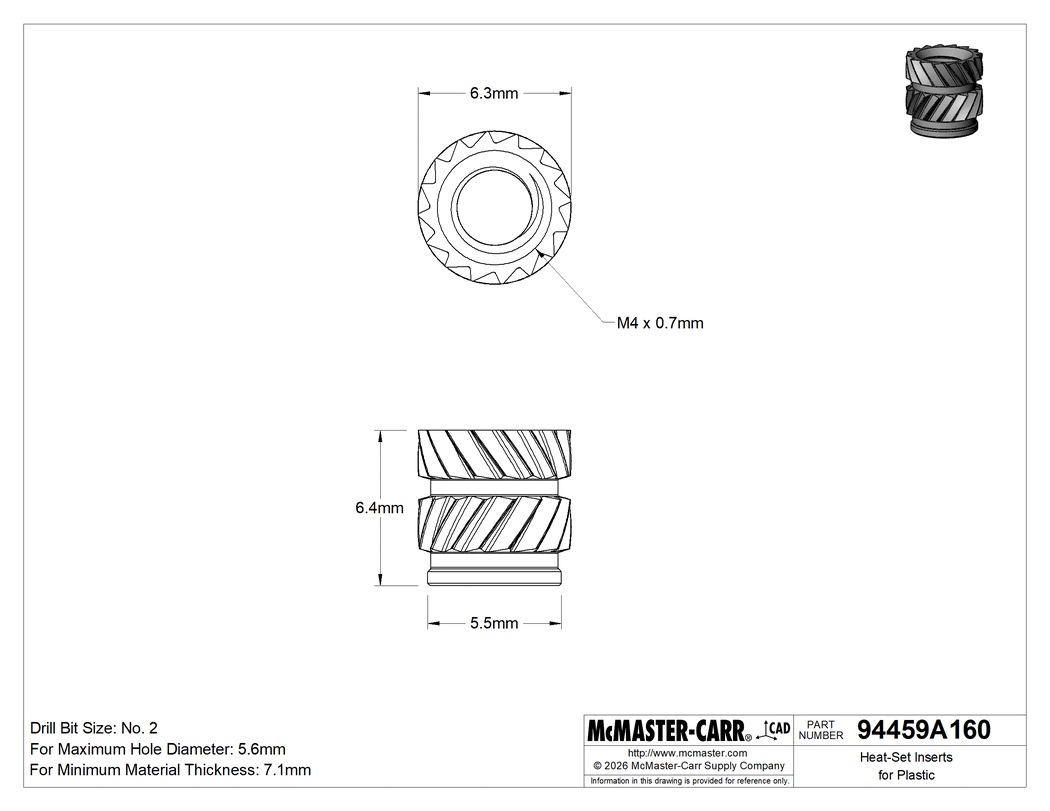

The information in this 3-D model is provided for reference only.
