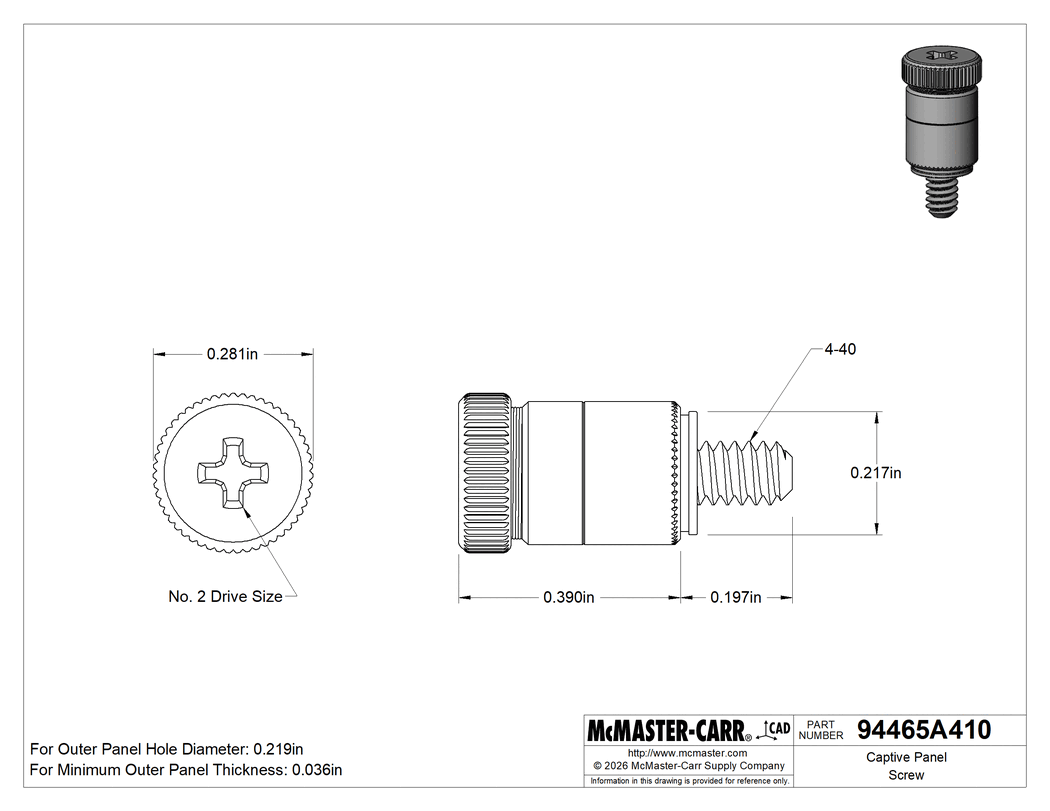

Captive Panel Screw
Press-Fit, 18-8 Stainless Steel Body, 4-40 Thread Size,.197" Long
2-D PDF
00000 each
94465A410
In stock
94465A410
1-99 each00000
100 or more00000
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Body Material | 18-8 Stainless Steel |
Thread Size | 4-40 |
Drive Style | Phillips |
For Minimum Outer Panel Thickness | 0.036" |
For Outer Panel Hole Diameter | 0.219" |
Length | 0.197" |
Head | |
Diameter | 0.281" |
Height | 0.39" |
Screw Material | 430 Stainless Steel |
Head Material | 430 Stainless Steel |
Drive Size | No. 2 |
Captive Panel Screw Type | Threaded |
Fastener Head Type | Thumb |
Head Texture | Knurled |
Screw Size Decimal Equivalent | 0.112" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Spacing | Coarse |
Thread Type | UNC |
Thumb Screw Grip Style | Knurled Head |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Install in soft material such as aluminum and low-carbon steel at least 0.036" thick with an arbor press or similar pressure tool. Screws become a part of the panel when installed, so they won't fall out and get lost. They're often used with surface mount nuts.
18-8 Stainless Steel Body—18-8 stainless steel bodies provide good chemical resistance and may be mildly magnetic.
The information in this 3-D model is provided for reference only.
