    Rectangular Plugs

    Snap-in, for 2.73"-2.83" Long x 1.74"-1.83" Wide Inside

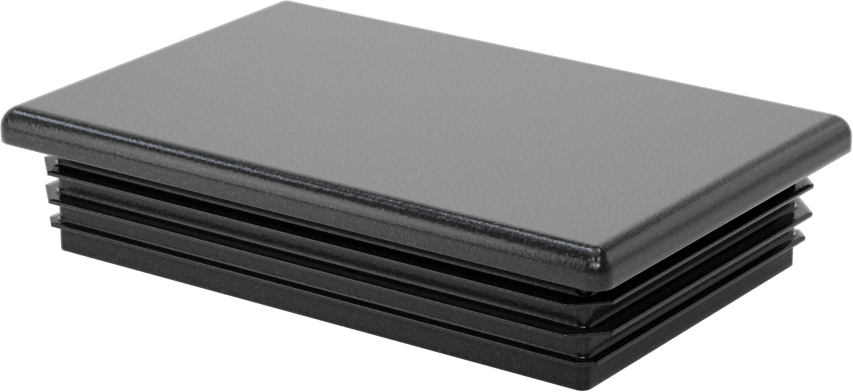

    Image of Product. Bottom orientation. Rectangular Plugs, Snap-in, for 2.73"-2.83" Long x 1.74"-1.83" Wide Inside.

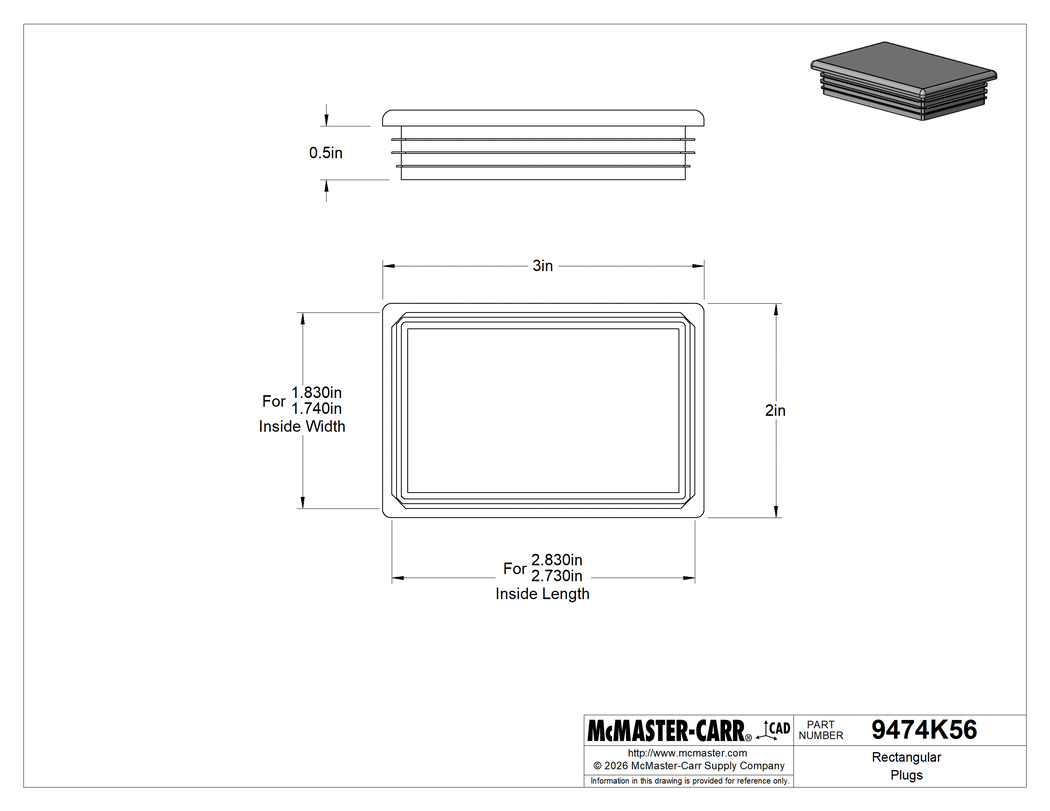

    Technical Drawing of Rectangular Plugs, Snap-in, for 2.73"-2.83" Long x 1.74"-1.83" Wide Inside.

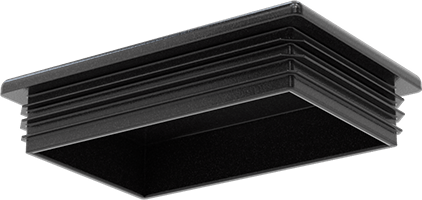

    Image of Product. Bottom orientation. Rectangular Plugs, Snap-in, for 2.73"-2.83" Long x 1.74"-1.83" Wide Inside.
    Image of Product. Side1 orientation. Contains SizingReference. Rectangular Plugs, Snap-in, for 2.73"-2.83" Long x 1.74"-1.83" Wide Inside.
    2-D PDF
    000000 per pack of 10
    9474K56
    In stock
    9474K56
    000000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Attachment Type

    Snap In

    For Shape

    Rectangle

    Material

    Polyethylene

    For Inside

    Length

    2.73" to 2.83"

    Width

    1.74" to 1.83"

    Height

    1/2"

    Head

    Length

    3"

    Width

    2"

    Maximum Temperature

    150° F

    Color

    Black

    For Use With

    Tubing

    Hardness

    Durometer 50D

    Performance

    Chemical Resistant

    Profile Shape

    Straight

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392350.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    For a tighter fit than push-in plugs, these have flexible ribs that grip a range of rectangular tubing sizes. They are good for semi-permanent installations, such as finishing the ends of posts, workstations, and furniture. To remove, you’ll need a tool such as a flat-head screwdriver to pop them out.

    Polyethylene—A balance of wear and chemical resistance for use in a variety of environments. These plugs withstand scratches and scrapes as well as mild acids, solvents, and chemical cleaners.

    The information in this 3-D model is provided for reference only.
