    Fully Threaded Black-Oxide Steel T-Slot Nut

    for 9/16" Slot Width, 1/2"-13 Thread Size, 1-1/8" Base Length

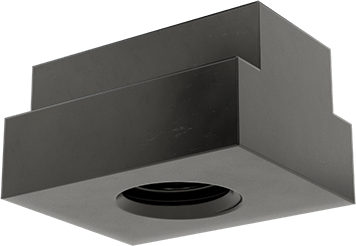

    Image of Product. Bottom orientation. Fully Threaded Black-Oxide Steel T-Slot Nut, for 9/16" Slot Width, 1/2"-13 Thread Size, 1-1/8" Base Length .

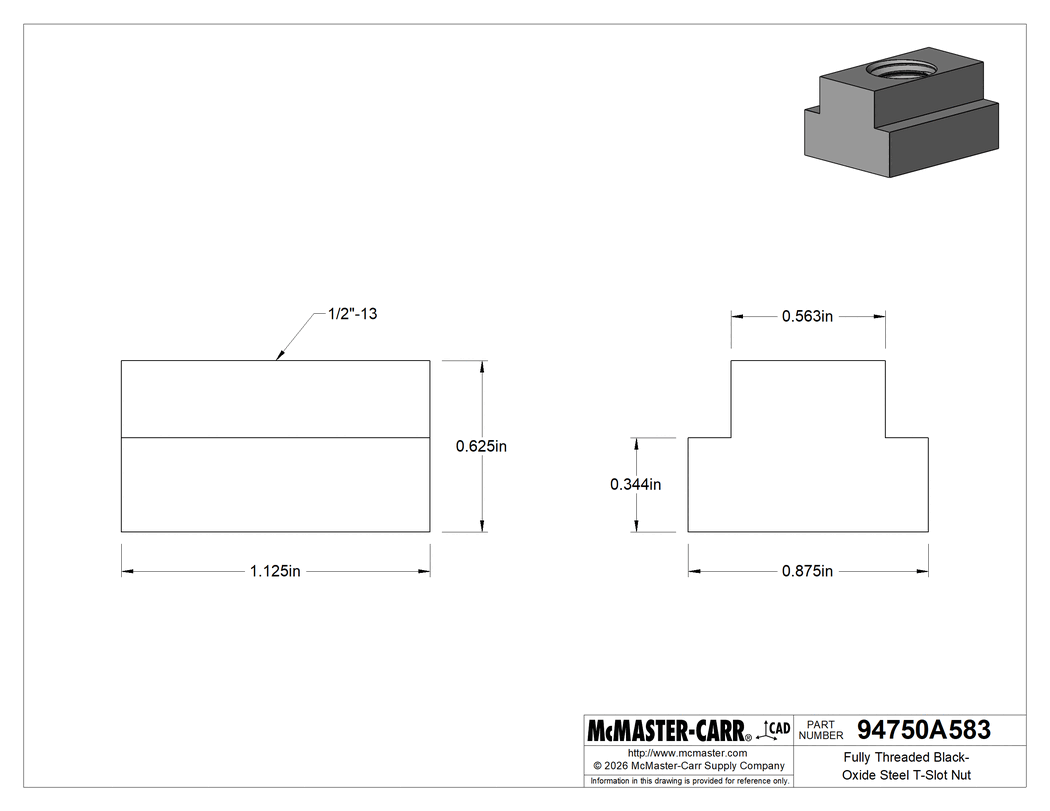

    Technical Drawing of Fully Threaded Black-Oxide Steel T-Slot Nut, for 9/16" Slot Width, 1/2"-13 Thread Size, 1-1/8" Base Length .

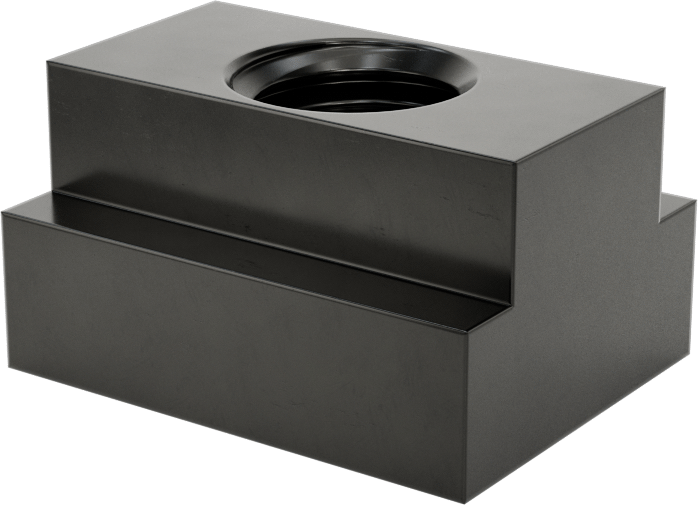

    Image of Product. Bottom orientation. Fully Threaded Black-Oxide Steel T-Slot Nut, for 9/16" Slot Width, 1/2"-13 Thread Size, 1-1/8" Base Length .

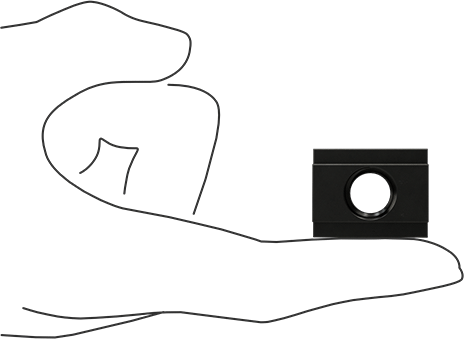

    Image of Product. Side1 orientation. Contains SizingReference. Fully Threaded Black-Oxide Steel T-Slot Nut, for 9/16" Slot Width, 1/2"-13 Thread Size, 1-1/8" Base Length .
    2-D PDF
    00000 each
    94750A583
    In stock
    94750A583
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    System of Measurement

    Inch

    Material

    Black-Oxide Steel

    Threading

    Fully Threaded

    For Slot Width

    9/16"

    Thread Size

    1/2"-13

    Base

    Length

    1 1/8"

    Width

    7/8"

    Height

    11/32"

    Overall Height

    5/8"

    Mounting Hole Type

    Threaded

    Thread Fit

    Unified Standard Class 2B

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731816.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Slide into T-slot tracks on machine tool tables to secure clamps and workpieces. These nuts are often paired with setup studs for adjustable fixtures.

    Black-Oxide Steel—Create a finished look with a dark, matte coating. These nuts offer minimal corrosion resistance, so they're best for dry environments.

    Fully Threaded—Fully threaded nuts allow a stud to extend beyond the bottom of the nut.
