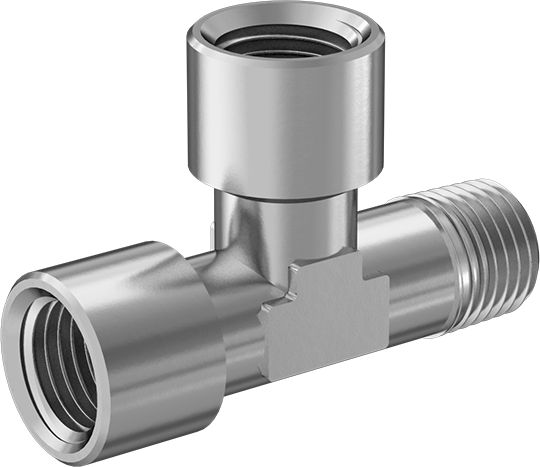

Medium-Pressure Plated Brass Threaded Pipe Fitting
Right-Angle Tee Adapter, 1/4 BSPP Female x BSPT Male

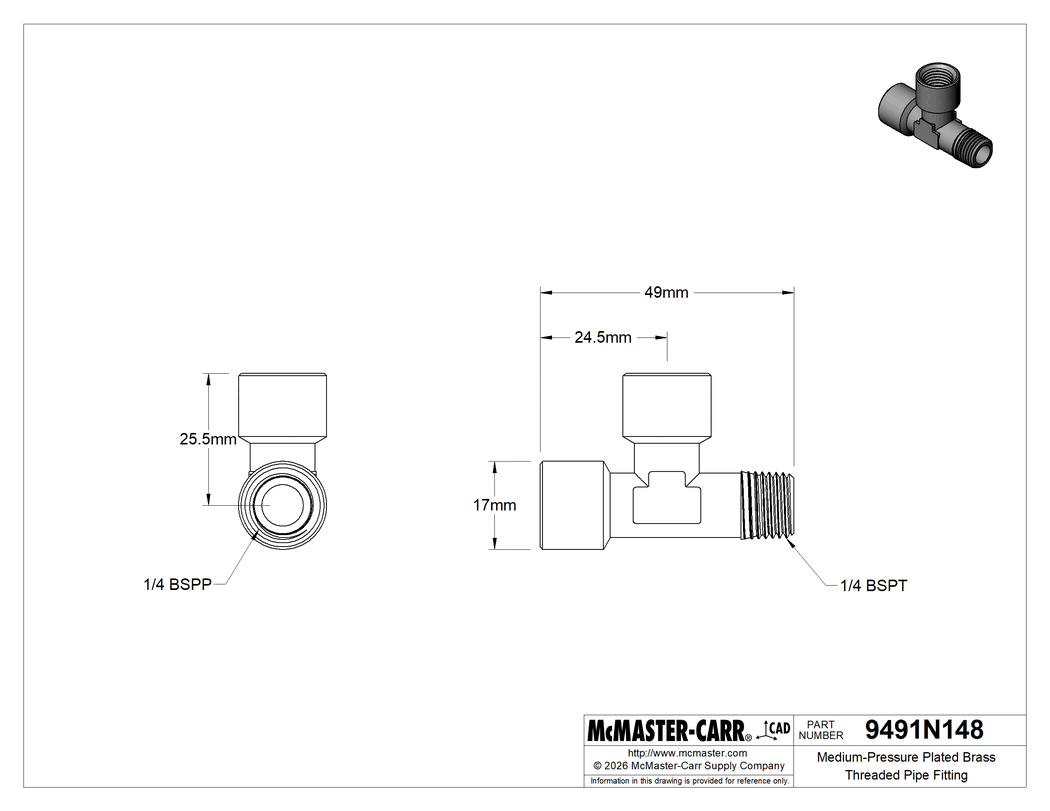

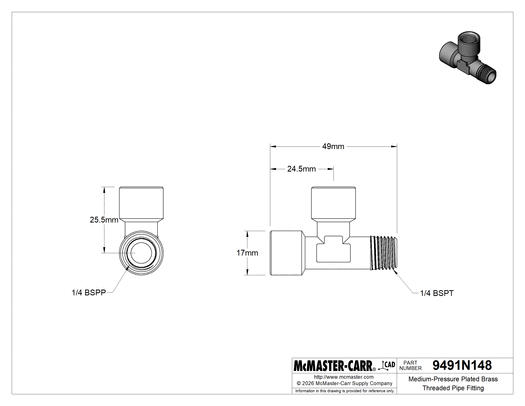

2-D PDF
00000 each
9491N148
In stock
9491N148
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Pressure Rating | Medium Pressure |
Tee Type | Right Angle |
Shape | Tee |
Fitting Type | Adapter |
Fitting Connection | BSPP Female × BSPT Male × BSPP Female |
Pipe Size | |
(A) | 1/4 |
(B) | 1/4 |
(C) | 1/4 |
Material | Nickel-Plated Brass |
Maximum Pressure @ Temperature | 500 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 500 psi @ 212° F |
Connects To | Pipe |
For Use With | Air, Oil, Steam, Water |
Maximum Vacuum @ Temperature | Not Rated |
Performance | Corrosion Resistant |
Temperature | -20° F to 212° F |
Country of Origin | Italy |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(a)-I, 6(b)-II, 6(c) |
Schedule B Number | 741220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Choose these fittings when you need better strength than our low-pressure brass and bronze pipe fittings. They offer good corrosion resistance.
Right Angle—Right-angle tees are also known as run tees.
Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.
The information in this 3-D model is provided for reference only.
