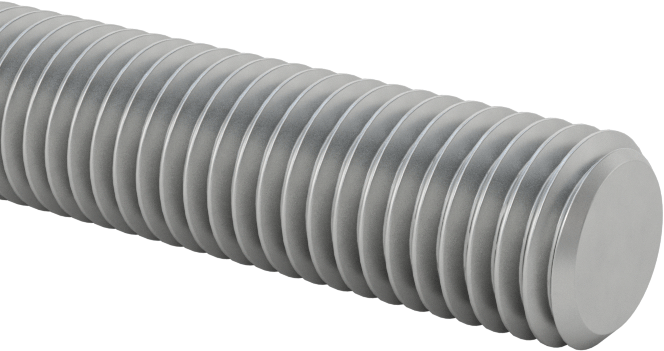

18-8 Stainless Steel Left-Hand Threaded Rod
1/4"-28 Thread Size, 3 Feet Long
2-D PDF
000000 each
95050A159
In stock
95050A159
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Thread Direction | Left Hand |
Sold As | Individual |
Thread Size | 1/4"-28 |
Length | 3 ft. |
Tensile Strength | 70,000 psi |
Hardness | Rockwell B70 |
Material | 18-8 Stainless Steel |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Fine |
Thread Type | UNF |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Turn these rods to the left to tighten. Use them with left-hand nuts to prevent counterclockwise-moving parts from loosening.
Stainless Steel—More corrosion resistant than steel rods and comparable in strength to low-strength steel.
18-8 Stainless Steel—The choice for wet and outdoor environments, these rods resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
Compatible Products for This Threaded Rod
Fastens with
Adheres with

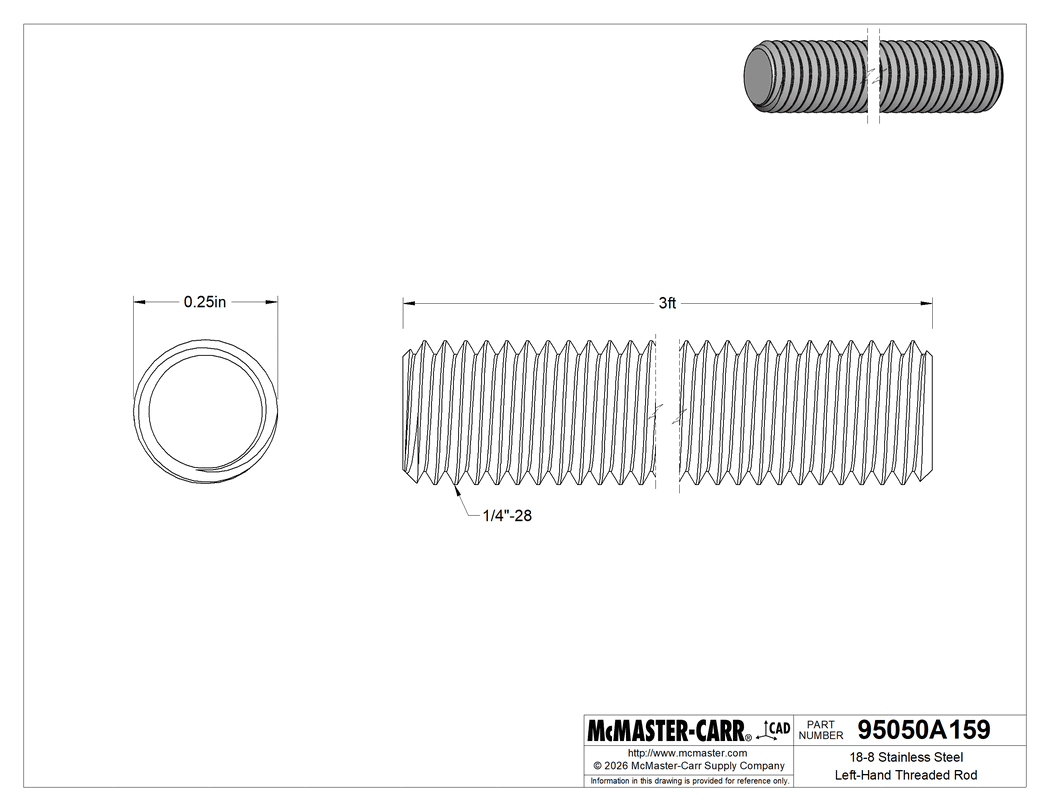

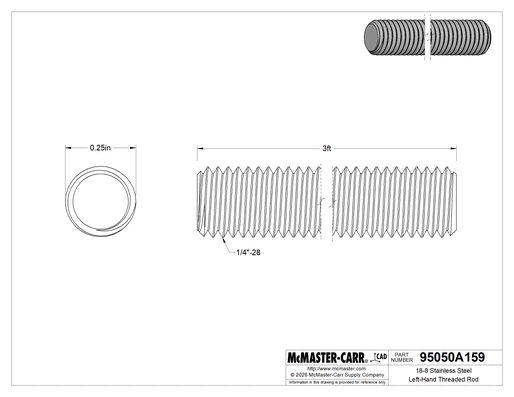

The information in this 3-D model is provided for reference only.
